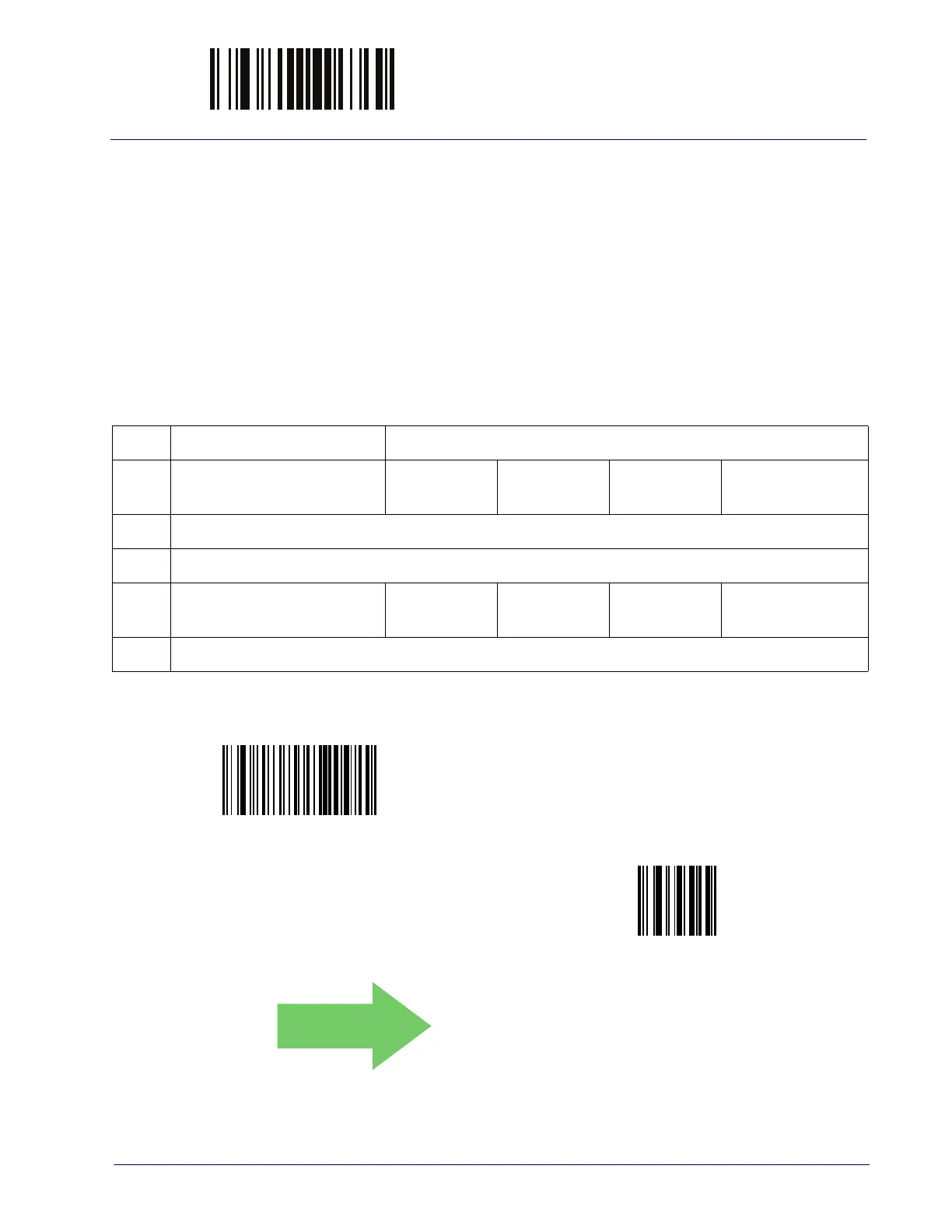

ENTER/EXIT PROGRAMMING MODE
Product Reference Guide
207
Codabar Set Length 2
This feature specifies one of the barcode lengths for Codabar Length Control.
Length 2 is the maximum label length if in Variable Length Mode, or the second
fixed length if in Fixed Length Mode. The length includes the barcode’s start,
stop, check and data characters. The len
gth must include at least one data
character.
The length can be set from 3 to 50 characte
rs. A setting of 0 specifies to ignore
this length (only one fixed length).
Table 17 provides examples for setting Length 2. See page 295 for detailed
instructions on setting this feature.
Table 17. Codabar Length 2 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (and pad
with leading ze
roes)
00 Ignore This
Length
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODABAR LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Codabar Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort
and not save the entry string. You can then start again
at the beginning.
CANCEL
DEFAULT
50 = Length 2 is 50 Characters
To Next Page
