Installing the Interface Cable
Product Reference Guide
19

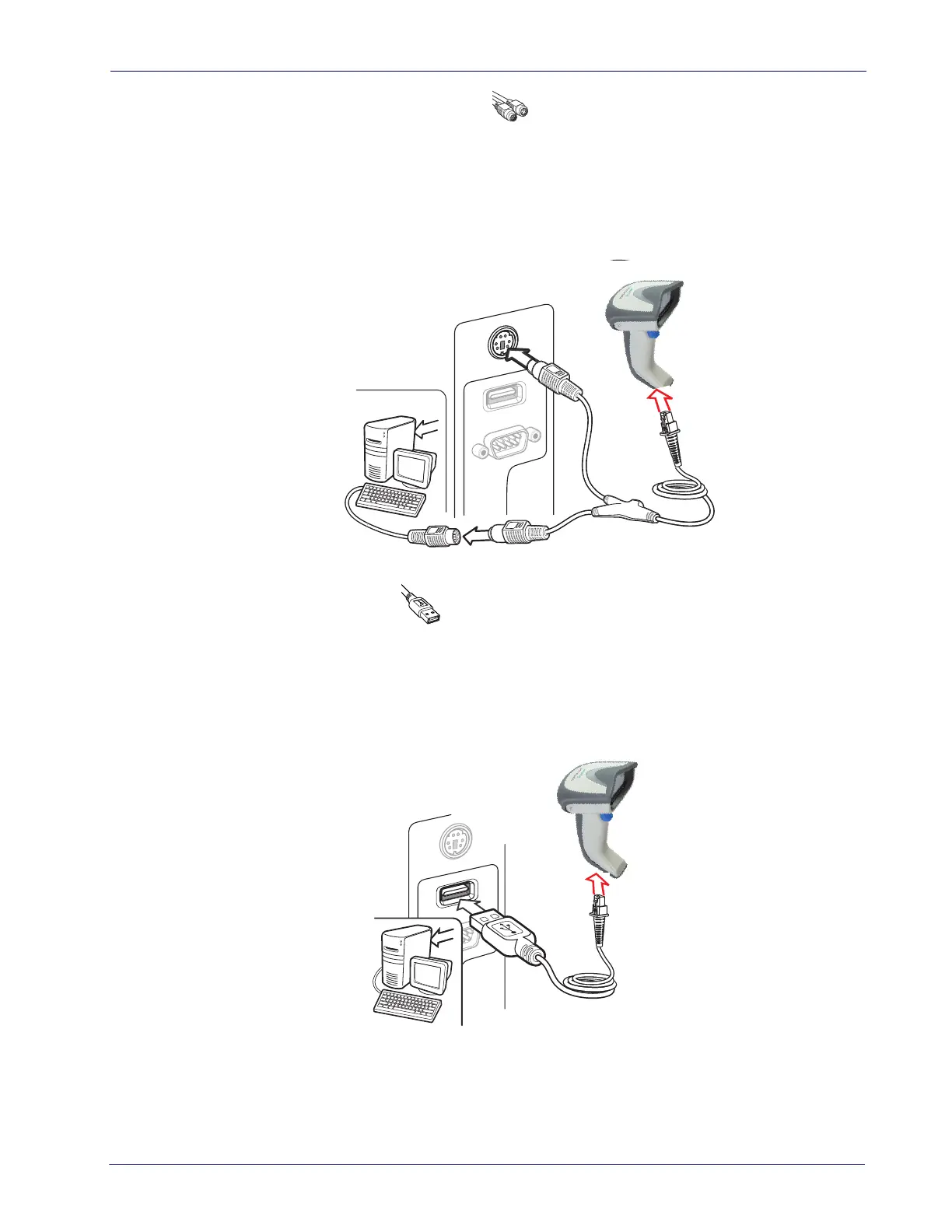

Keyboard Wedge Connection
The Keyboard Wedge cable
has a ‘Y’ connection from the reader. Connect the female to the male end from
the keyboard and the remaining end at the keyboard port at the terminal/PC.
Reference Figure 4.
Figure 4. Keyboard Wedge Interface connection
USB Connection
Connect the
reader to a USB port on the terminal/PC using the correct USB cable for the
interface type you ordered. Reference Figure 5.
Figure 5. USB connection
Other connection types are described below and illustrated in Figure 6.
