Gryphon™ I System and Network Layouts
Product Reference Guide
29

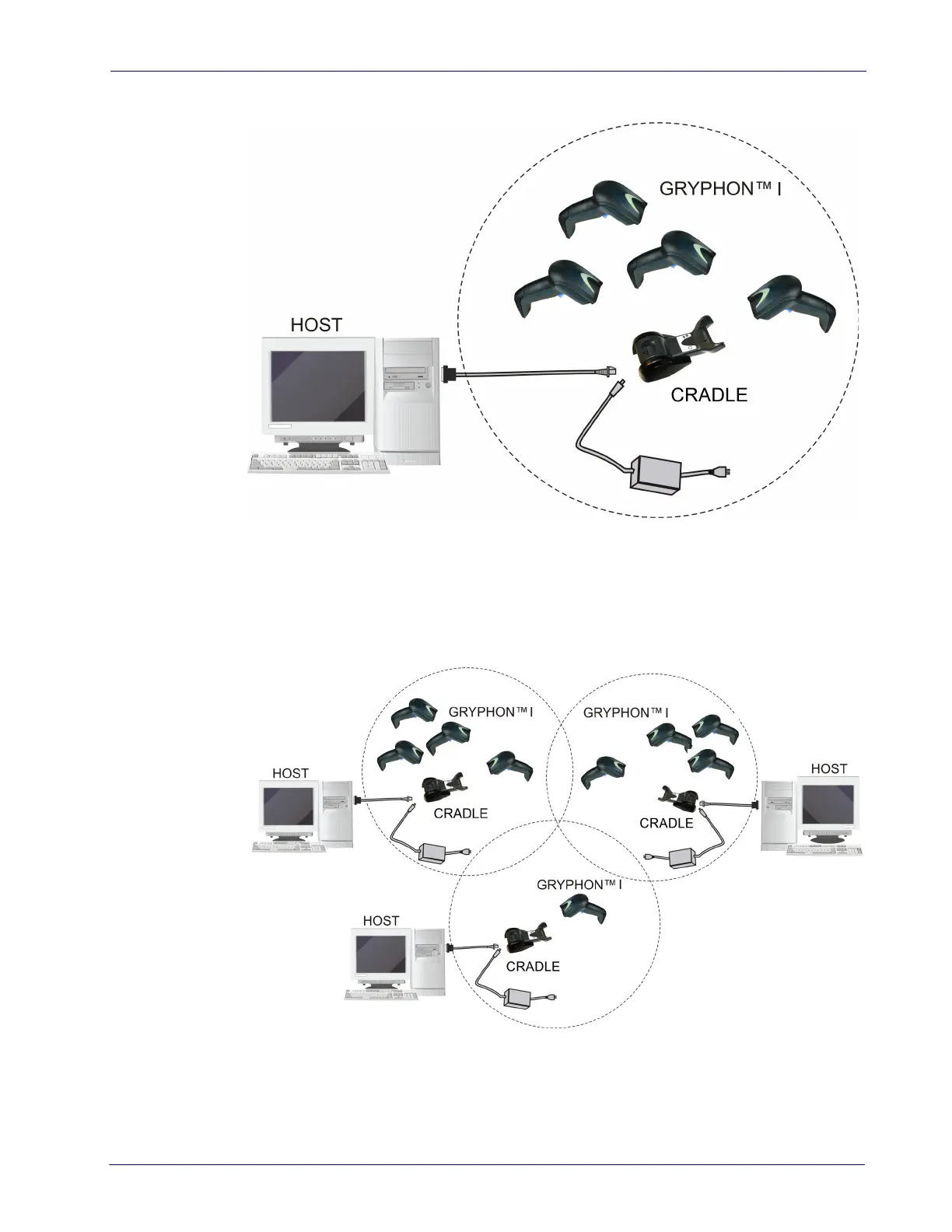

Figure 13 - Multiple Reader Layout
Gryphon M4102 only
(not valid for BT model)
In stand alone systems, each cradle is connected to a single Host.
Figure 14 - Multiple Stand Alone Layouts
Gryphon M4102 only
(not valid for BT model)
Many stand alone connections can operate in the same physical area without
interference, provided all readers and cradles in the system have different
addresses.
