Datalogic Gryphon Series User Manual

Introduction The BC40xx™ Radio Base
12 Gryphon™ I GD44XX / GBT4400/GM440X
The BC40xx™ Radio Base
Base LEDs
LEDs on the Gryphon Base provide information about the Base’s status, as shown in Figure 1.

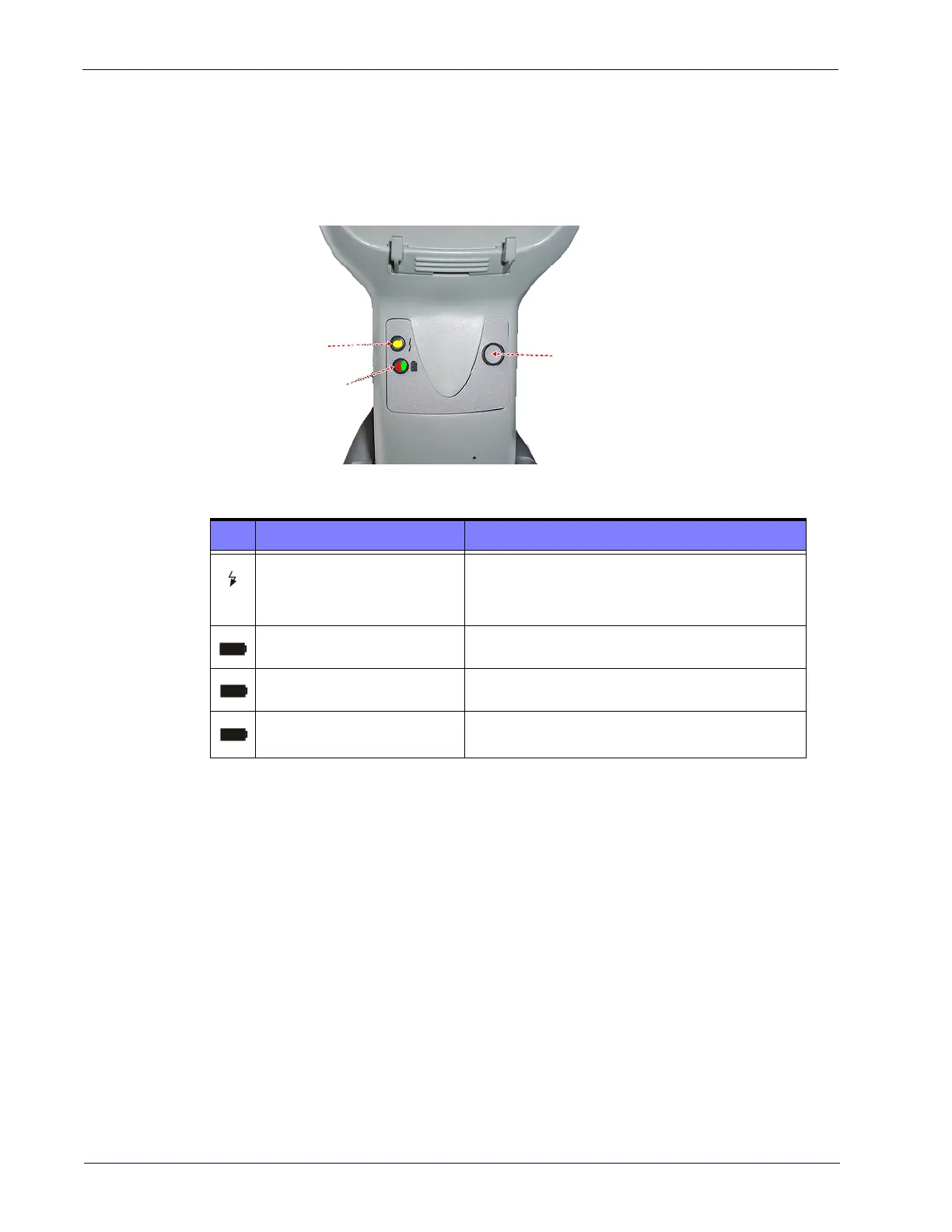

Figure 1. Gryphon Base LEDs
The following table describes the significance of each LED:
See Base Station Indications (Cordless Models ONLY) on page 300 for more specific details on the
LEDs.
Base Button
The Base contains a button which is used primarily to perform a paging function. Pressing the
button causes a sound signal to be emitted by all scanners linked with this Base, as long as the
scanner is awake (see Powerdown Timeout on page 248) and reception is enabled (see LED and
Beeper Indicators on page 92). The button can also be used to "force device connection" via the
Datalogic Aladdin Software tool (available for free download from the Datalogic website). See
the Aladdin
Online Help for details.
See "Base Station Button Indicators" on page 300 for further information on Base Button
functions.
LED STATUS
Power on / Data
Yellow On = Base is powered
Yellow Blinking = Base receives data and 
commands from the Host or the Reader.
Charging Red On = Battery charging is in progress.
Charge completed Green On = the Battery is completely charged.
Charging + Charge completed
Red and Green Blinking together =
the Reader is not
correctly placed onto the Base.
YELLOW LED
RED LED /
GREEN LED
BUTTON

Datalogic Gryphon Series Specifications

General

Connectivity	USB, RS-232, Keyboard Wedge, Bluetooth
Scan Pattern	Single-line or omnidirectional
Humidity	5% to 95% non-condensing
Decode Capability	1D and 2D barcodes
Ambient Light	Up to 100, 000 lux
