Datalogic Gryphon Series User Manual

Codabar Enter/Exit Programming Mode
Product Reference Guide 171
Codabar Set Length 1
This feature specifies one of the bar code lengths for Codabar Length ControlCodabar Length
Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed
length if in Fixed Length Mode. Length includes the bar code’s start, stop, check and data
characters. The length must include
at least one data character. The length can be set from 3 to
50 characters.
Table 13 provides some examples for setting Length 1. See page 265 for detailed instructions on
setting this feature.

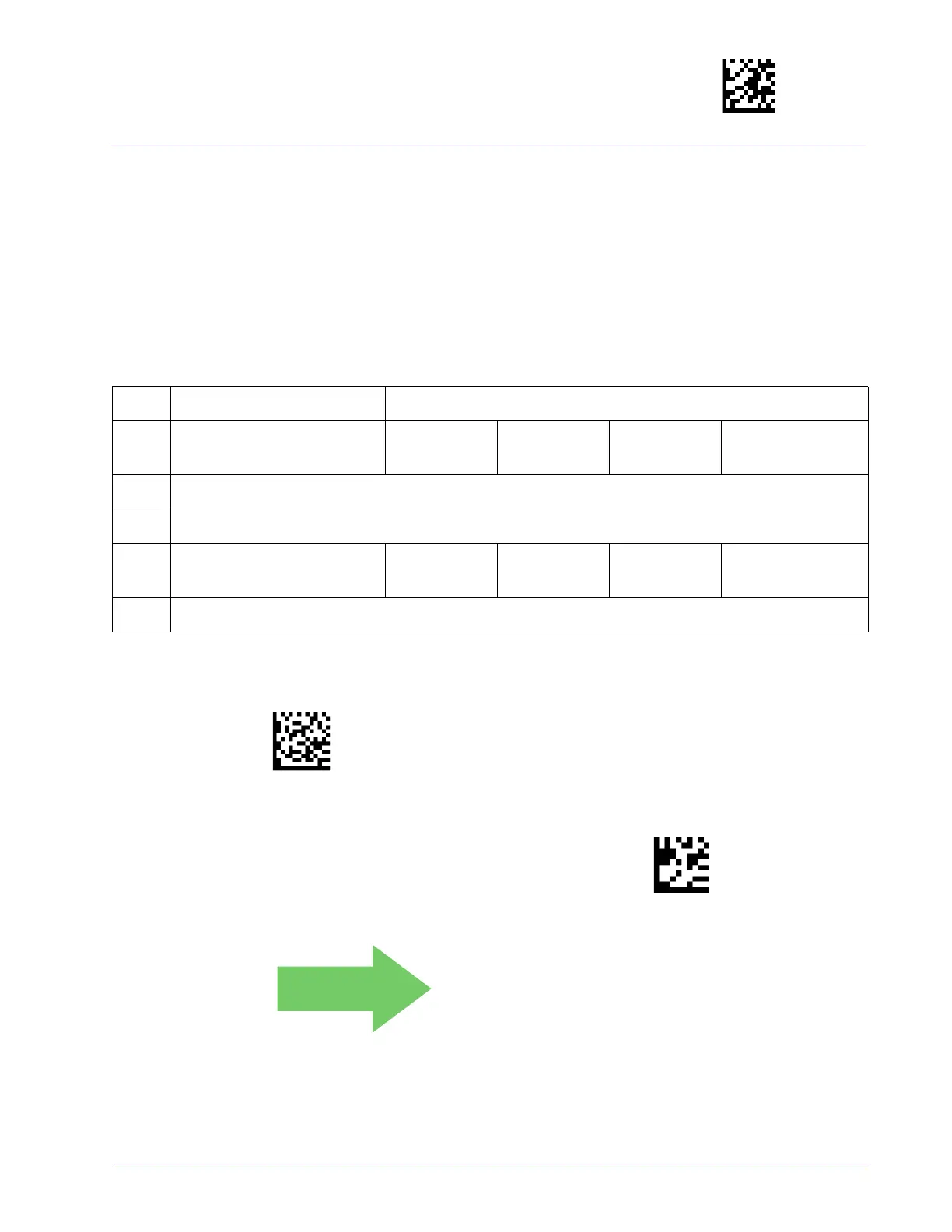

Table 13. Codabar Length 1 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (and pad
with le
ading zeroes)
03 Characters 09 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODABAR LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘3’ ‘0’ and ‘9’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Codabar Length 1 Setting
Make a mistake? Scan the CANCEL bar code to abort and
not save the entry string. You can then start again at the
beginning.
CANCEL
$CCBL1
~
DEFAULT
03 = Length 1 is 3 Characters
