Configuring the Base Station Setup
Product Reference Guide 21
Changing the Base Station Position
The base station is configured by installing one of two sets of mechanical parts that come with
the cordless kit. The default mounts (shown below) provide three options: vertical (wall)
mounting, standing (45°), or horizontal mounting with a higher mechanical retention of the
scanner. Use the other mounts only for horizontal mounting, with lower retention of the
scanner. The different parts may be interchanged to customize retention preferences.

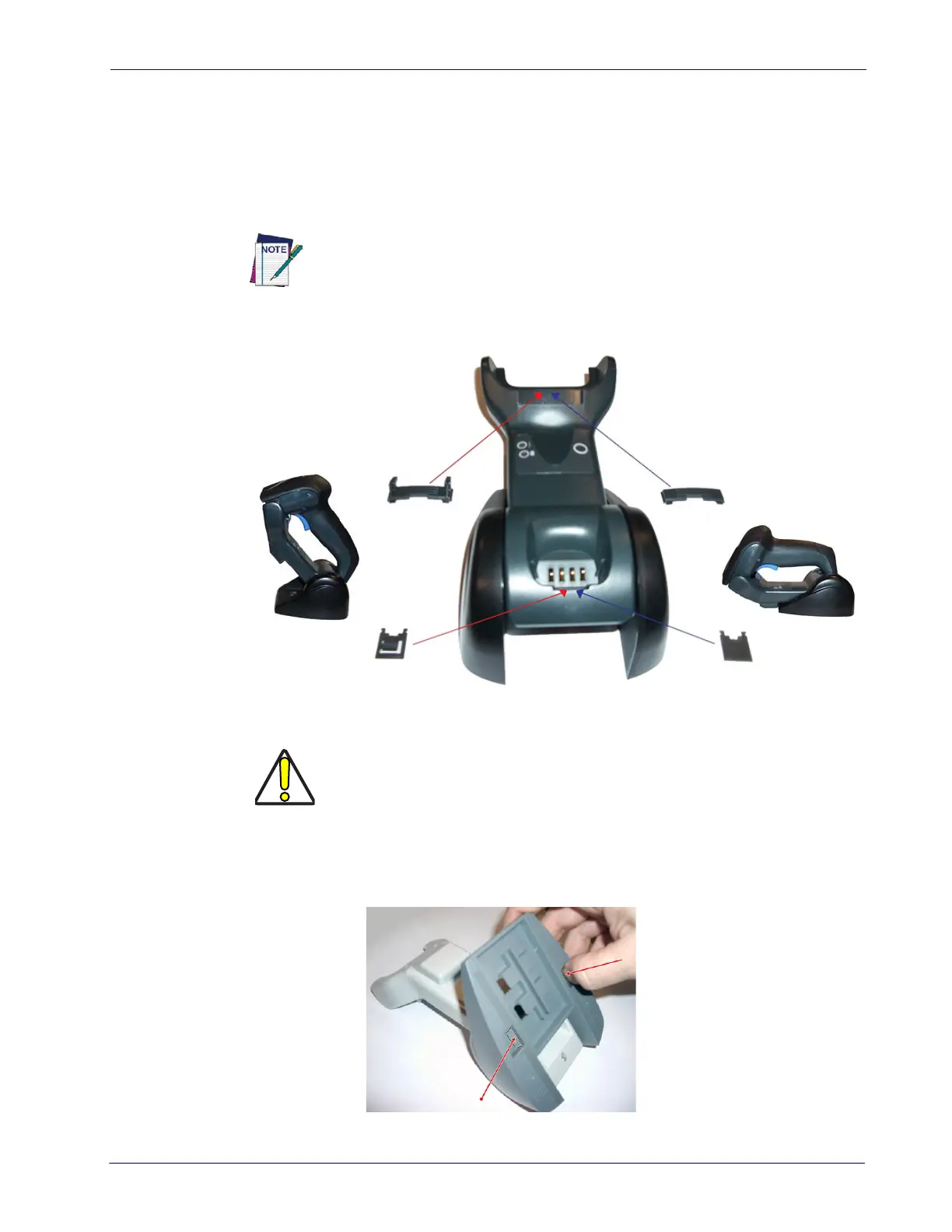

1. Insert the appropriate parts for the desired base station position, as shown below.
2. Using your thumbs, push open the plastic tabs on the bottom of the base to free the wing
hold
ers.
A tool such as a rigid pen or a flat screwdriver can be used to change the
mounts. Do not allow it to touch the contacts.
CAUTION
To ensure best contact and performance, do not intermix the parts of the two
different mount sets.
Standing,
Horizontal
or Vertical
Horizontal
ONLY
Tab
Tab

Datalogic Gryphon Series Specifications

General

Connectivity	USB, RS-232, Keyboard Wedge, Bluetooth
Scan Pattern	Single-line or omnidirectional
Humidity	5% to 95% non-condensing
Decode Capability	1D and 2D barcodes
Ambient Light	Up to 100, 000 lux
