Setup Installing the Interface Cable
18 Gryphon™ I GD44XX / GBT4400/GM440X
Installing the Interface Cable
For Corded versions, connect the reader cable by inserting the cable into the handle as shown in
Figure 2 . To remove it, insert a paper clip into the release aperture, then unplug the cable.

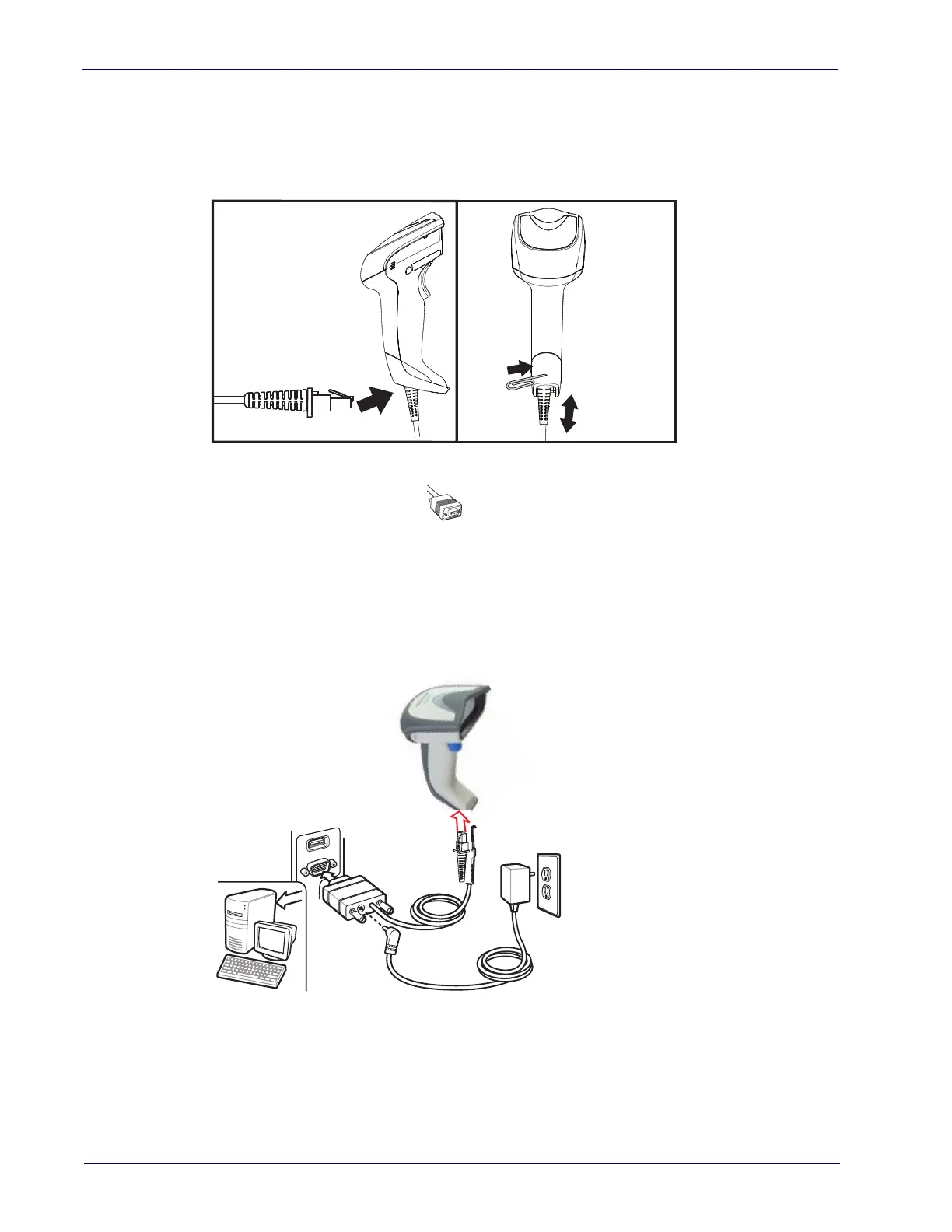

Figure 2. Connect/disconnect the cable
RS-232 Serial Connection
Turn off power to the terminal/PC and connect the reader to the terminal/PC serial port via the
RS-232 cable as shown in
Figure 3 . If the terminal will not support POT (Power Off the
Terminal) to supply reader power, use the app
roved power supply (AC Adapter). Plug the AC
Adapter barrel connector into the socket on the RS-232 cable connector and the AC Adapter
plug into a standard power outlet.
Figure 3. RS-232 Connection

Datalogic Gryphon Series Specifications

General

Connectivity	USB, RS-232, Keyboard Wedge, Bluetooth
Scan Pattern	Single-line or omnidirectional
Humidity	5% to 95% non-condensing
Decode Capability	1D and 2D barcodes
Ambient Light	Up to 100, 000 lux
