Datalogic Gryphon Series User Manual

Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 of 5)
156 Gryphon™ I GD44XX / GBT4400/GM440X
I 2 of 5 Set Length 2
This feature specifies one of the bar code lengths for I 2 of 5 Length Control. Length 2 is the
maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length
Mode. The length includes the bar code’s check and data characters.
The length can be set from 2 to 50 characters. A setting of
0 specifies to ignore this length (only
one fixed length).
Table 8 provides examples for setting Length 2. See page 265 for detailed instructions on setting
this feature.

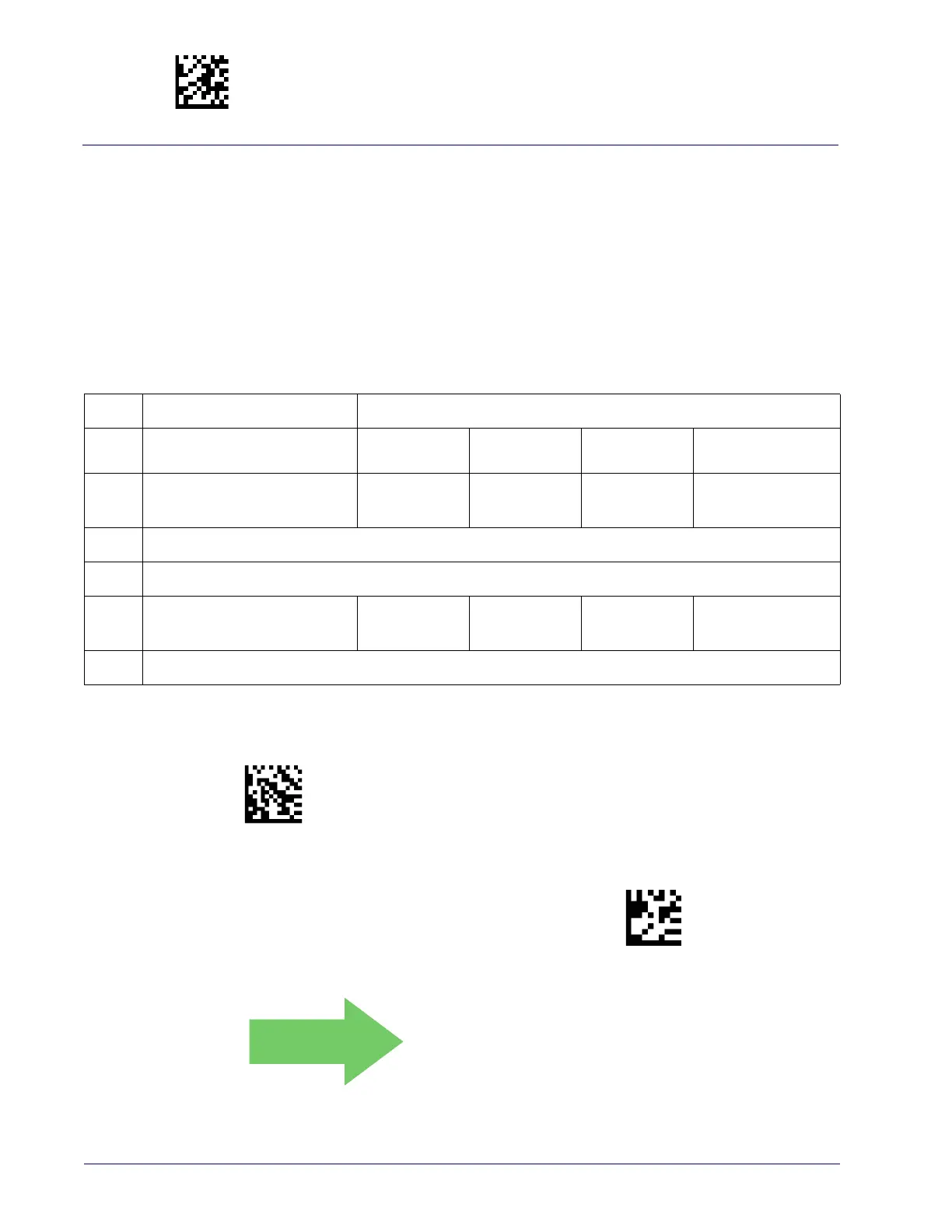

Table 8. I 2 of 5 Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
Ignore This
Length
4 Characters 14 Characters 50 Characters
2
Pad with leading zeroes to
yield tw
o digits
00 04 14 50
3 Scan ENTER/EXIT PROGRAMMING MODE
4 Scan SELECT I 2 OF 5 LENGTH 2 SETTING
5
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘4’ ‘1’ and ‘4’ ‘5’ AND ‘0’
6 Scan ENTER/EXIT PROGRAMMING MODE
Select I 2 of 5 Length 2 Setting
Make a mistake? Scan the CANCEL bar code to abort and
not save the entry string. You can then start again at the
beginning.
CANCEL
$CI2L2
~
DEFAULT
50 = Length 2 is 50 Characters
