Datalogic Gryphon Series User Manual

Setup Configuring the Base Station
20 Gryphon™ I GD44XX / GBT4400/GM440X

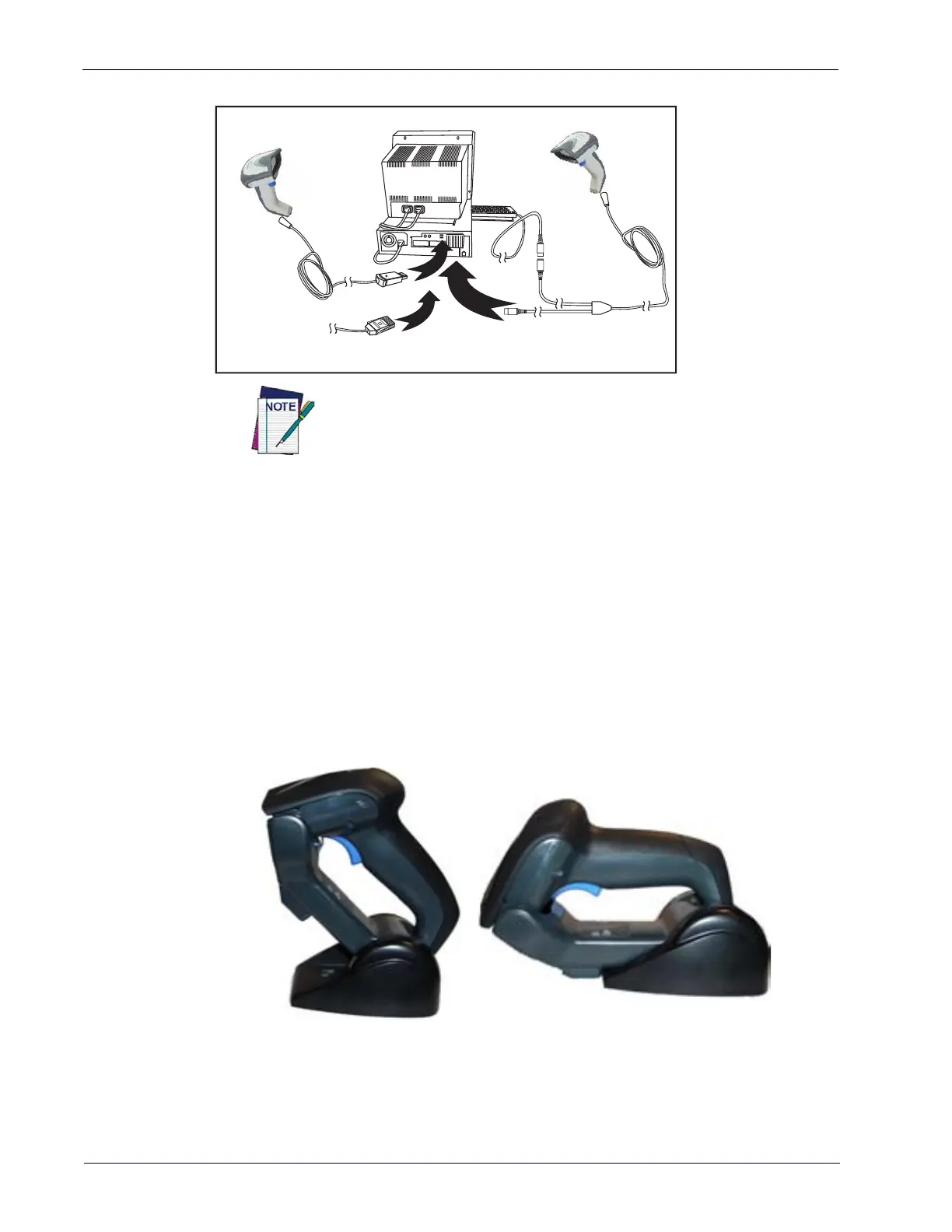

Figure 6. Other Interface Connections
RF Models
The power supply connects directly to the base (not on the cable's jack) for all configurations.
For all interfaces (except RS-232) a power supply is recommended but not necessary, because
the base can be powered from the Host. When the base is powered from the Host, select a slow
charge rate.
Configuring the Base Station
The base charger/station may be configured in desk application to hold the reader in two
different positions, either a horizontal or standing position, in order to provide the most
comfortable use depending on needs.
Specific cables are required for connection to different hosts. The connec-
tors illustrated above are examples only
. Actual connectors may vary from
those illustrated, but the steps to connect the reader remain the same.
W
a
n
d
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
or...
or...
Standing
Horizontal

Datalogic Gryphon Series Specifications

General

Connectivity	USB, RS-232, Keyboard Wedge, Bluetooth
Scan Pattern	Single-line or omnidirectional
Humidity	5% to 95% non-condensing
Decode Capability	1D and 2D barcodes
Ambient Light	Up to 100, 000 lux
