Datalogic Gryphon Series User Manual

Installing the Interface Cable Setup
Product Reference Guide 19
Keyboard Wedge Connection
The Keyboard Wedge cable has a ‘Y’ connection from the reader. Connect the female to the
male end from the keyboard and the remaining end at the keyboard port at the terminal/PC.
Reference
Figure 4 .

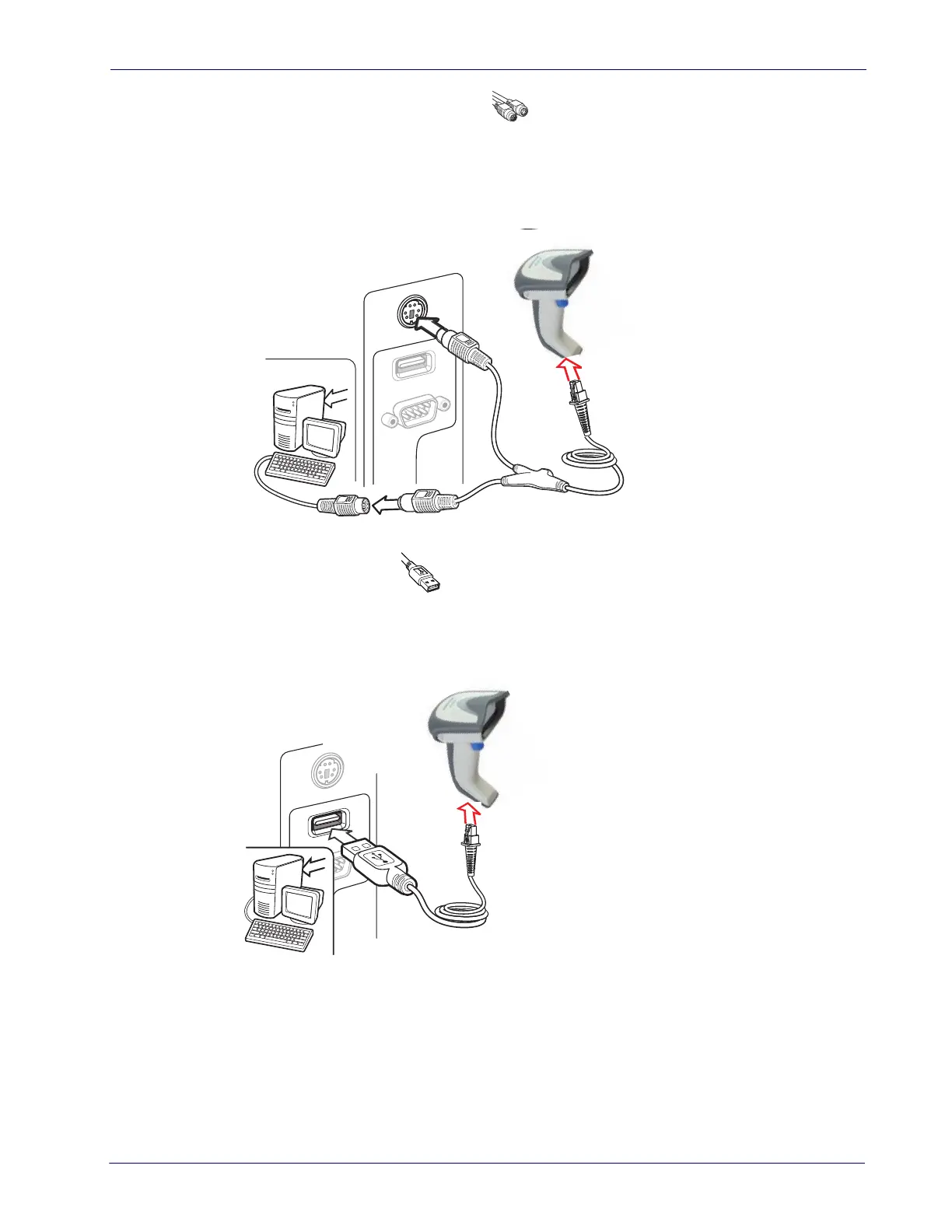

Figure 4. Keyboard Wedge Interface connection
USB Connection
Connect the reader to a USB port on the terminal/PC using the correct USB cable for the
interface type you ordered. Reference
Figure 5 .
Figure 5. USB connection
Other connection types are described below and illustrated in Figure 6 .

Datalogic Gryphon Series Specifications

General

Connectivity	USB, RS-232, Keyboard Wedge, Bluetooth
Scan Pattern	Single-line or omnidirectional
Humidity	5% to 95% non-condensing
Decode Capability	1D and 2D barcodes
Ambient Light	Up to 100, 000 lux
