Datalogic Gryphon Series User Manual

Setup Gryphon™ 2D System and Network Layouts
28 Gryphon™ I GD44XX / GBT4400/GM440X

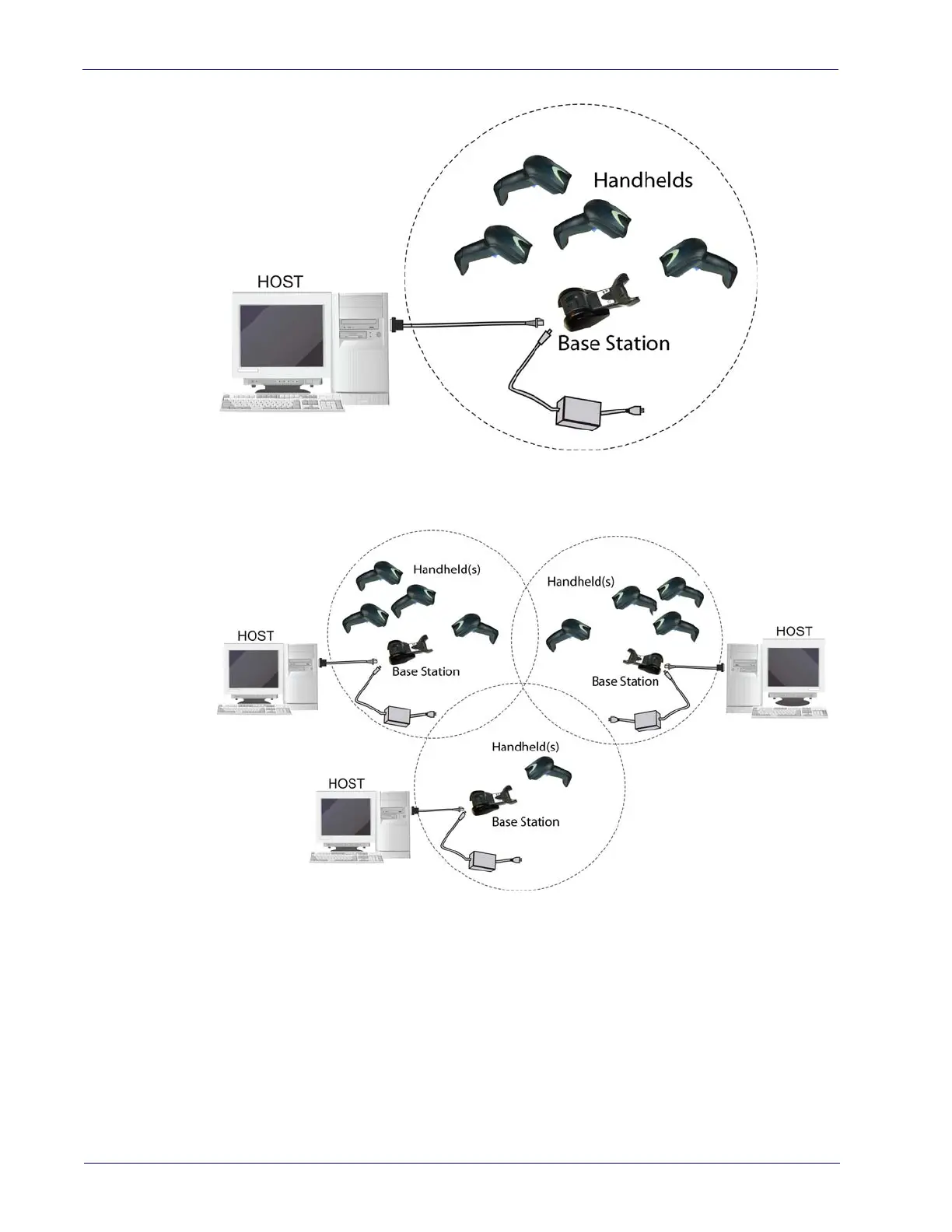

Figure 13. Multiple Reader Layout
In stand alone systems, each base station is connected to a single Host.
Figure 14. Multiple Stand Alone Layouts
Many stand alone connections can operate in the same physical area without interference,
provided all readers and base stations in the system have different addresses.
Wireless models only
(not valid for BT model)
Mobile models only
(not valid for BT model)

Datalogic Gryphon Series Specifications

General

Connectivity	USB, RS-232, Keyboard Wedge, Bluetooth
Scan Pattern	Single-line or omnidirectional
Humidity	5% to 95% non-condensing
Decode Capability	1D and 2D barcodes
Ambient Light	Up to 100, 000 lux
