Dell PowerConnect M8024 - Page 140

138 Configuring System Information

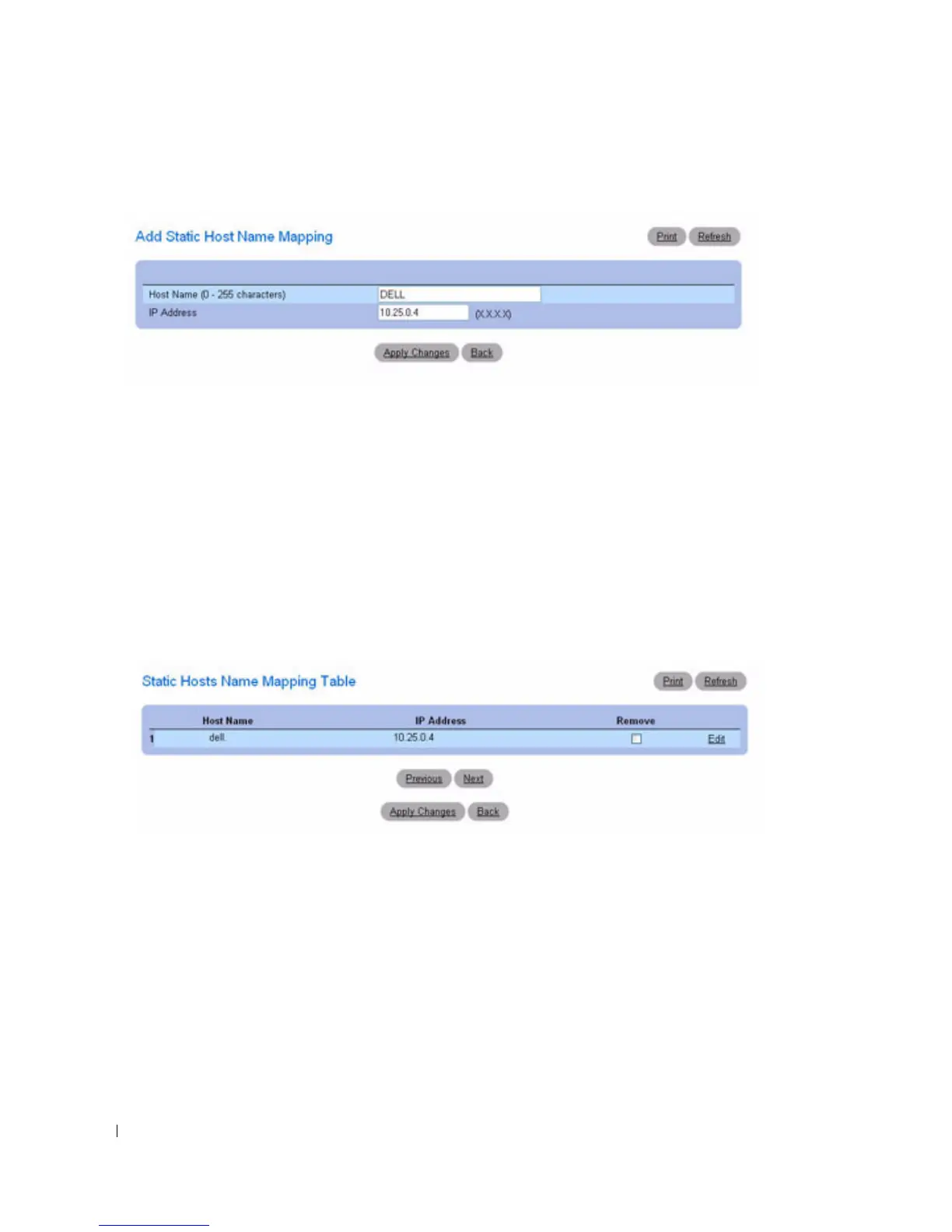

Figure 6-29. Add Static Host Name Mapping
3. Define the relevant fields.
4. Click Apply Changes .
The IP address is mapped to the host name, and the device is updated.
Displaying the Static Host Name Mapping Table
1. Open the Host Name Mapping page .
2. Click Show All .
The
Static Host Name Mapping Table displays:
Figure 6-30. Static Host Name Mapping Table
Removing a Host Name From IP Address Mapping
1. Open the Host Name Mapping page .
2. Click Show All .
The Host Name Mapping Table opens.
3. Select a Host Name Mapping Table entry.
4. Check the Remove check box.
5. Click Apply Changes .
The Host Name Mapping Table entry is removed, and the device is updated.
