Ethernet Interface
The switching port can connect to stations wired in standard RJ-45 Ethernet station mode using straight
cables. Transmission devices connected to each other use crossed cables. Figure 3-1 illustrates the RJ-45
connector.

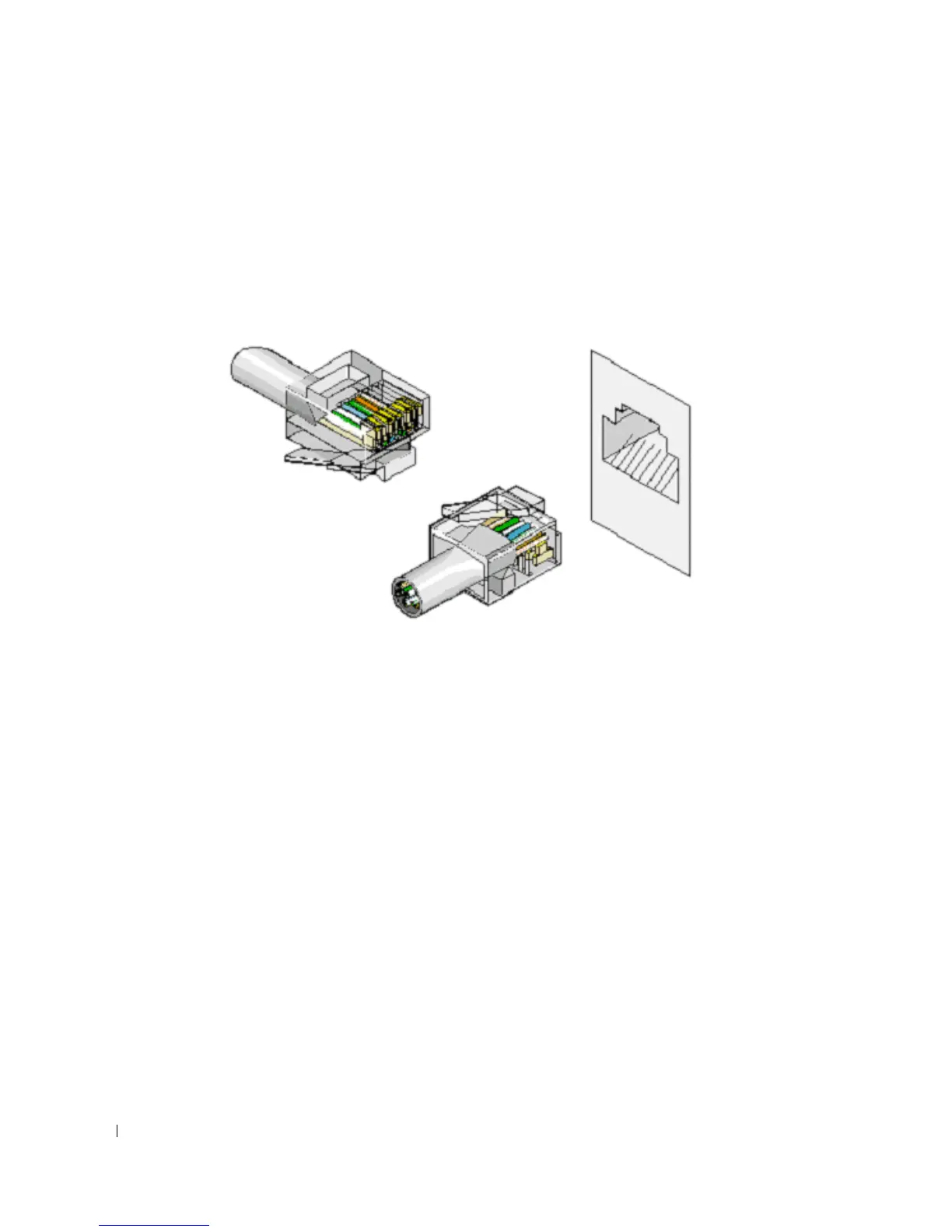

Figure 3-1. RJ-45 Connector
