Component Summary
Use the Component Summary
page to display PIM-SM component data.
To display the page, click Multicast > PIM-SM > Component Summary in the tree view.

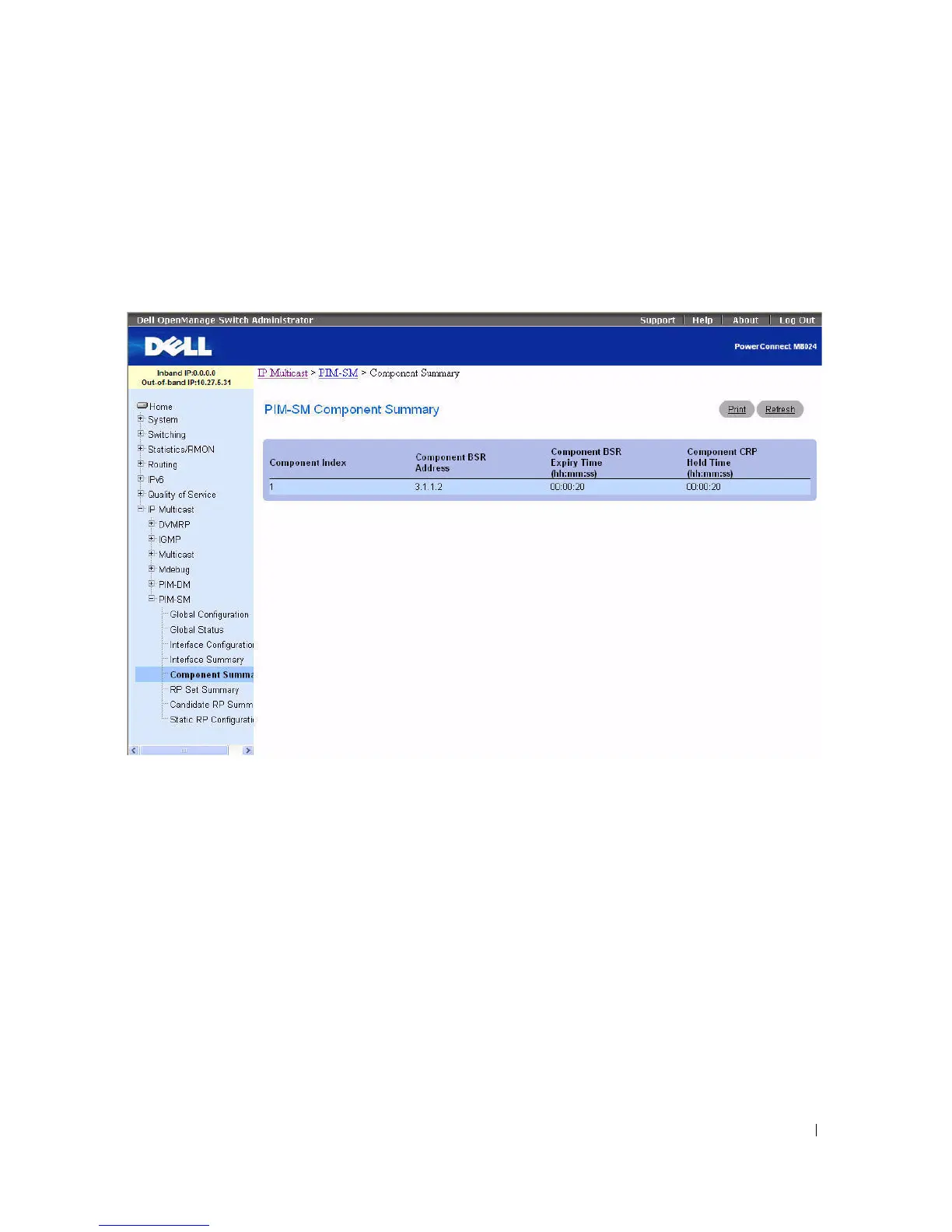

Figure 12-50. Component Summary
The Component Summary page displays the following fields:
•
Component Index
— Unique number identifying the component index.
•
Component BSR Address
— The IP address of the bootstrap router (BSR) for the local PIM region.
•
Component BSR Expiry Time (hh:mm:ss)
— The minimum time remaining before the bootstrap
router in the local domain is declared.
•
Component CRP Hold Time (hh:mm:ss)
— The hold time of the component when it is a candidate
Rendezvous Point in the local domain.
Displaying PIM-SM Component Summary using the CLI Command
For information about the CLI command that performs this function, see the following chapter in the
CLI Reference Guide:
• PIM-SM Commands
