244 Configuring System Information
•
Link Status
— Indicates whether or not the stack interface for each unit is operating.
•
Link Speed (Gb/s)
— Indicates the nominal speed of each unit’s link.
Viewing Stack Port Summary Using the CLI Command
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide:
• System Management Commands
Stack Port Counters
Use the Stack Port Counters page to view the transmitted and received statistics, including data rate and
error rate.
To display the Stack Port Counters page, click System > Stacking > Stack Point Counters in the tree
view.

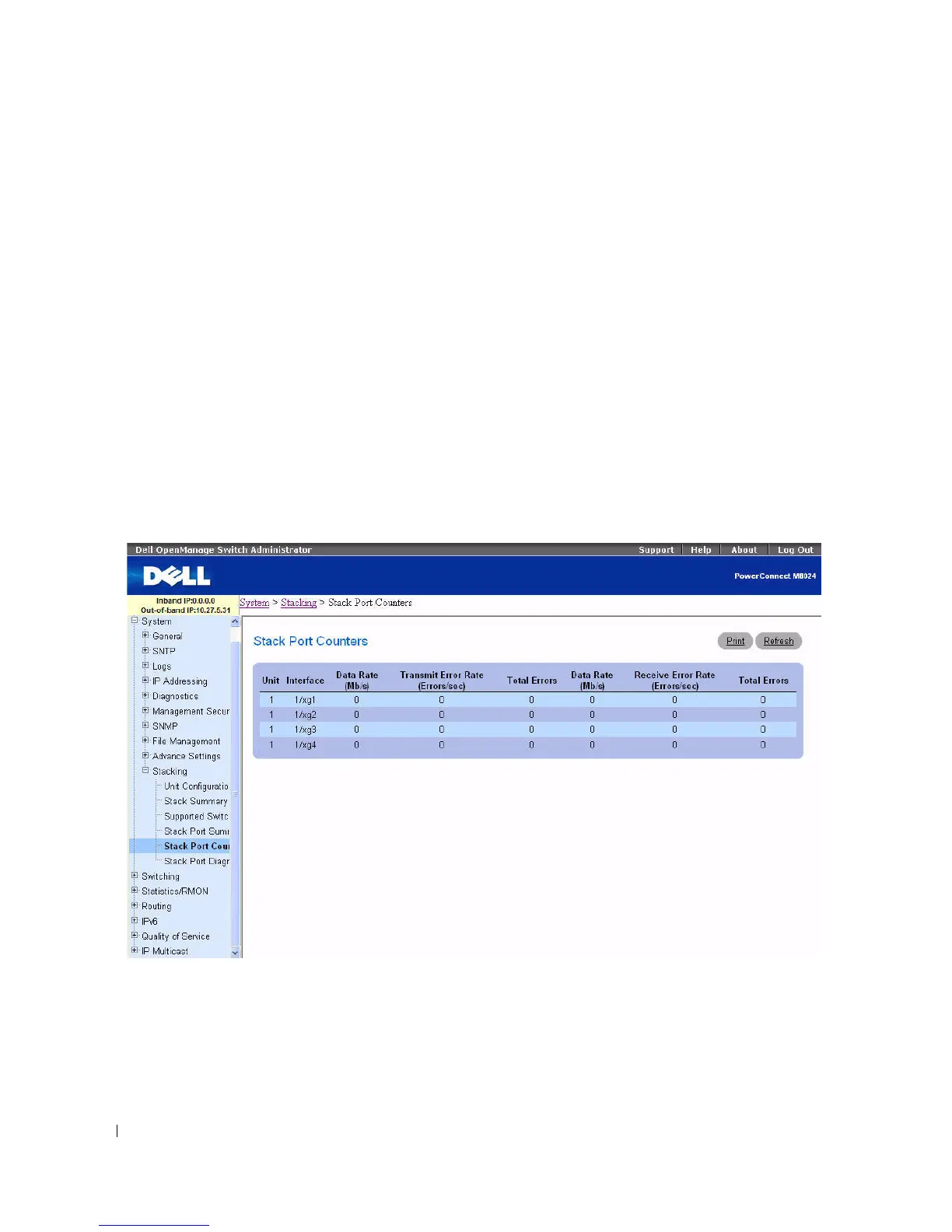

Figure 6-119. Stack Port Counters
The Stack Port Counters page contains the following fields:
•
Unit —
Indicates the subordinate switch being viewed.
•
Interface —
Indicates the name of the interface.
•
Data Rate (Mb/s) —
Indicates the speed at which the data is transmitted.
