Source MAC Mask
— Specifies the Source MAC address wildcard mask. Wild card masks determine
which bits are used and which bits are ignored. A wild card mask of 00.00.00.00.00.00 indicates that no
bit is important. A wildcard of FF:FF:FF:FF:FF:FF indicates that all bits are important. This field is
required when
Source MAC Address
is checked.
•
Destination MAC Address
— Requires a packet’s Destination MAC Address for incoming packets to
match the address entered here.
•
Destination MAC Mask
— Specifies the Destination MAC address wildcard mask. Wild card masks
determine which bits are used and which bits are ignored. A wild card mask of 00.00.00.00.00.00
indicates that no bit is important. A wildcard of FF:FF:FF:FF:FF:FF indicates that all bits are
important. This field is required when
Destination MAC Address
is checked.
•
VLAN ID
— Requires a packet’s VLAN ID for incoming packets to match the VLAN ID entered here.
Range is 0-4095.
•
Reference Class
— Selects a class to start referencing for criteria. Select the
Add Diffserv Class
check
box, then select a previously configured Diffserv class from the related drop-down menu.

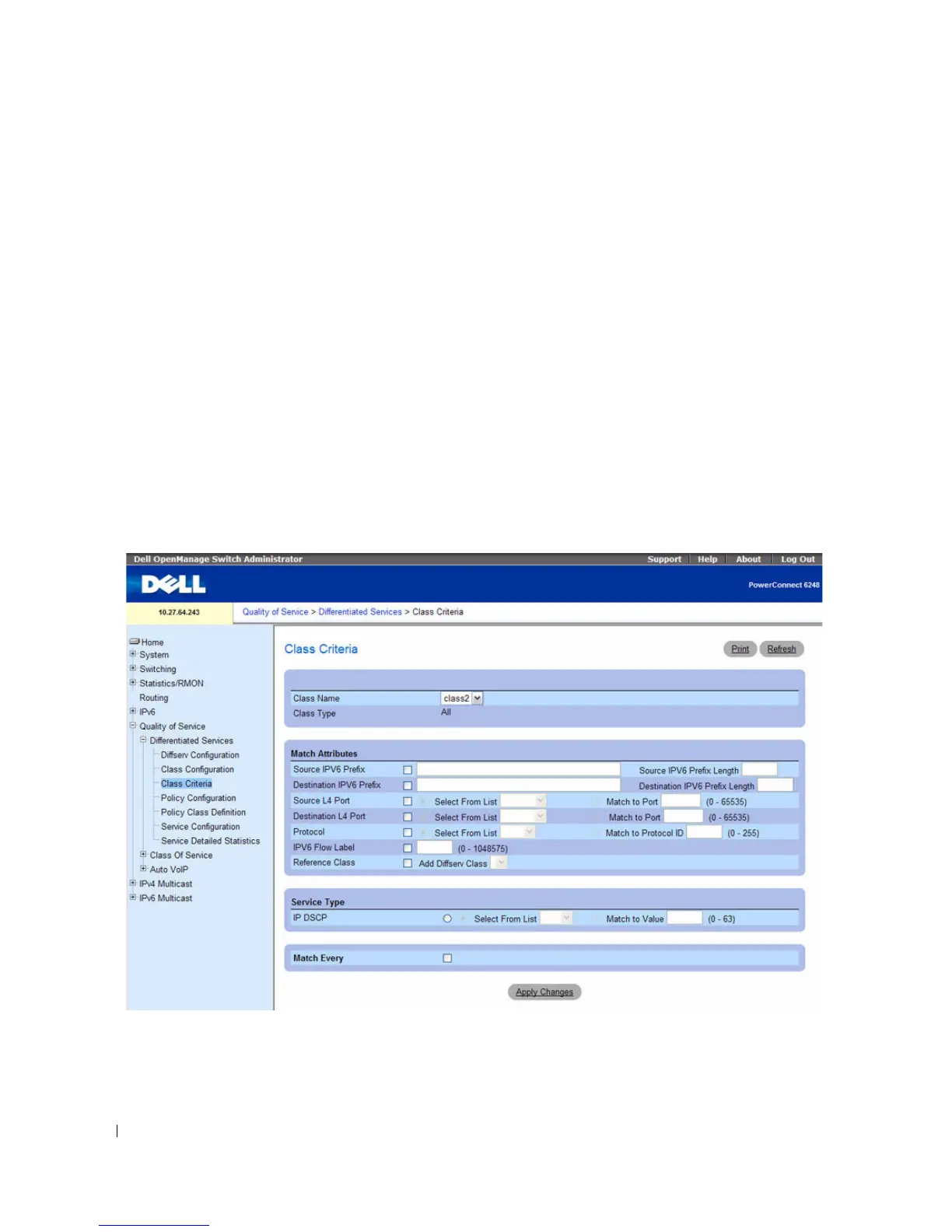

Figure 11-5. Diffserv Class Criteria IPv6
