Connect the Ethernet Management and iDRAC Interfaces
Dell Compellent 123
2 LabelbothendsofeachEthernetcablewiththeappropriatemanagementoriDRAC
label.
a Neartheconnector,alignthelabelperpendiculartothecableandaffixitstarting
withthetopedgeofthelabel.

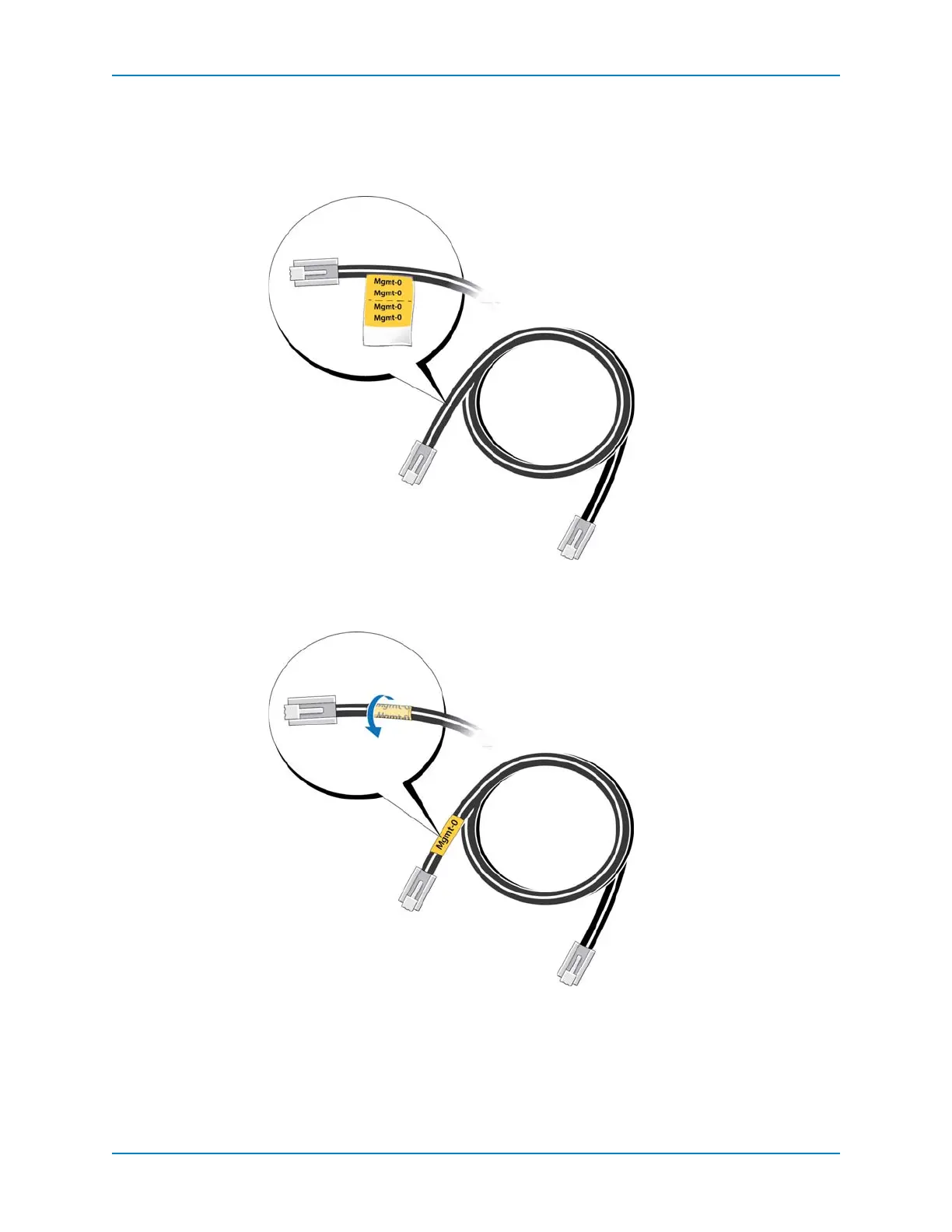

Figure 108. Align Cable Label
b Wrapthelabelaroundthecableuntilitfullyencirclesthecable.Thebottomof
each
pre‐madelabelisclearsothatitdoesnotobscurethetext.
Figure 109. Wrap Cable Label
c Applyamatchinglabeltotheotherendofthecable.
