Dell SC8000 - Dual Controller, Two SC280 Enclosures

Connect SC280 Enclosures
Dell Compellent 79
Dual Controller, Two SC280 Enclosures
Thisillustration showstwoSC8000controllerscabledtotwoSC280enclosuresinasingle
chain.

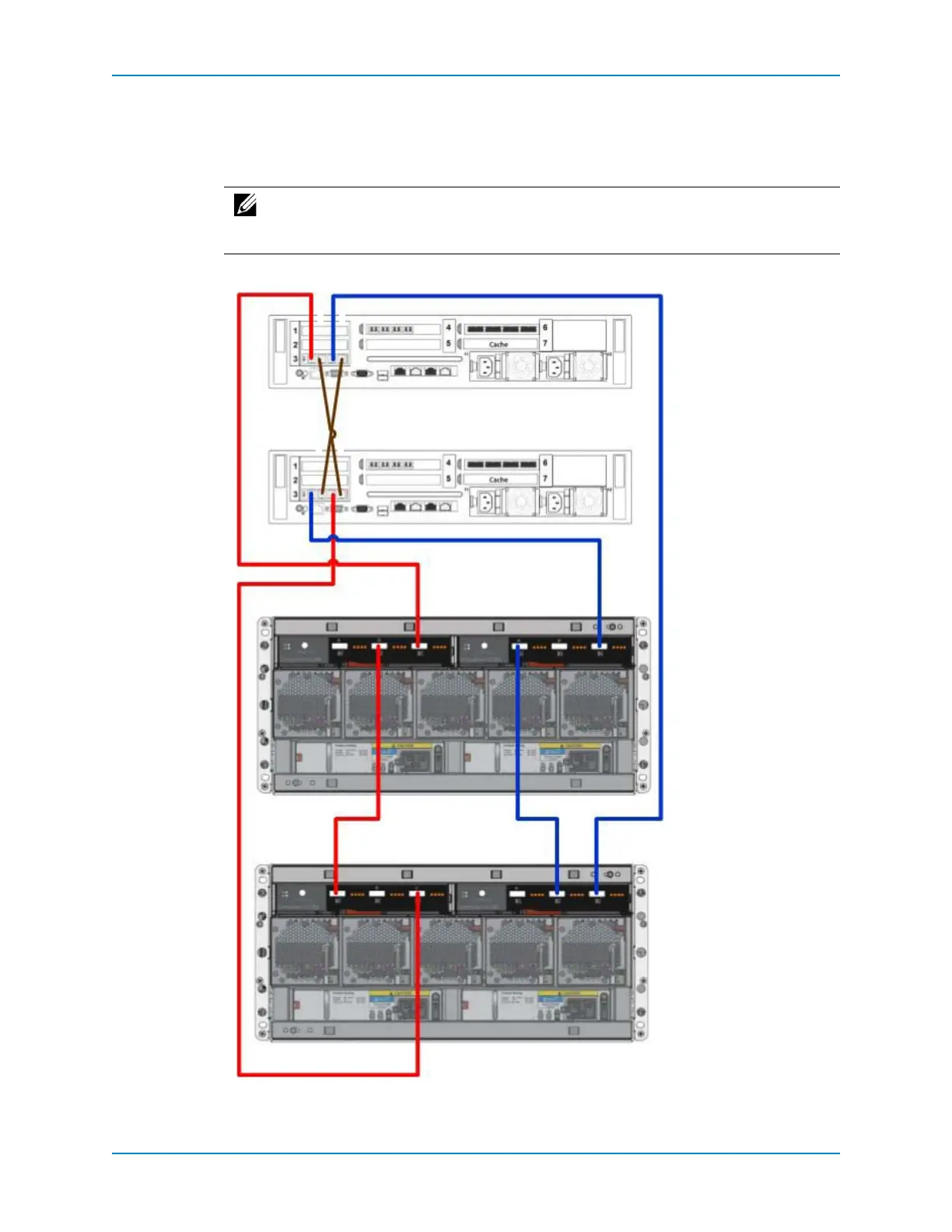

Figure 76. Dual SC8000 Controllers, Two SC280 Enclosures, One Chain
Note: Inasingle‐chainconfiguration,useSASports2(initiator)and4(target)to
createaredundantIPCconnection.WhenyouconfiguretheseportsusingtheIO
portwizard,settheportPurposetoUnknown.
Controller A
Controller B
Enclosure 1
Enclosure 2
AB
1342
CABC
1342
ABC ABC
4 3 21
4 3 21
