Connect EN-SASx6x12/24 Enclosures
Dell Compellent 85
Single Controller, Single Enclosure

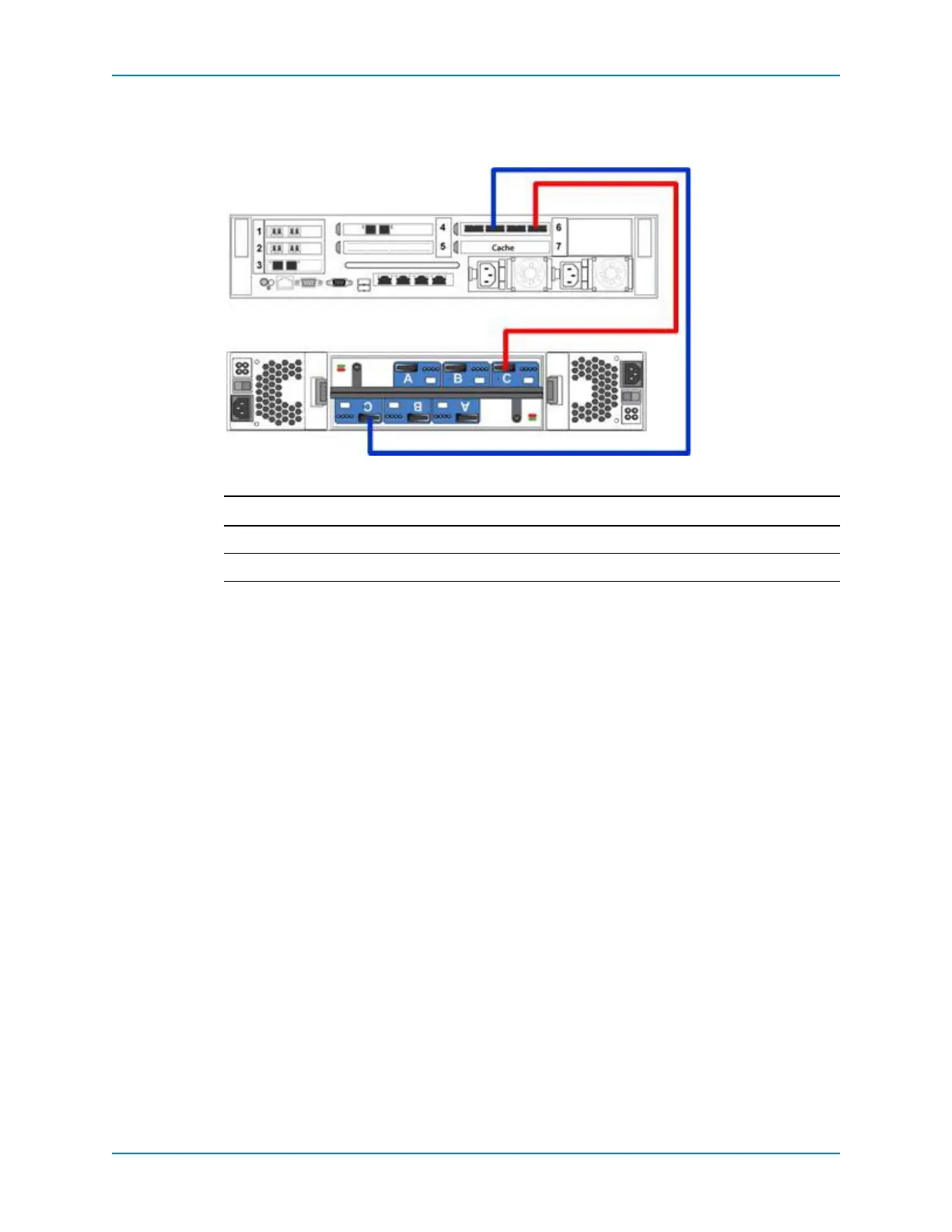

Thisillustration showsanSC8000controllercabledtooneSASenclosure.
Figure 78. Single SC8000 Controller, Single SAS Enclosure
Path Connections
Chain1:ASide Controller:slot6,port1→Enclosure:topSBB,port C.
Chain1:BSide Controller:slot6,port3→Enclosure:bottomSBB,port C.
4 3 21
