Chapter 3 Connect the Back End
62 Storage Center SC8000 Controller Deployment Guide
Single Controller, Single Enclosure

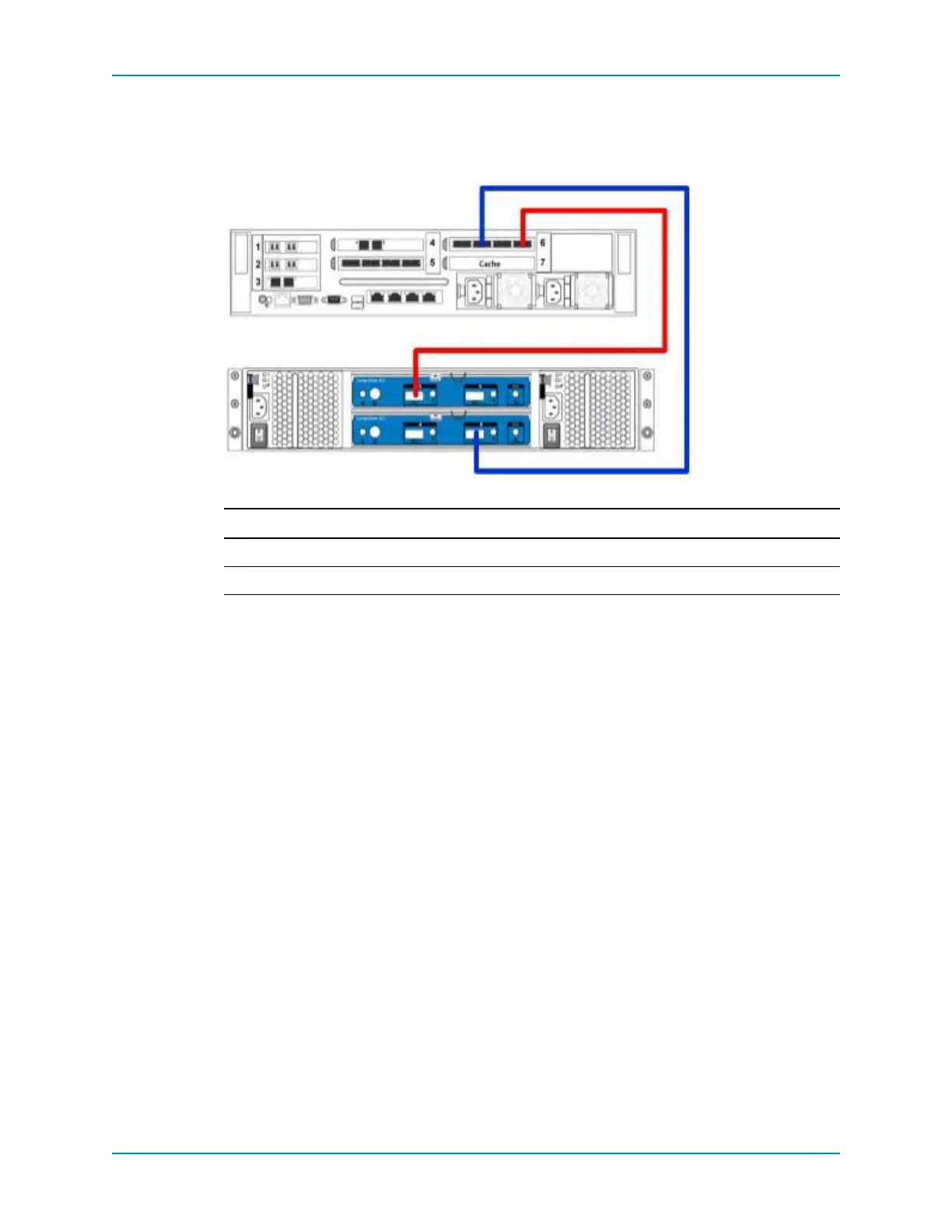

Thisillustration showsanSC8000controllercabledtoasingleSASenclosureusingafull‐
heightIOcard.
Figure 61. Single SC8000 Controller, Single SAS Enclosure
Path Connections
Chain1:ASide Controller:slot6,port1→Enclosure:topEMM,port A.
Chain1:BSide Controller:slot6,port3→Enclosure:bottomEMM,port B.
4 3 21
A
AB
B
