Chapter 5 Set up the Storage Center Software
122 Storage Center SC8000 Controller Deployment Guide
Connect Dual-Controller Management Ports
ConnectEthernetmanagementandiDRACportsforbothcontrollerstoamanagement
network.
1 Connectthe1GbETH0(port0)oneachcontrollertoanEthernetswitchorVLAN.
2 ConnecttheiDRACporttothe sameEthernetswitchusinga1GbEthernetcable.

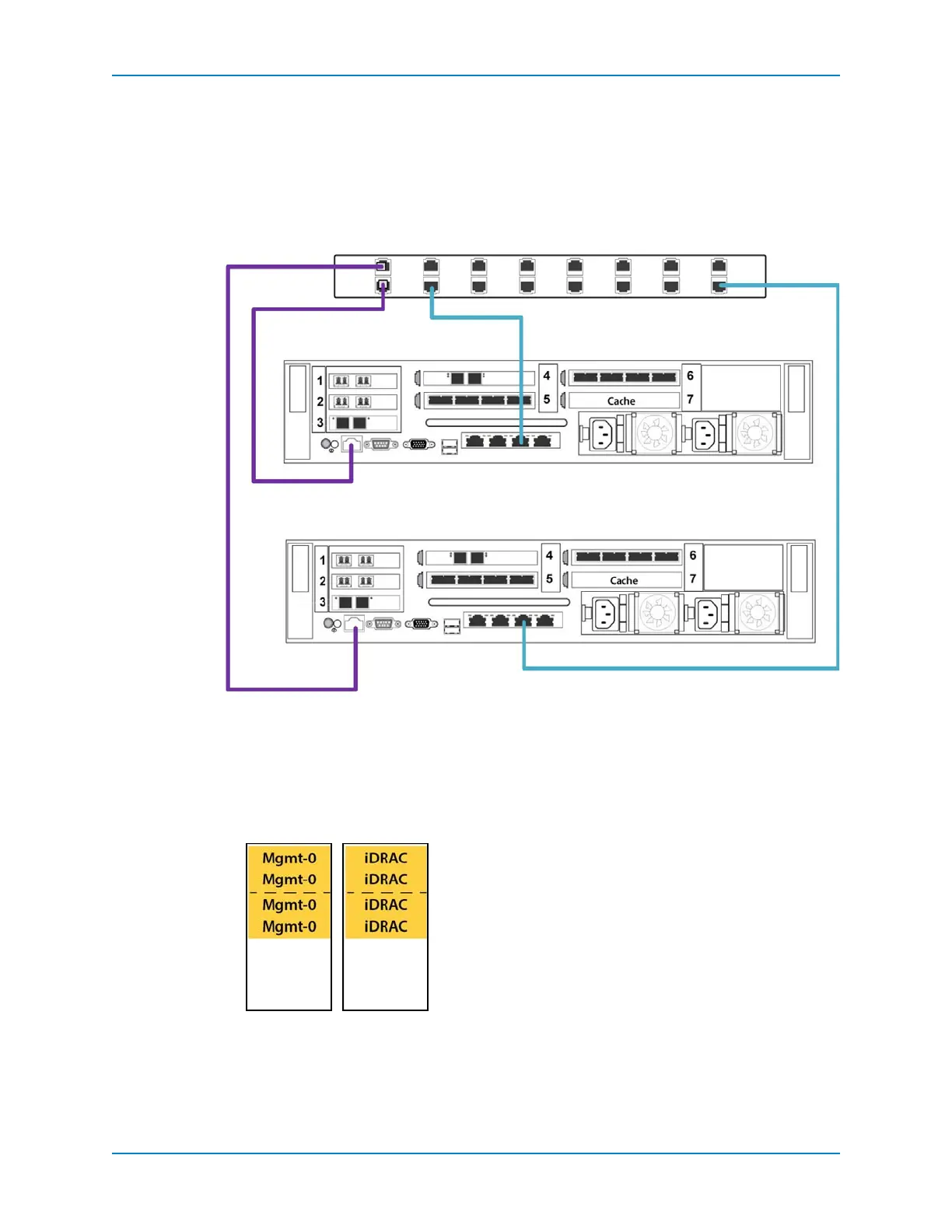

Figure 106. Dual-Controller Management Connections
Label the Management Cables
LabeltheEthernetmanagementcablesandiDRACcableswiththepre‐madelabelsthat
shippedwiththecontroller(s).
1 Locate theEthernetmanagementandiDRAClabelsthatshippedwiththecontroller(s).
Figure 107. Management Cable Label
Switch (Corporate/Public Network)
Controller A
Controller B
1 Gb ETH 0 Port
1 Gb ETH 0 Port
iDRAC
iDRAC
3120
IPC MGMT
3120
IPC MGMT
