Removing Enclosures
Dell Compellent 197

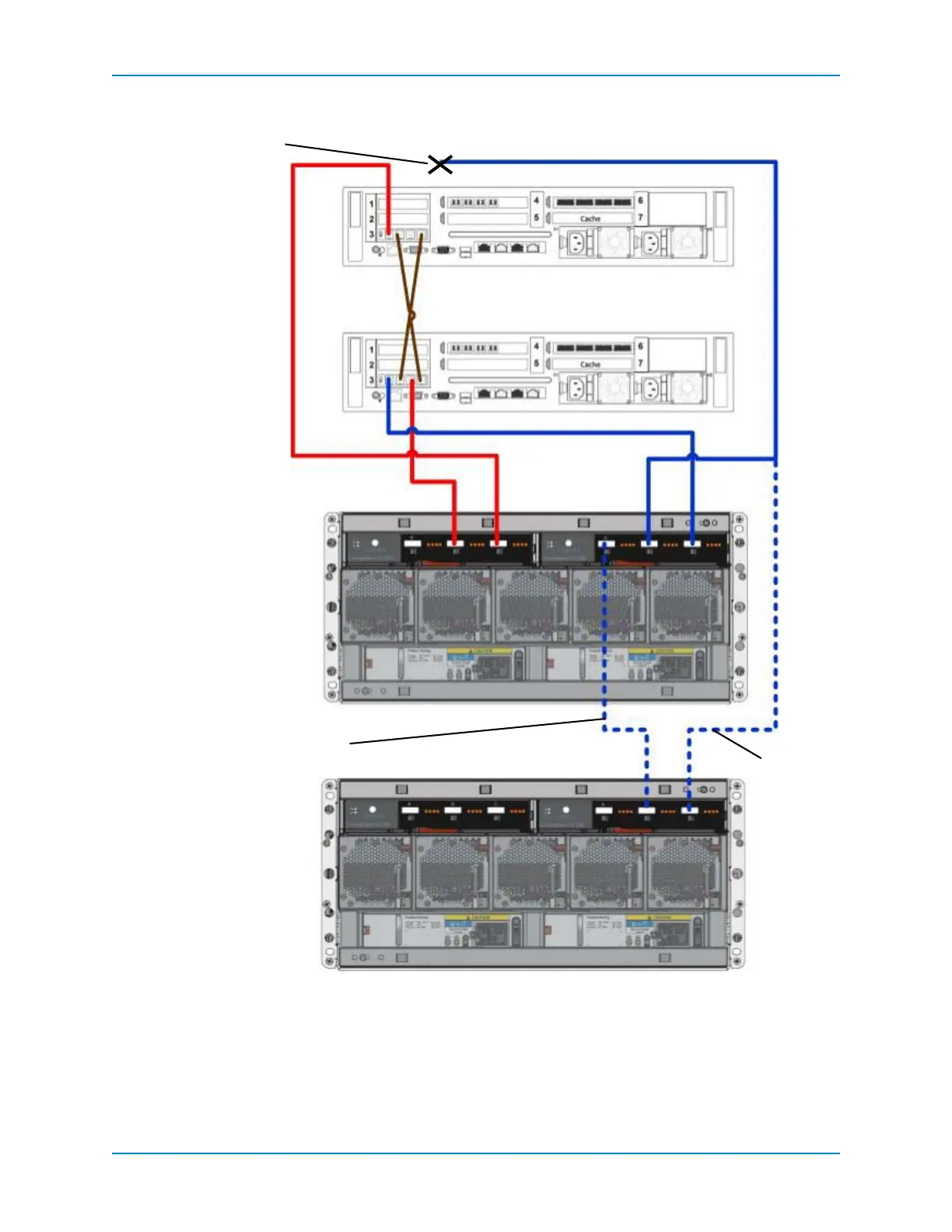

Figure 126. Disconnecting the SC280 Enclosure from the B-side Chain
Disconnect
B side
Remove the B-side cable
between enclosures
Move to
Enclosure 1,
right, port B
Enclosure 1
Enclosure 2
Controller A
Controller B
ABC
4321
4321
ABC
ABC ABC
