Chapter 3 Connect the Back End
58 Storage Center SC8000 Controller Deployment Guide

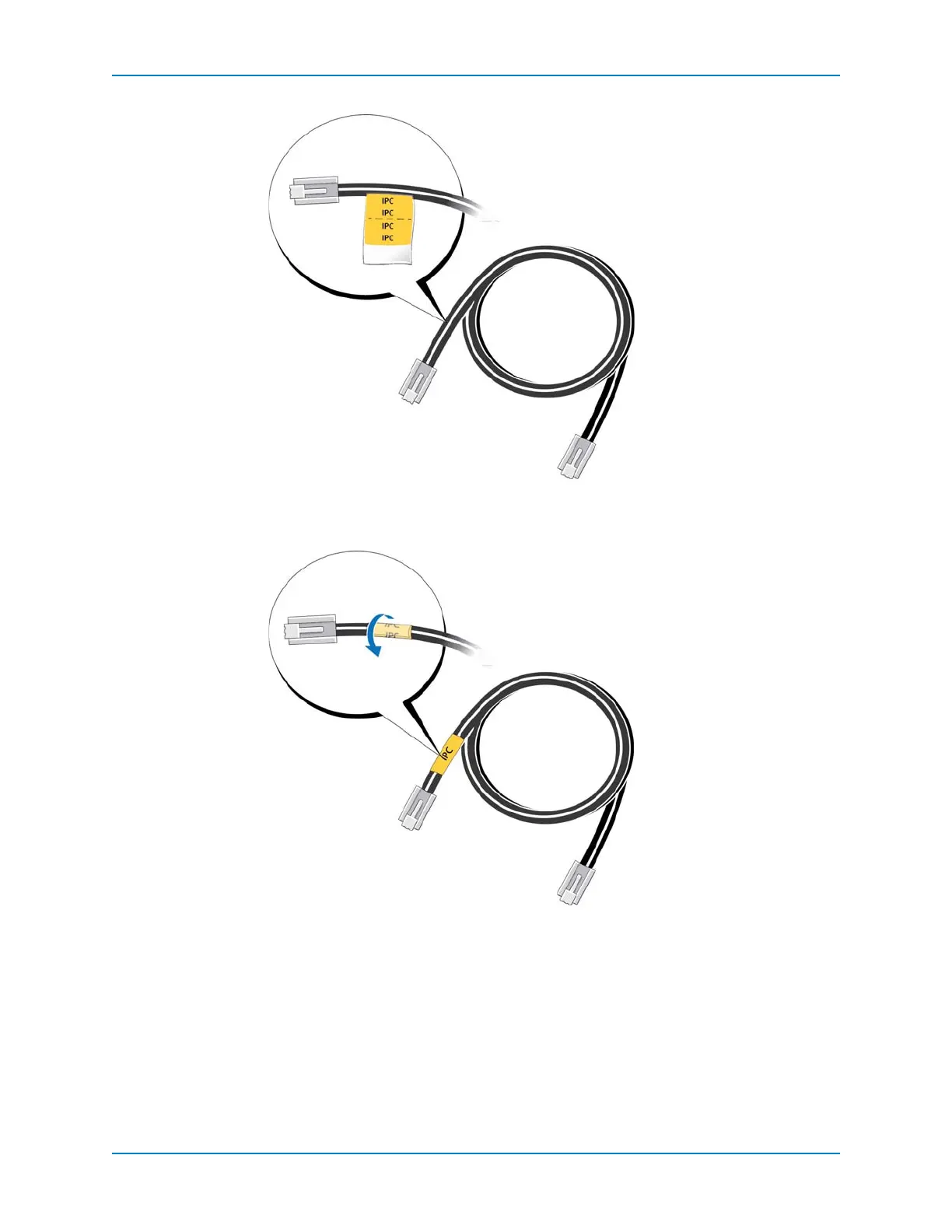

Figure 55. Align Cable Label
c Wrapthelabelaroundthecableuntilitfullyencirclesthecable.Thebottomofeach
pre‐madelabelisclearsothatitdoesnotobscurethetext.
Figure 56. Wrap Cable Label
d Applyamatchinglabeltotheotherendofthecable.
