Delta MH300 Series - Page 113

Chapter 7 Optional AccessoriesMH300
7-48

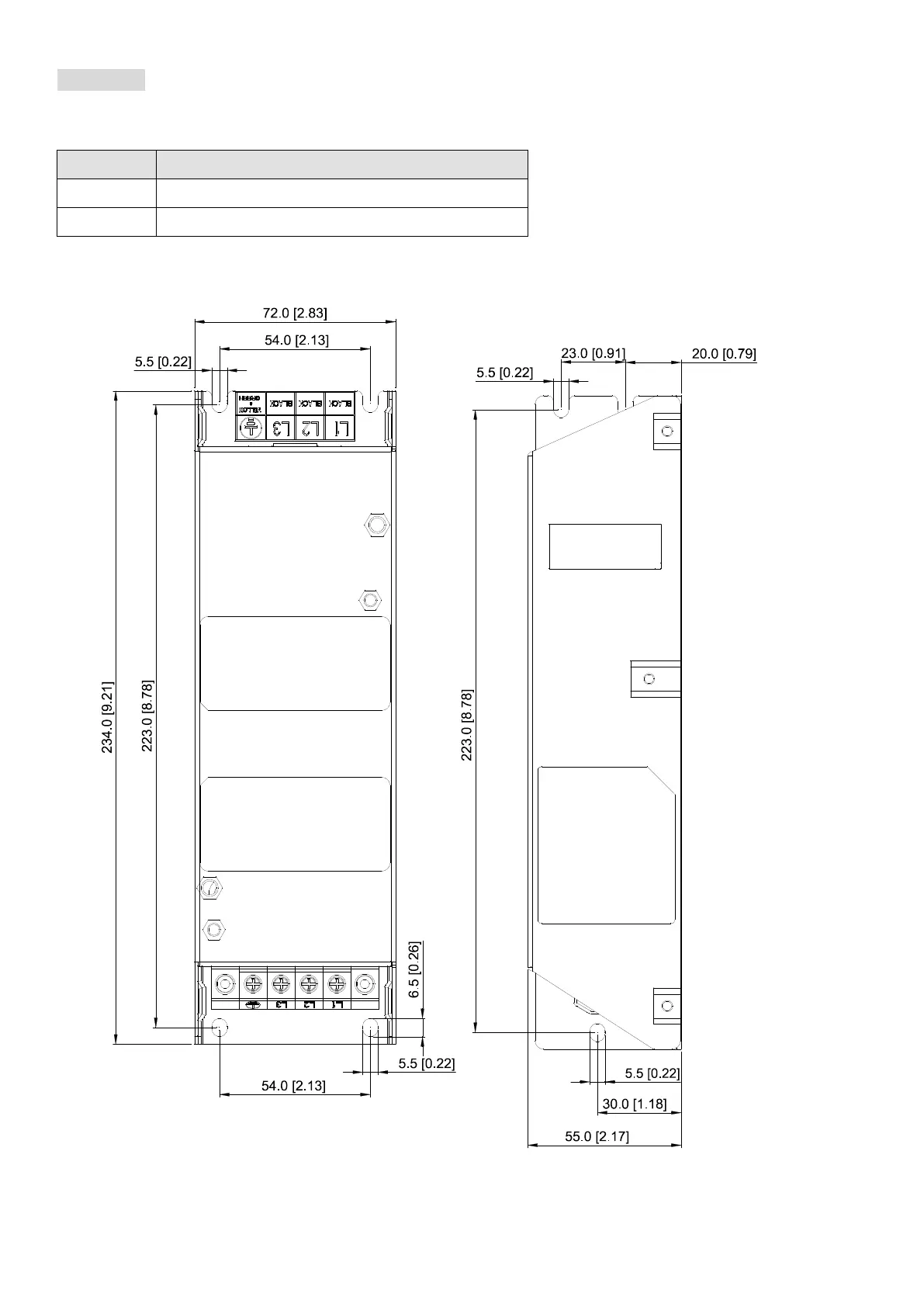

Dimension
EMF11AM21A, EMF10AM23A, EMF6A0M43A
Screw Torque
M5 * 2 16–20 kg-cm / (13.9–17.3 lb-in.) / (1.56–1.96 Nm)
M4 * 2 14–16 kg-cm / (12.2–13.8 lb-in.) / (1.38–1.56 Nm)
Table 7-58
Fig. 7-32
Unit: mm [inch]
EMF27AM21B, EMF24AM23B, EMF33AM23B, EMF12AM43B, EMF23AM43B
