Chapter 7 Optional AccessoriesMH300

7-49

Screw Torque

M5 * 4 16–20 kg-cm / (13.9–17.3 lb-in.) / (1.56–1.96 Nm)

Table 7-59

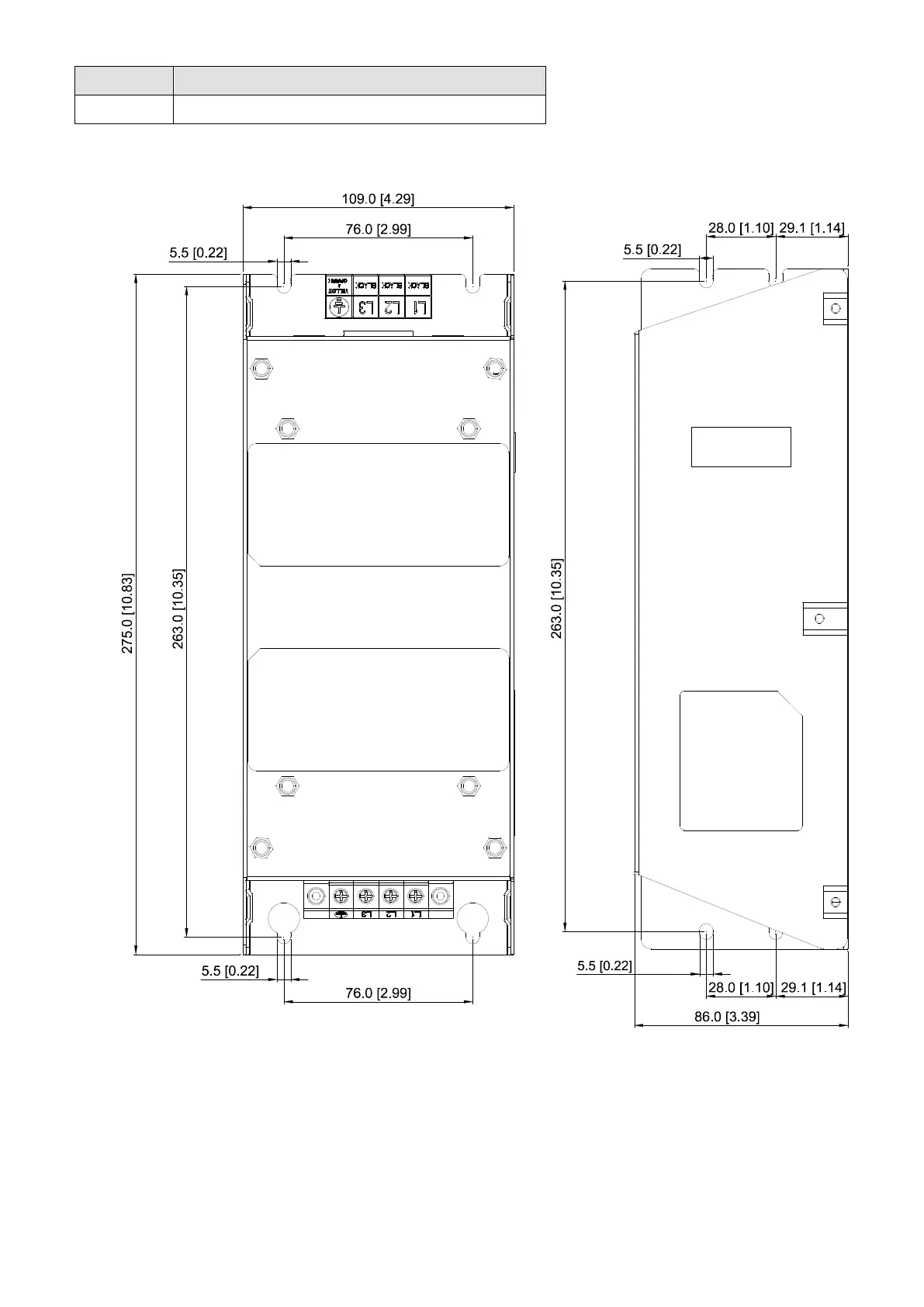

Fig. 7-33

Unit: mm [inch]

TDK B84143D0050R127 (50A)
