Chapter 7 Optional AccessoriesMH300

7-50

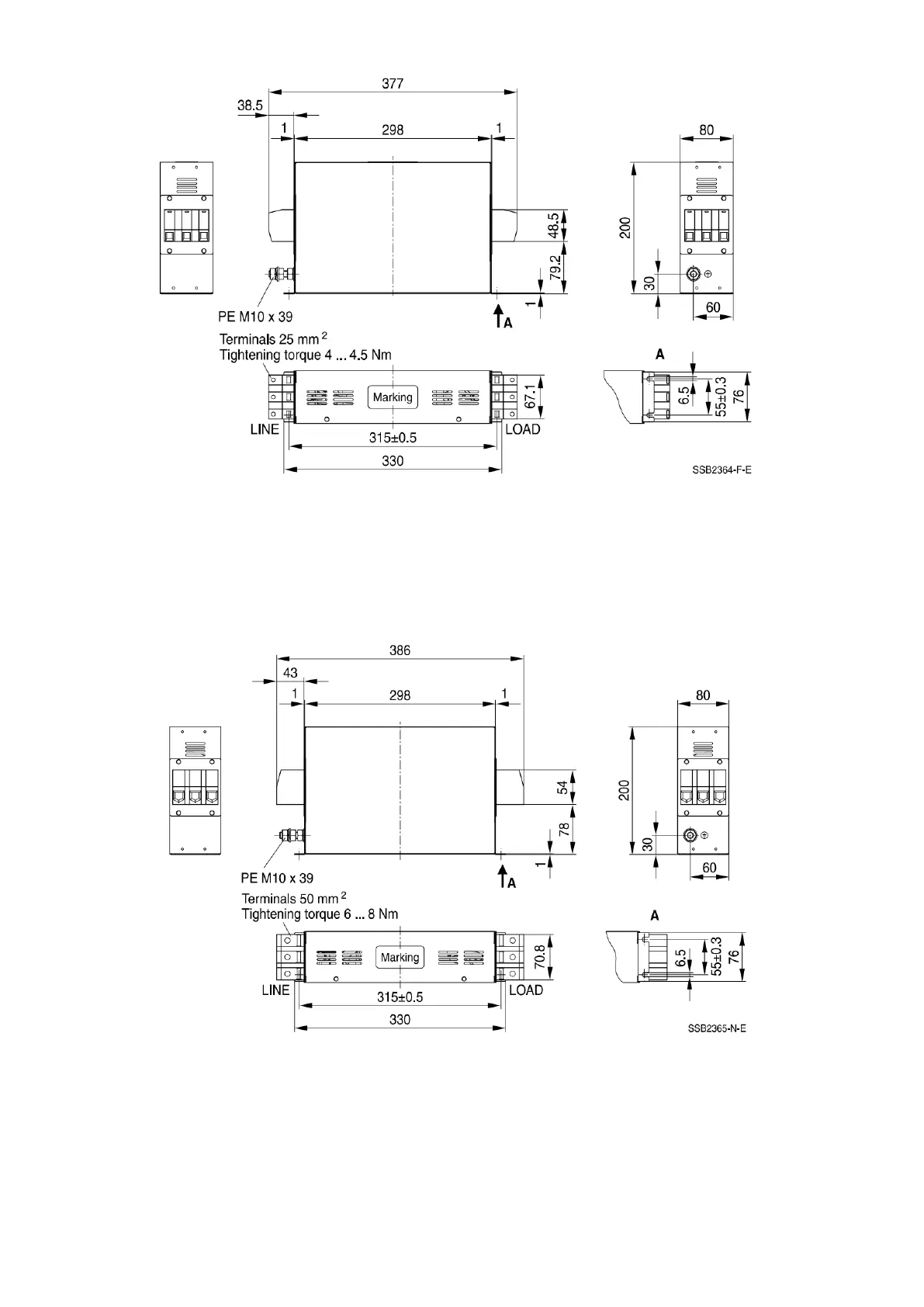

Fig. 7-34

Unit: mm

TDK B84143D0075R127 (75A), TDK B84143D0090R127 (90A)

Fig. 7-35

Unit: mm

B84143A0120R105 (120A)
