Chapter 7 Optional AccessoriesMH300
7-51

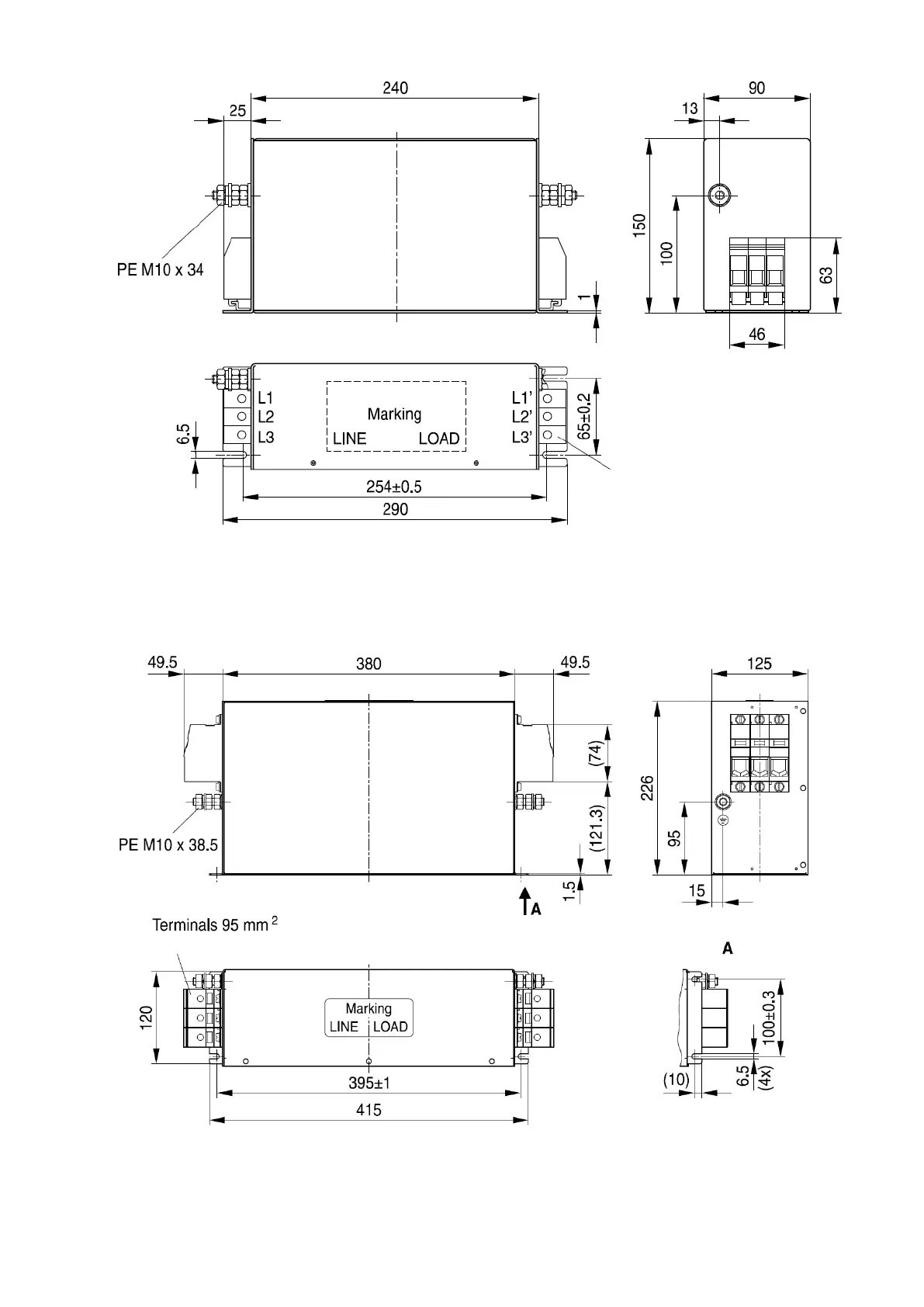

Fig. 7-36
Unit: mm
TDK B84143D0120R127 (120A), B84143D0150R127 (150A)
Fig. 7-37
Unit: mm
B84143D0200R127 (200A)
Torq u e : 32.7~37.8 kg-cm /
[28.4~32.8 lb-in.] /
[3.2~3.7 Nm]
Torque: 153.1~204.1 kg-cm / [132.9~177.2 lb-in.] / [15.0~20.0 Nm]
