Chapter 12 Descriptions of Parameter Settings
MH300
12.1-00-8
 Determines the control mode of the AC motor drive:
0: IM V/F control: you can set the proportion of V/F as required and control multiple motors
simultaneously.
1: IM V/F control + Encoder pulse input: you can use the encoder for closed-loop speed control.
2: IM sensorless vector control: get the optimal control by auto-tuning the motor parameters.
3: IM FOC vector control+ Encoder: not only can increase torque, but also can increase the
accuracy of the speed control (1:1000).
4: PM FOC vector control + Encoder: not only can increase torque, but also can increase the
accuracy of the speed control (1:1000).
5: IM FOC Sensorless: IM field oriented sensorless vector control
7: IPM Sensorless: interior PM field oriented sensorless vector control

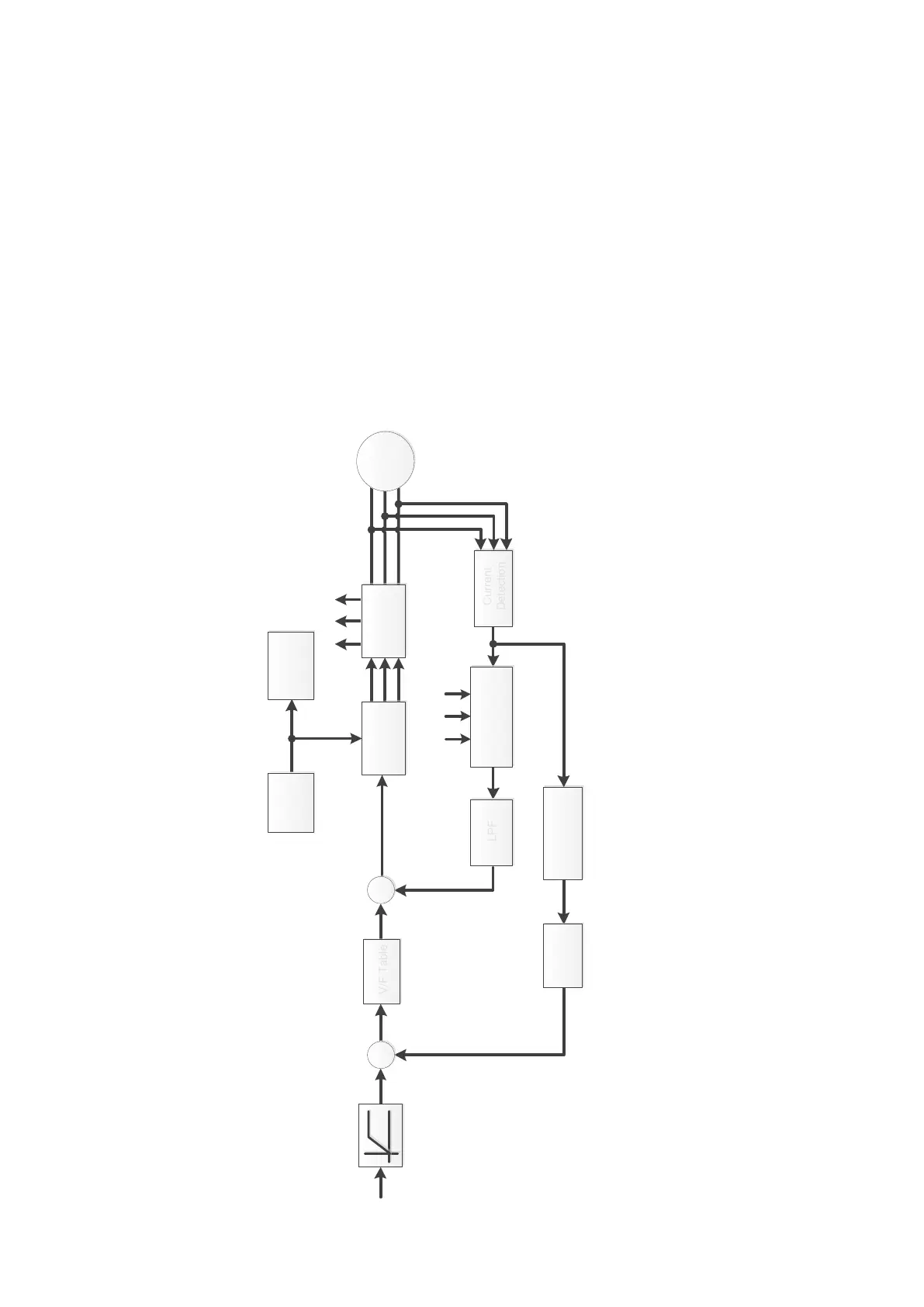

 When Pr.00-10 = 0 and you set Pr.00-11 to 0, the V/F control diagram is as follows:
AVR
LPF
LPF
Acc/Dec Time
V/F Table
V/F Table
Torque
Compensation
Current
Detection
Current
Detection
IGBT
PWM
IM
Pr.07-24
Pr.07-26
Pr.07-23
Pr.01-01~01-02 Pr.05-01~05-04
+
Pr.01-01~01-08
Pr.01-12~01-27
Fcmd
Pr.00-20
LPF
Slip
Compensation
Pr.07-25
U
a
U
b
U
c
+
U
a
U
b
U
c
Pr.07-27
I
a
I
b
I
c
DC Bus
Voltage
Detection
DC Bus
Voltage
Protection
+
+
