Chapter 12 Description of Parameter Settings
MH300
When Pr.12-65 = 4, determines the multi-step linear taper by Pr.12-67, Pr.12-71 and Pr.12-72;
and determines the turning points by Pr.12-69 and Pr.12-70.
Tension Taper Setting Source
Default: 0
Settings 0: RS-485 communication input
1: Analog input
Default: 0
Settings 0–100%
When Pr.12-66 = 0, you can use digital keypad, HMI page planning, or text panel (TP series of
PLC products) to change the tension taper value (Pr.12-67) by using communication.
When Pr.12-66 = 1, Pr.03-00 and Pr.03-01 = d20 (tension taper), and Pr.12-67 only can display
the value (read only).
During the process of rewind, sometimes the tension needs to decrease along with the increasing
reel diameter to ensure that the material is rewinded successfully.

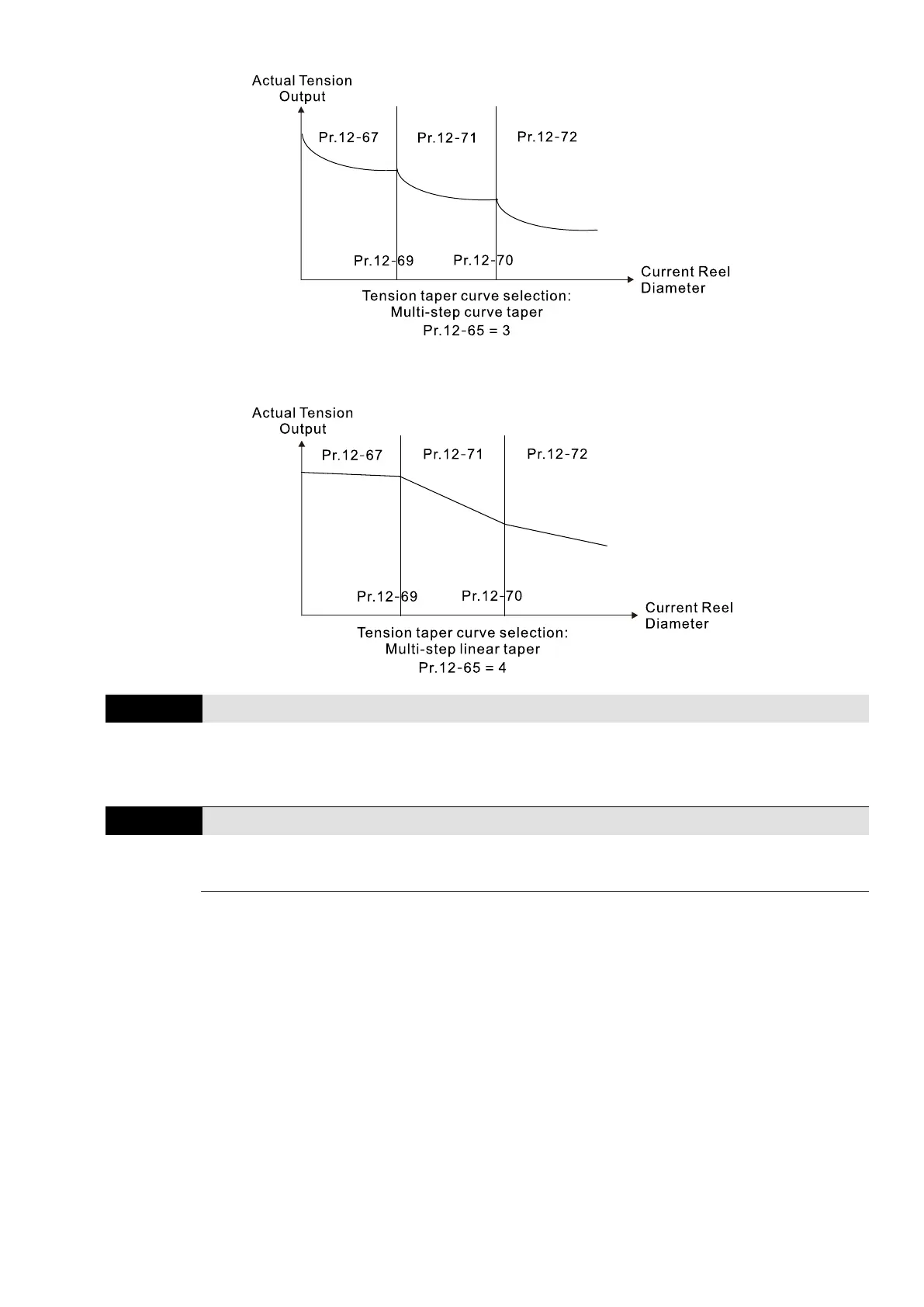

The diagram below shows the unwind control
