BHT-1300B series
“7: RSS”: Detailed settings for RSS (GS1 Databar)
1. Select “7: RSS” at the SET BARCODE menu and then press the ENT key.

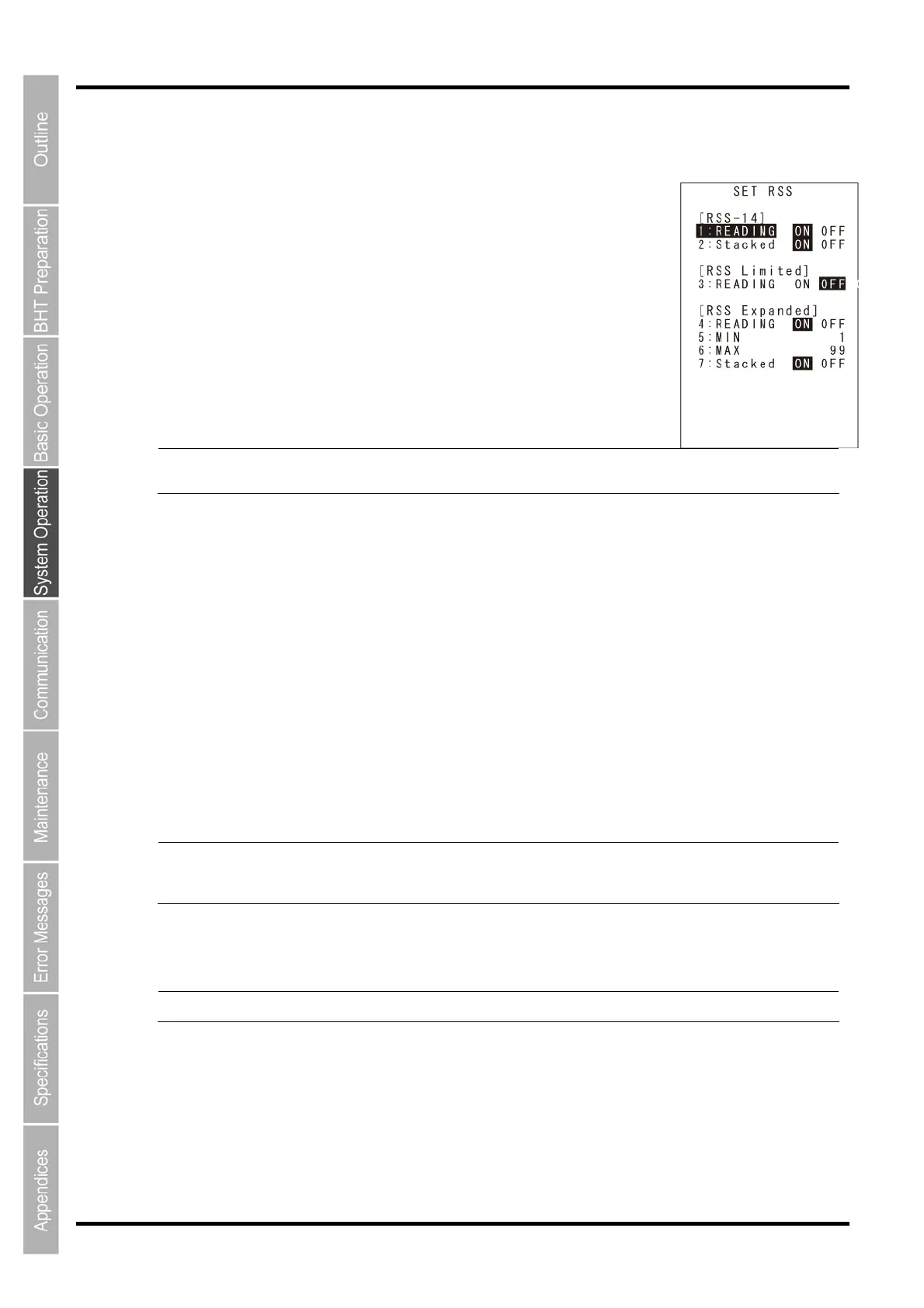

The SET RSS screen is displayed.
(RSS-14, RSS-14 Truncated set)
“1: READING”:
Enable/Disable RSS-14 (GS1 Databar Omnidirectional), RSS-14
Truncated (GS1 Databar Truncated)
“2: Stacked”:
Enable/disable RSS-14 Stacked (GS1 Databar Stacked), RSS-14
Stacked Omnidirectional (GS1 Databar Stacked Omnidirectional)
- Point - To Enable Stacked type, both the “1: READING” and “2: Stacked” need to be enabled.
(RSS-Limited set)
“3: READING”:
Enable/disable RSS-Limited (GS1 Databar Limited)
(RSS-Expanded set)
“4: READING”:
Enable/disable RSS-Expanded (GS1 Databar Expanded)
“5: MIN”:
Set the minimum number of digits of RSS-Expanded (GS1 Databar Expanded), RSS-Expanded
Stacked (GS1 Databar Expanded Stacked)
Setting range: 1–99
“6: MAX”:
Set the maximum number of digits of RSS-Expanded (GS1 Databar Expanded), RSS-Expanded
Stacked (GS1 Databar Expanded Stacked)
Setting range: 1–99
- Point - Make sure that the minimum number of digits is less than the maximum number of digits. I
f
the value of minimum number of digits is larger than the maximum number of digits, erro
r
occurs during the reading.
“7: Stacked”:
Enable/disable RSS-Expanded Stacked (GS1 Databar Expanded Stacked)
- Point - To Enable Stacked type, both the “4: READING” and “7: Stacked” need to be enabled.
2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4] [5] [6] [7]) to select the item to be
set.
3. Use the cursor keys ([◄] [►]) to select settings value.
4. Press the ENT key or BS/C key for the settings value to be valid and then return to the SET
BARCODE screen.
