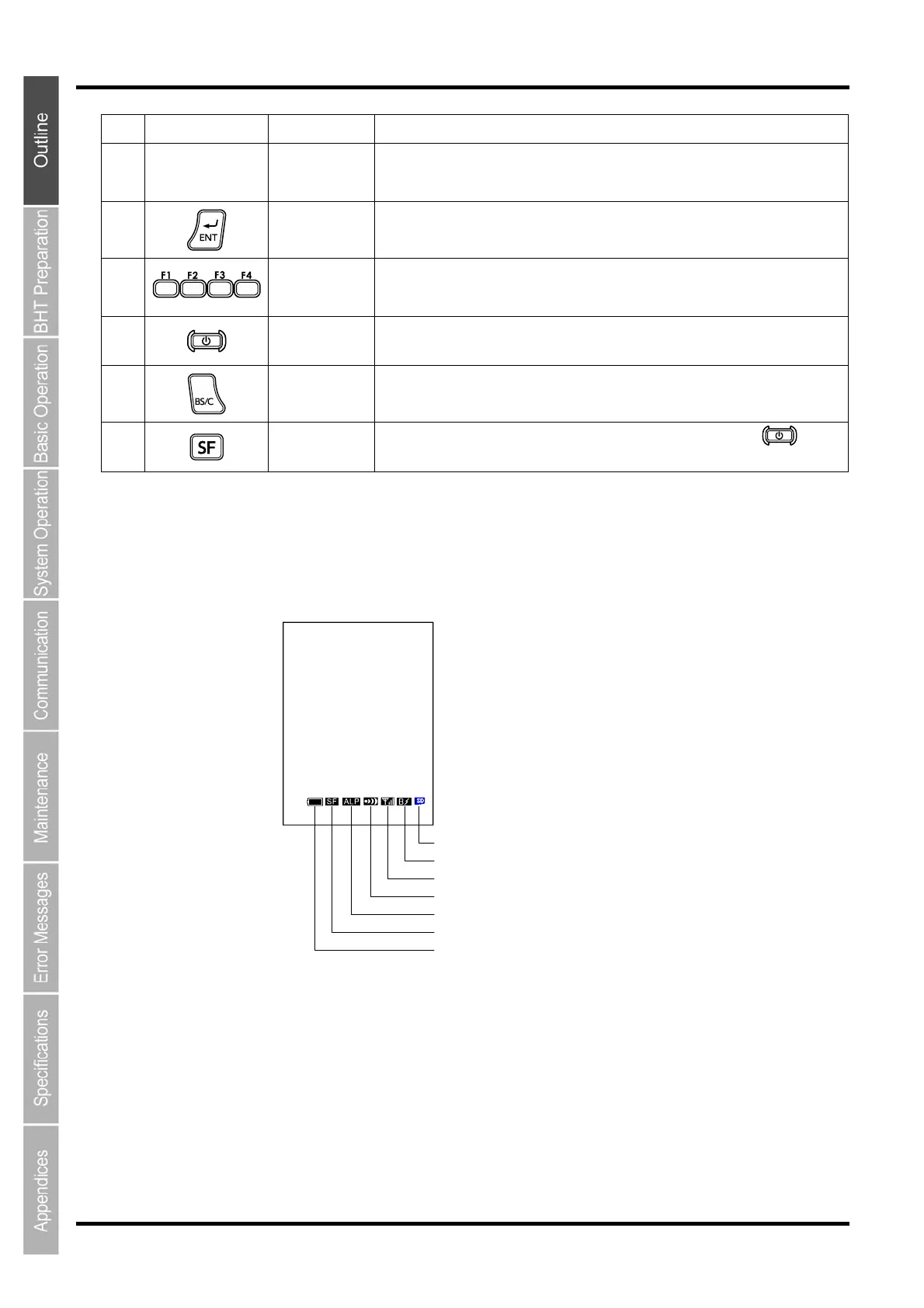

BHT-1300B Series
No. Key Name Function and Description
(6)
Numerical keys
Used to enter data.
(7)
Enter key
Press to finalize entered data or execute operations.
(8)
Function keys
Used to select functions. *Function key functions are assigned at user programs.
Refer to the “BHT-BASIC Programmer’s Manual” for further details
(9)
Power key Turns the BHT power ON or OFF.
(10)
Backspace/clear
key
Deletes the last entered character (backspace). When pressed and held for 1
second or more, cancels entry and returns the LCD display to the previous screen
(clear.)
(11)
Shift key
Used in combination with other keys such as the numerical keys and
key for
special input procedures.
1.2.3 BHT Screen
If the system display is set to ON at the system settings or in the user program, icons display at the bottom of the
screen (default) indicating the key shift status, alphabet entry status, and status of the link with the CU-1311.
Micro-SD card status
Connection status with the Bluetooth® device
Connection status with access point
Link status with CU-1311
lphabet entry status
Key shift status
Battery icon
To Next Page
