73
Chapter 3 5 Margin Slitter Section
3
S2-Y1540

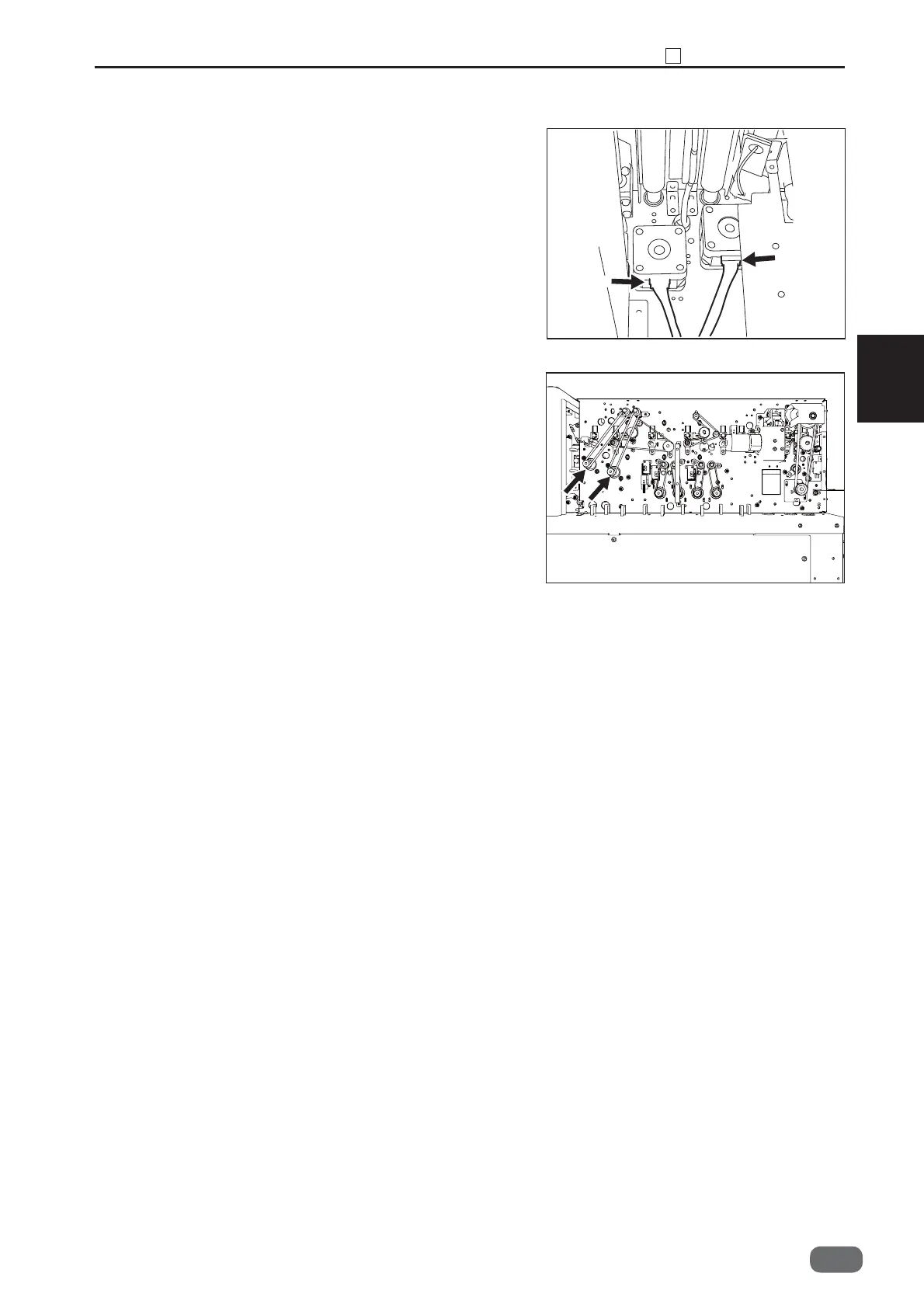

(2) Removing the Margin Slitter Position Motor/Belt
1. Open the front cover.
2. Disconnect the two motor connectors.
3. Remove the cover R.
4. Remove the timing belt.
5. Take out the four screws, and remove the motor.
* After the installation, perform the motor operation
check in HELP Mode: 31.
Connector
Connector
-0
(SeeP.53)
(HELP Mode : 31P.149)
