Duplo DC-616 Service Manual

74
Chapter 3 5 Margin Slitter Section
S2-Y1540

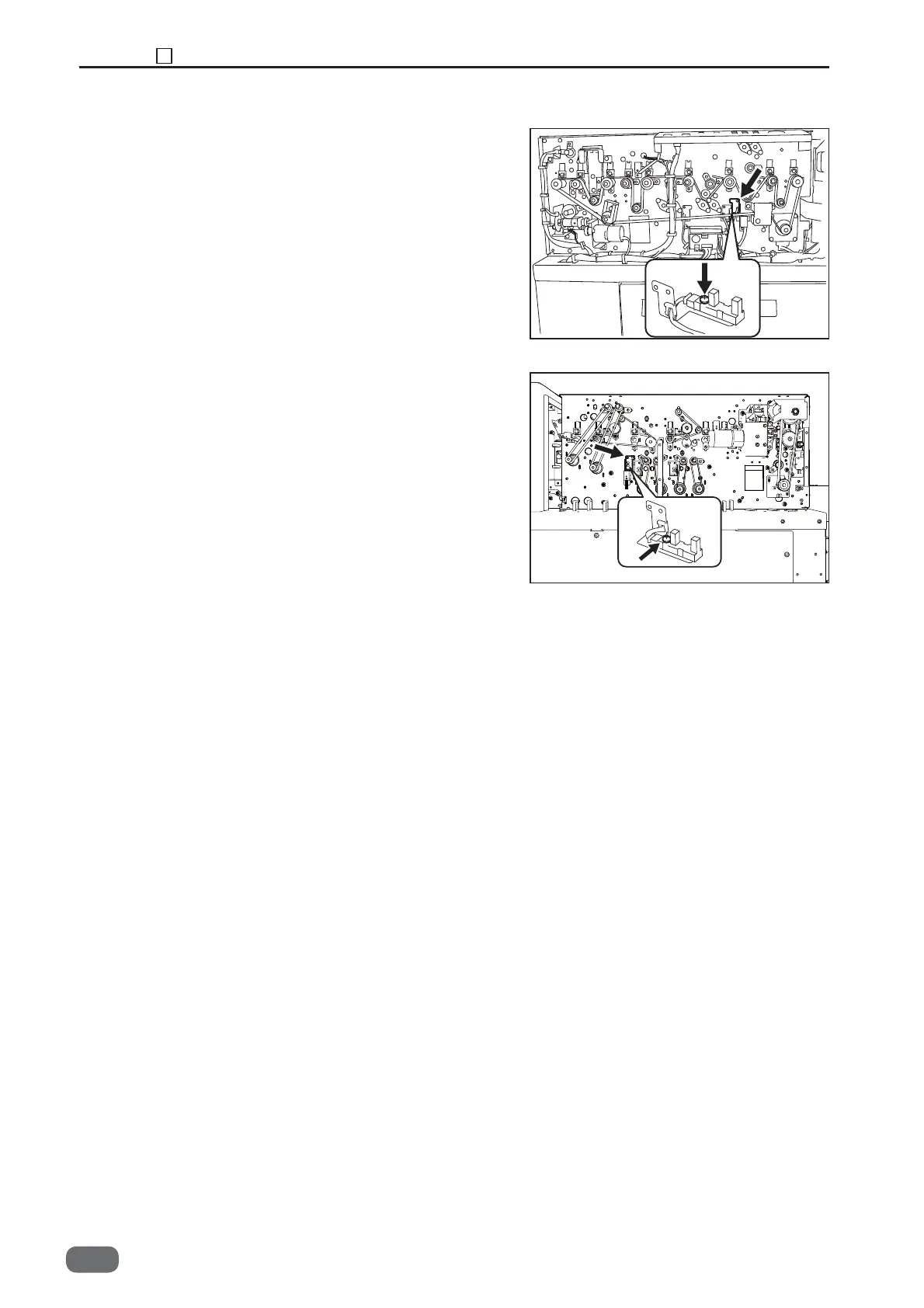

(3) Removing the Margin Slitter Home Position Sensor
1. Remove the cover F.
2. Remove the cover R.
3. Take out one screw (each), and remove the sensor
with the bracket.
4. Take out one screw (each), and remove the sensor
from the bracket.
* Adjustment required at the time of installation
(See→P.103)
-0
(See→P.52)
(See→P.53)
