95
Chapter 3 9 Main Drive Section
3
S2-Y1540
Screw

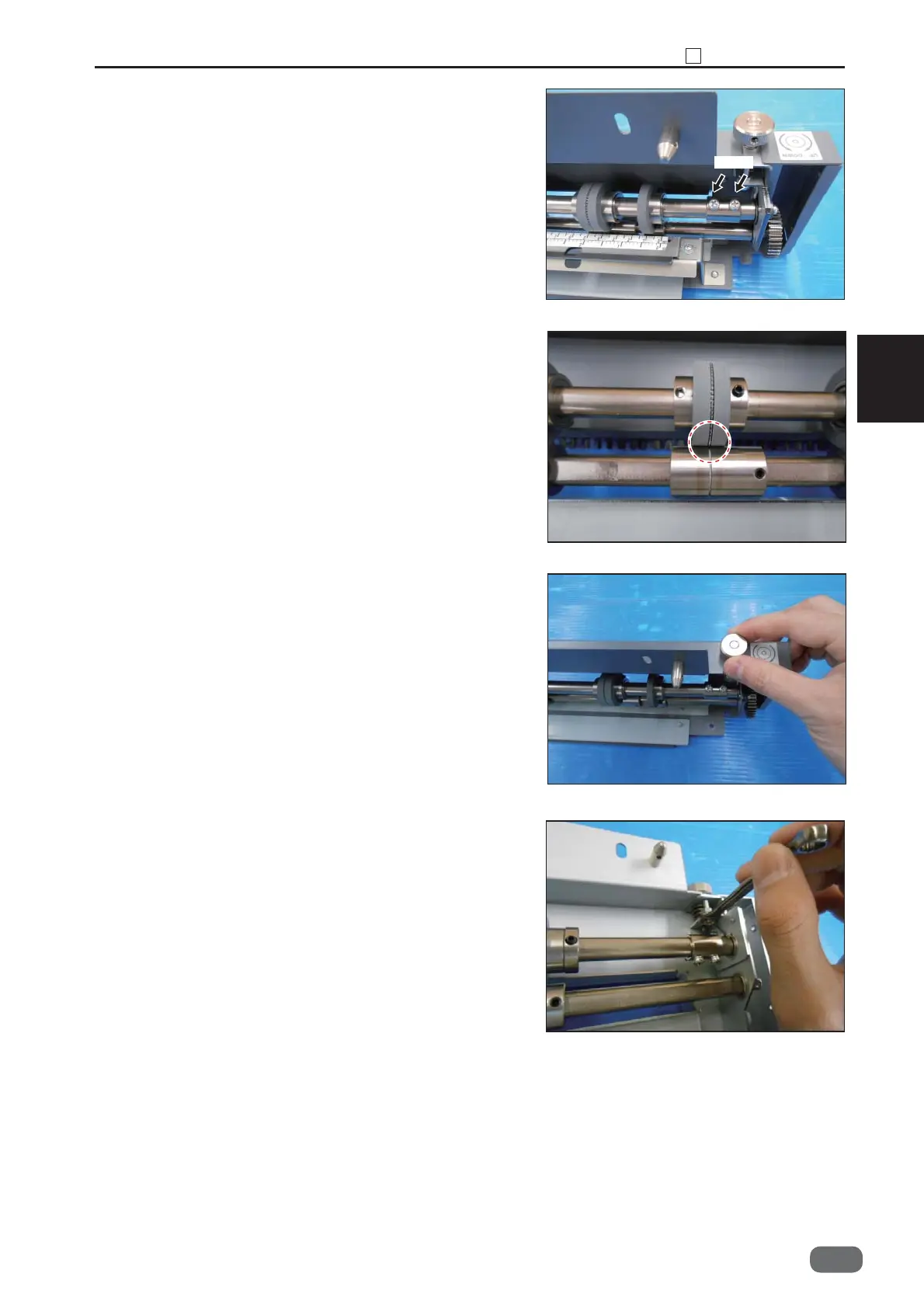

8. Attach the shaft (upper) to the unit in the reverse
order to steps 5 and 6.
9. Move the upper tools so that the both right and left
perforation tools fi t in the grooves of the lower tools,
and move the roll assys to hold the paper.
Then lower the upper tools with the perforation
depth adjustment thumbscrews.
10. When the perforation tool is raised up to the
upper limit position, adjust the screw for the upper
limit stopper to secure at the position where the
perforation tool is inside of the groove of the lower
tool.
11. Secure the perforation tool and the lower tool at
the preferred position with a hexagon socket set
screw.
12. Secure the perforation tool and the lower tool at
the preferred position with a hexagon socket set
screw.
-0
To Next Page
