94

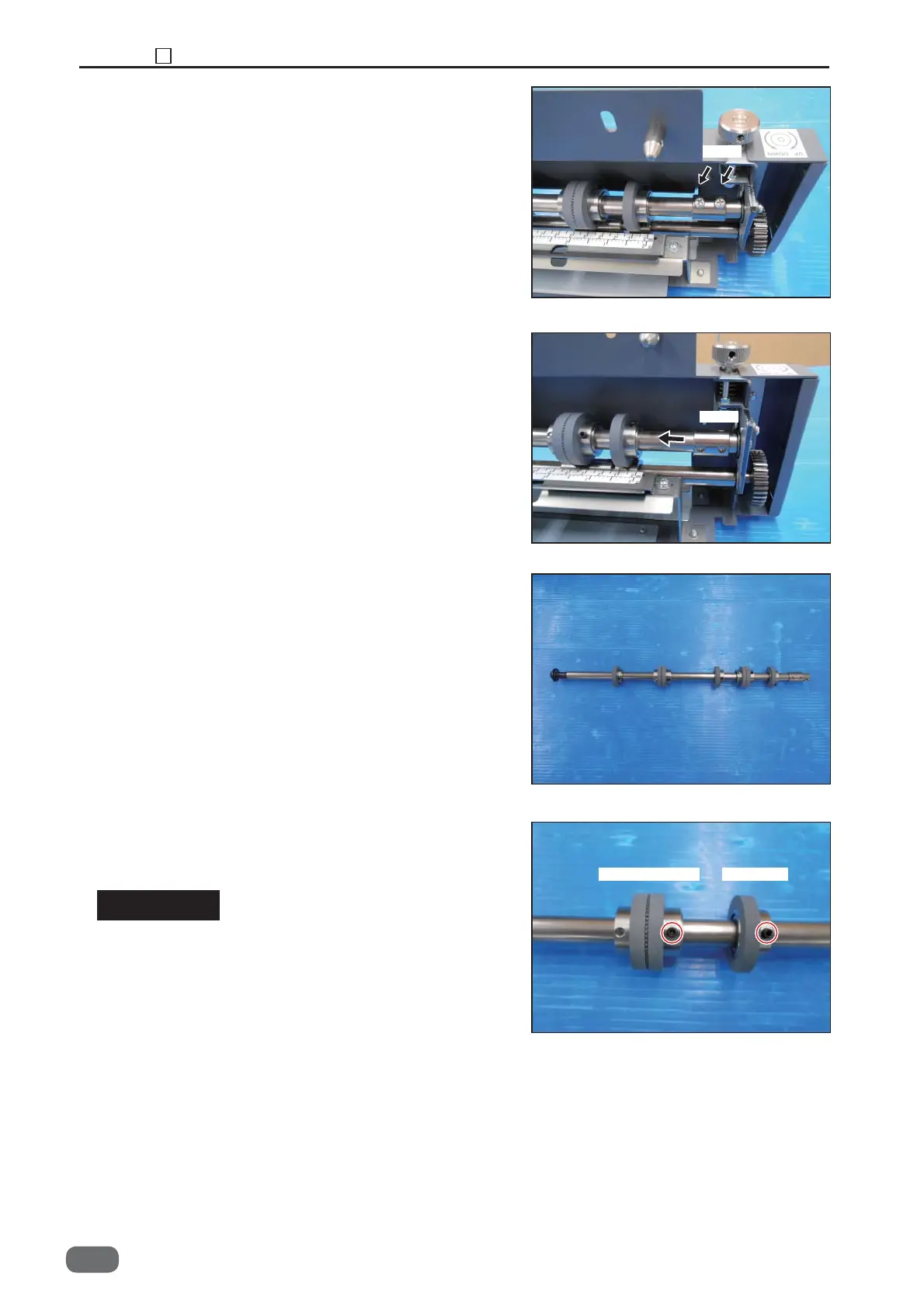

Chapter 3 9 Main Drive Section
S2-Y1540
REFERENCE
Screw
5. Take out the two screws of the joint securing the
shaft (upper).
Joint
6. Slide the joint in step 5 in the direction of the arrow,
and remove the shaft (upper) from the unit.
7. Replace the upper tool assy with a new one.
Upper tool assy Roll assy
When attaching the upper tool assy to the shaft, take
note of the orientation to attach the upper assy and
roll assy.
Loosen the hexagon socket set screws which suit the
supplied hexagon wrench size.
-0
To Next Page
