DURKOPP ADLER 745-35-10 S

To Next Page

To Previous Page

Aligning the machine head

130 Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017

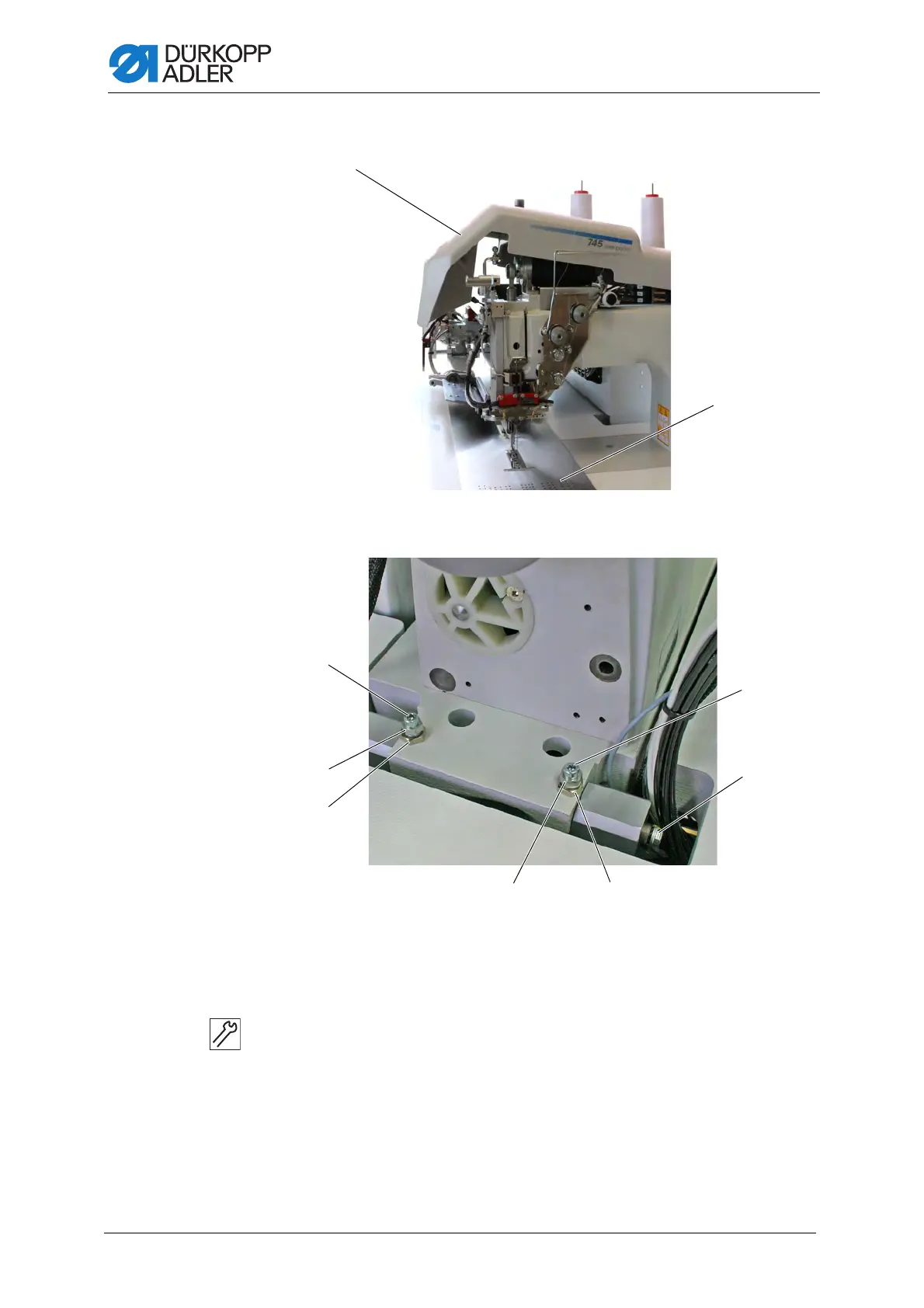

Fig. 112: Aligning machine head (2)

Fig. 113: Aligning machine head (3)

Machine head rear

1. Remove the hood (3).

2. Loosen counternuts (7) and (8).

3. Turn sleeves (6) and (9) evenly using an Allen key while holding the

screws (5) in place.

4. Tighten counternuts (7) and (8).

(3) - Hood (4) - Sliding plate

(5) - Screws

(6) - Sleeve

(7) - Counternut

(8) - Counternut

(9) - Sleeve

(10) - Equipotential bonding

③

④

⑥

⑦

⑧⑨

⑩

⑤
