Aligning the machine head

Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 131

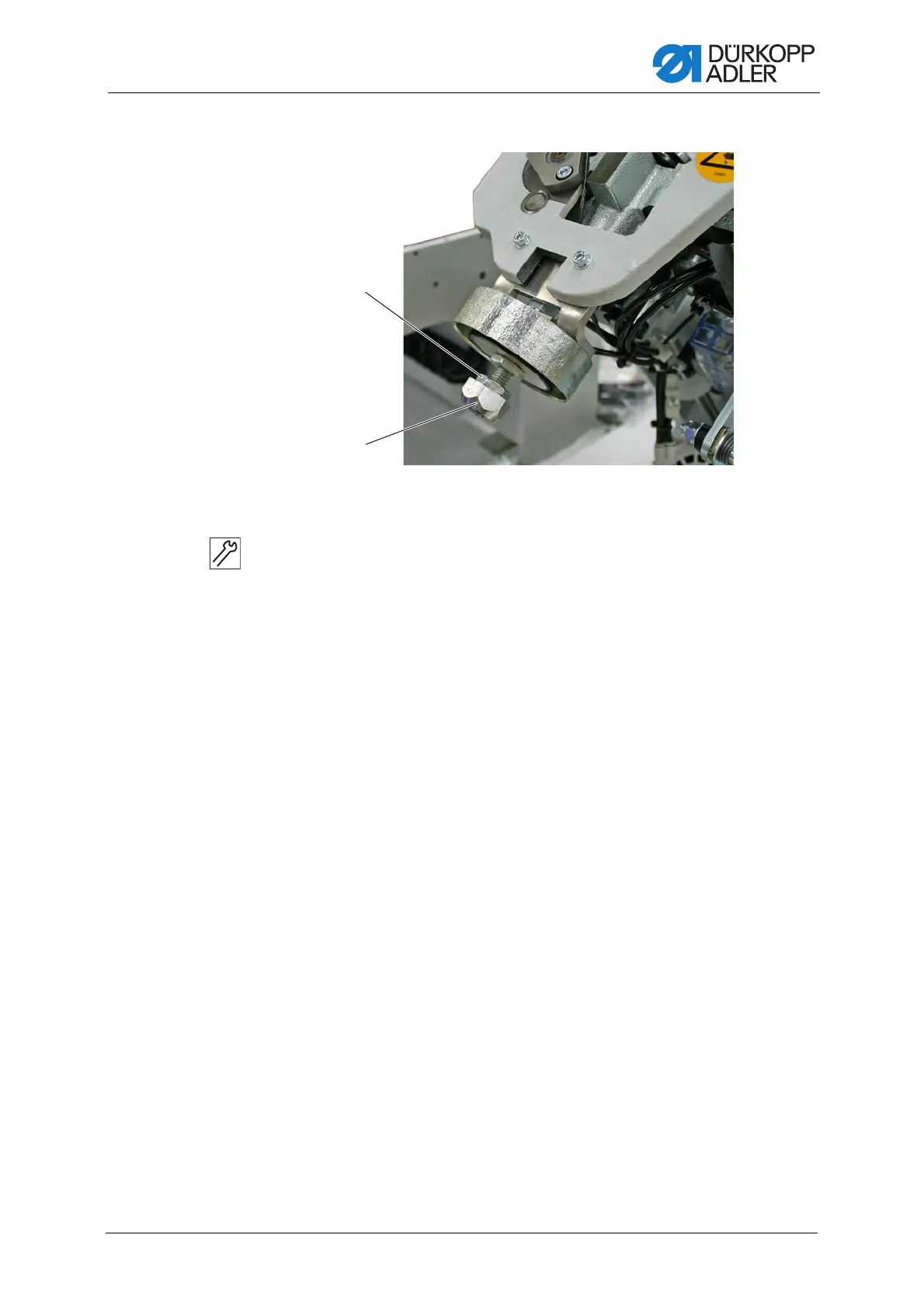

Fig. 114: Aligning machine head (4)

Machine head front

1. Swivel up the machine head ( p. 16).

2. Loosen the counternut (11).

3. Screw in or loosen the centering nut (12) as necessary.

4. Re-tighten the counternut (11).

5. Swivel down the machine head ( p. 18).

(11) - Counternut (12) - Centering nut

⑪

⑫
