8.2.2 Configuration example
Objective:

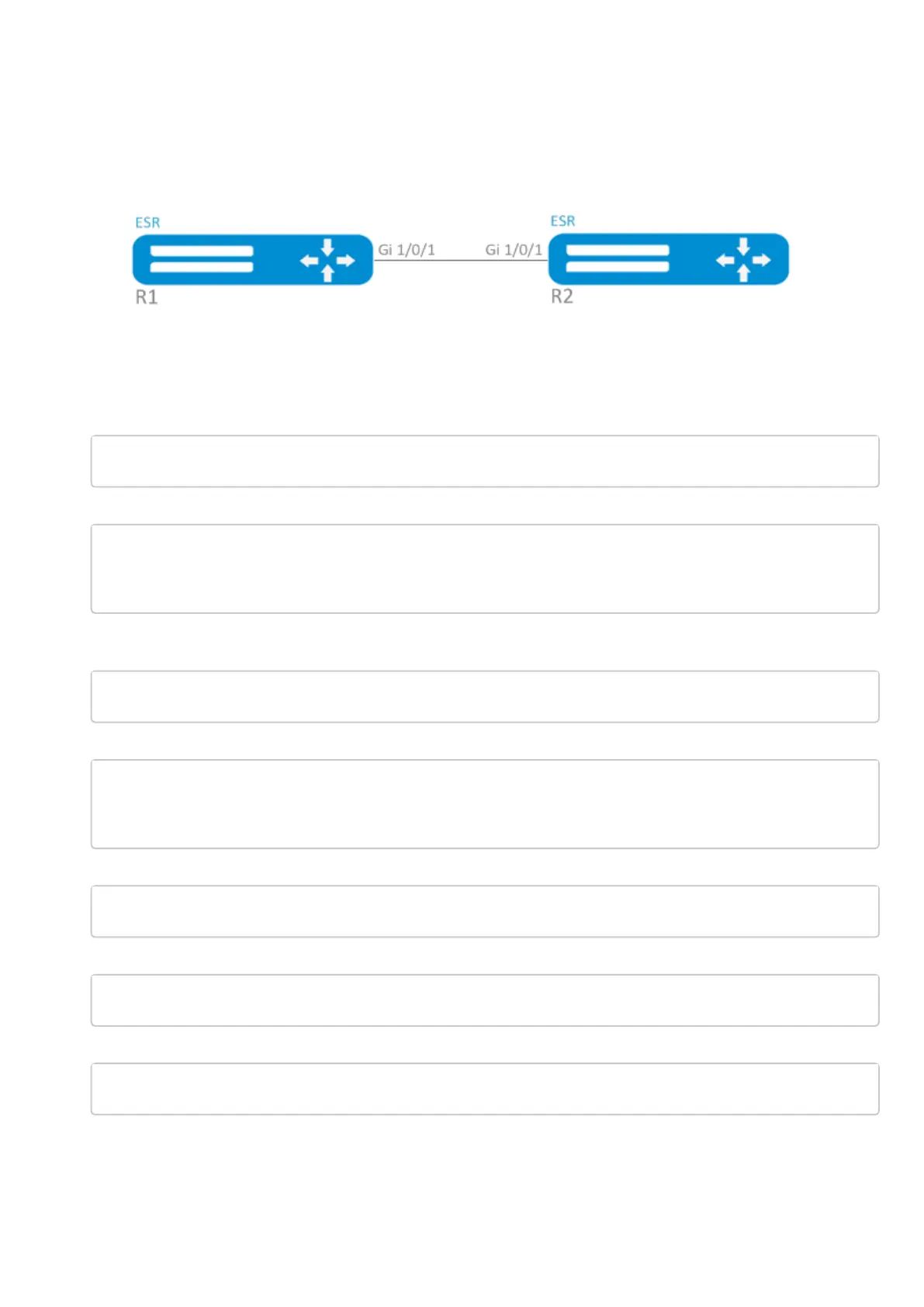

Organize the LLDPDU exchange and proceeding between ESR-1 and ESR-2 routers.
Solution:
R1 configuration
Enable LLDP globally on the router:
esr(config)# lldp enable
Enable the receiving and transmission of LLDPDU on the gi 1/0/1 interface.
esr(config)# interface gigabitethernet 1/0/1
esr(config-if-gi)# lldp receive
esr(config-if-gi)# lldp transmit
R2 configuration
Enable LLDP globally on the router:
esr(config)# lldp enable
Enable the receiving and transmission of LLDPDU on the gi 1/0/1 interface.
esr(config)# interface gigabitethernet 1/0/1
esr(config-if-gi)# lldp receive
esr(config-if-gi)# lldp transmit
To view LLDP neighbors information, use the following command:
esr# show lldp neighbors
To view more detailed information on the certain interface neighbor, use the following command:
esr# show lldp neighbors gigabitethernet 1/0/1
To view LLDP statistics, use the following command:
esr# show lldp statistics
