EPSON AcuLaser C1100 Revision B
TROUBLESHOOTING Printing Quality-related Trouble 264

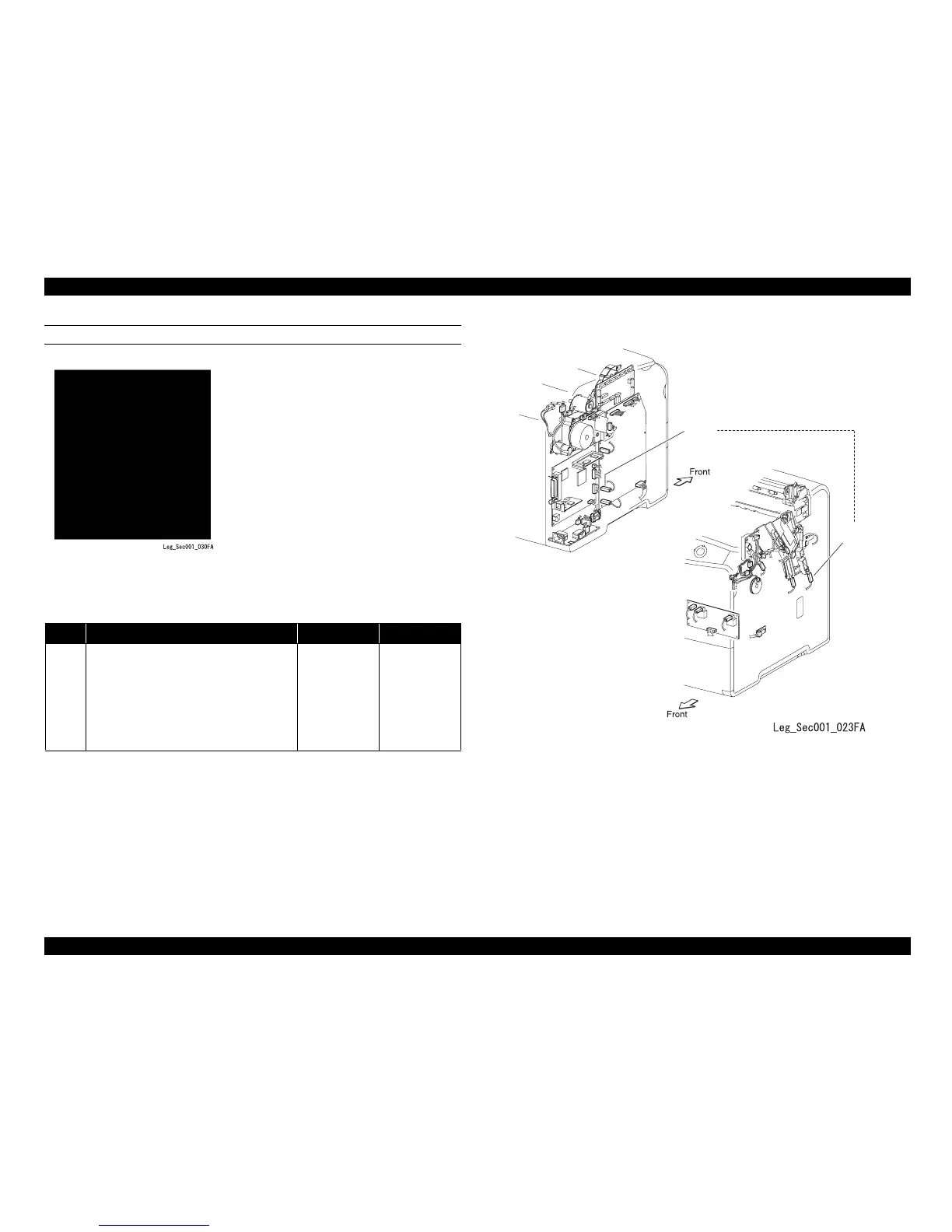

FIP-P18 Entirely Fogged in Black
Before starting troubleshooting, inspect the feed path of the printer paper. Check the
paper feed path for metal staples, paper clips, paper scraps, and other foreign matter.
 Connecting location of the connectors
 Problems
All of the four colors are printed all over the
page resulting in completely black printout.
This occurs due to disconnection of connector
(P/J508) from LV/HVPS.
 ESS and possible parts that caused the error
 WIRE ASSY BCR
 LV/HVPS
Step Check Yes No
1
Check the connectors for LV/HVPS.
Make sure that the connector (P/J508) on LV/
HVPS and connector (P/J514) on BCR are
connected properly.
Print the problem image. Or, execute the test
print.
Was the trouble fixed?
End of
procedure
Replace “ESS
and possible
parts that caused
the error”.
P/J508
P/J514
(BCR)
