EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY COVER 285
4.2.3 COVER FUSER
REMOVAL
1. Open COVER FUSER.
2. Draw out the COVER RH boss from the hole on COVER FUSER while pushing
COVER RH outward, and remove COVER FUSER.
REINSTALLATION
1. With COVER FUSER opened, insert the hole on the left side of COVER FUSER
into the COVER LH boss while inserting the protrusion on the left side of COVER
FUSER into the inside of COVER LH, and insert the COVER RH boss into the
hole on the right side of COVER FUSER to attach while inserting the protrusion
on the right side of COVER FUSER into the inside of COVER RH.
2. Close COVER FUSER.

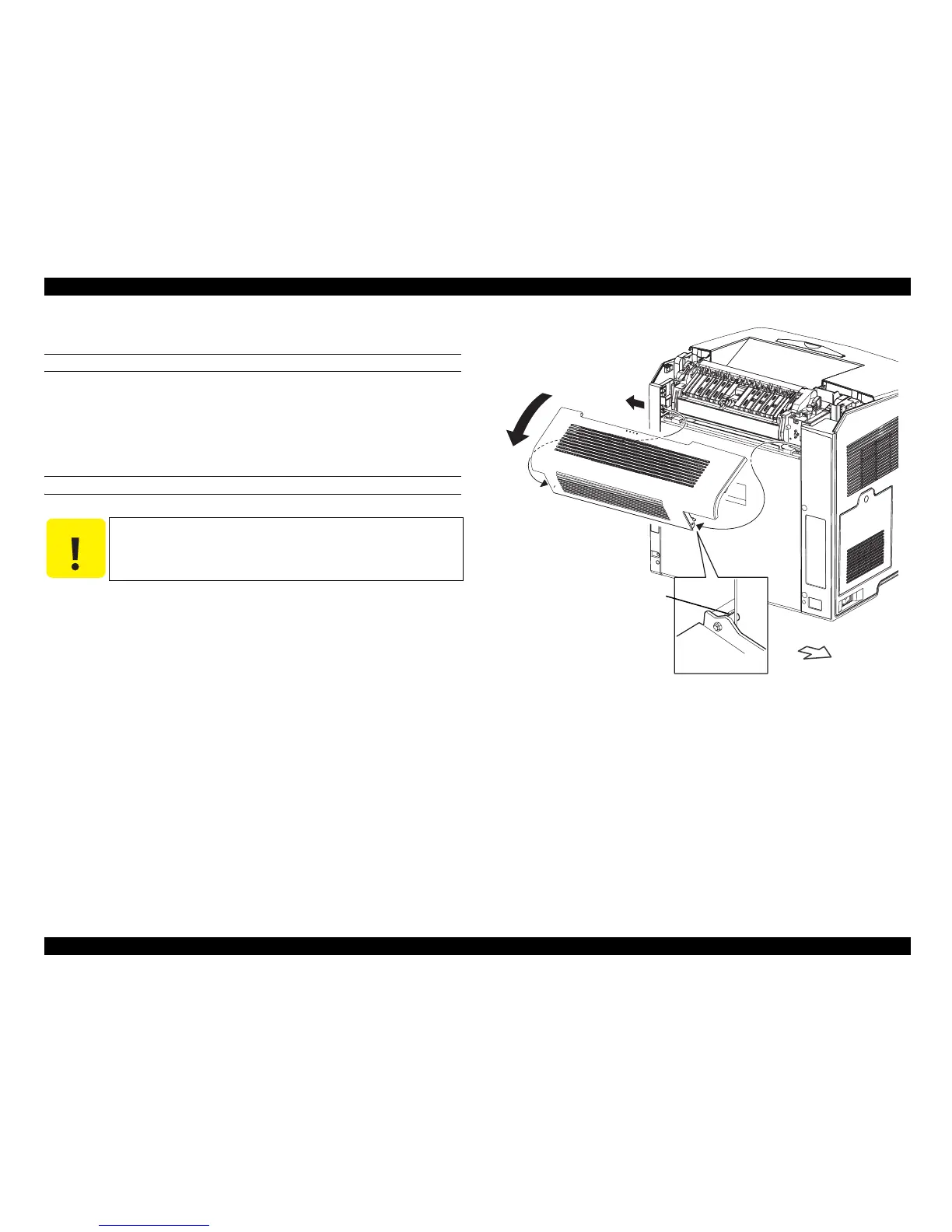

Figure 4-5. Removal of COVER FUSER
C A U T I O N
When performing the following work, firmly insert the protrusions
on the left and right sides of COVER FUSER into the respective
inner sides of COVER LH and COVER RH.
Leg_Sec03_005EB
CAUTION
1)
2)-2
2)-1
LEFT
Protrusion
