Epson AcuLaser C1100 User Manual

EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY XERO 373
4.6.9 BCR CLN XERO ASSY
REMOVAL
1. Remove COVER ASSY RH. (p.301)
2. Remove FRAME ASSY-PH. (p.327)
3. Disconnect connector (P/J617) from BCR CLN XERO ASSY on the right side of
the main unit.
4. Unclamp the clamp on the right side of the main unit, and move the harness on
BCR CLN XERO ASSY to inside the main unit from the hole on the right side of
the main unit.
5. Remove the 2 screws (silver, with flange, 6 mm) fastening BCR CLN XERO
ASSY to the main unit.
6. Remove BCR CLN XERO ASSY from the main unit.
REINSTALLATION
1. Match the boss on BCR CLN XERO ASSY with the hole on the main unit, and
attach BCR CLN XERO ASSY.
2. Fasten BCR CLN XERO ASSY to the main unit with the 2 screws (silver, with
flange, 6 mm).
3. Take out the harness of BCR CLN XERO ASSY to the outside from the hole on
the right side of the main unit, and connect connector (P/L617) for BCR CLN
XERO ASSY to the harness.
4. Fasten the harness on BCR CLN XERO ASSY with the clamp on the right side of
the main unit.
5. Attach FRAME ASSY-PH. (p.327)
6. Attach COVER ASSY RH. (p.301)

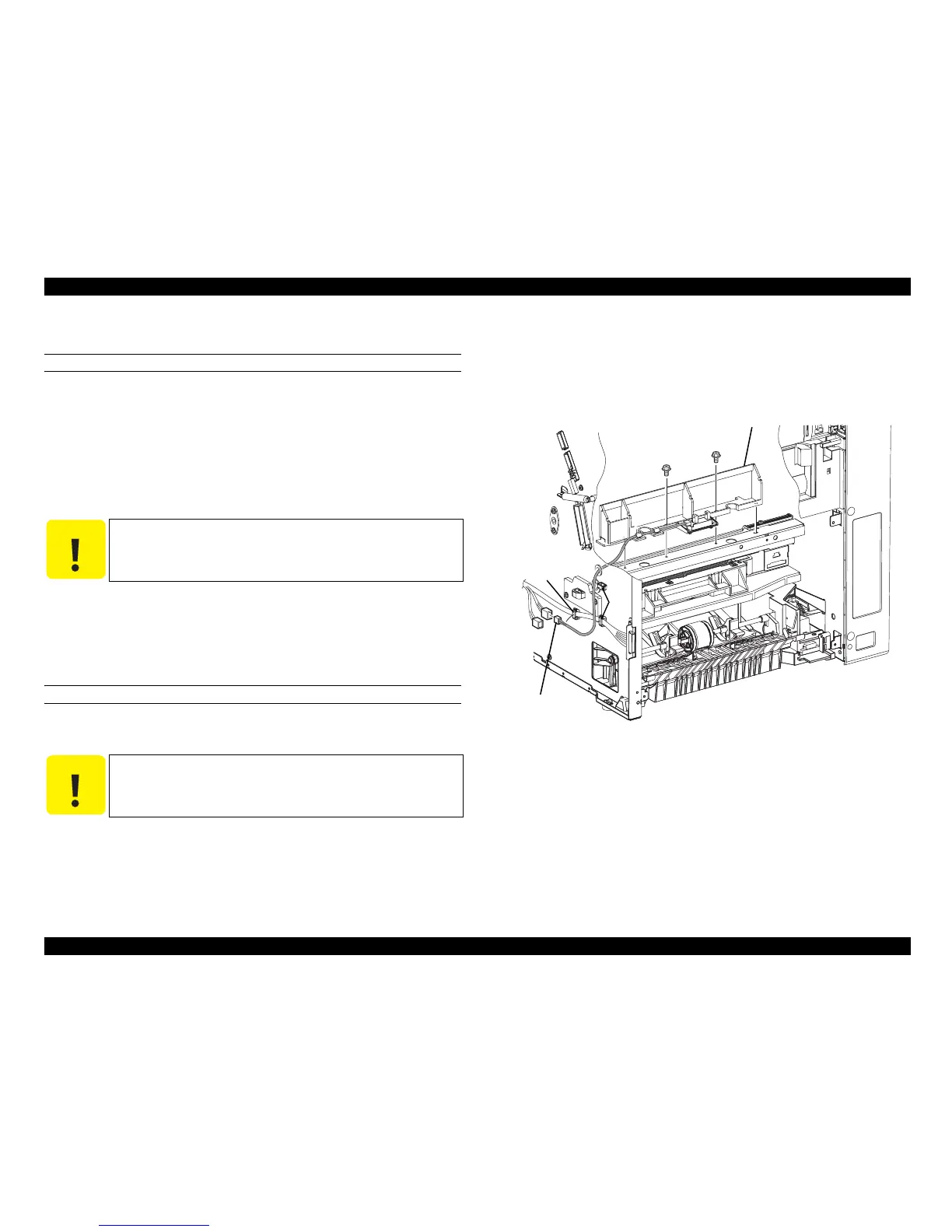

Figure 4-84. Removal of BCR CLN XERO ASSY
C A U T I O N
When performing the following work, press LATCH ROTARY on
LATCH ASSY-ROTARY to release the latch, turn FRAME ASSY-
ROTARY by hand, and move HOUSING ASSY-DEVE to prevent
contact with MAG ROLL.
C A U T I O N
When performing the following work, press LATCH ROTARY on
LATCH ASSY-ROTARY to release the latch, turn FRAME ASSY-
ROTARY by hand, and move HOUSING ASSY-DEVE to prevent
contact with MAG ROLL.
Leg_Sec03_084EB
6)
3)
4)
4)
5)
5)
