4.12.10 MOTOR ASSY DUP INV
REMOVAL
1. Remove DUPLEX ASSY. (p.412)
2. Remove COVER-L DUP. (p.414)
3. Remove the 4 screws (silver, with flange, tapping, 10mm) fastening BRACKET-
MOTO INV to DUPLEX ASSY.
4. Remove BRACKET-MOTO INV from DUPLEX ASSY together with MOTOR
ASSY DUP INV.
5. Disconnect connector (P/J612) of MOTOR ASSY DUP INV from BRACKET-
MOTO INV.
6. Remove the 4 screws (silver, 5mm) fastening MOTOR ASSY DUP INV to
BRACKET-MOTO INV.
7. Remove MOTOR ASSY DUP INV from BRACKET-MOTO INV.
REINSTALLATION
1. Match the harness side of MOTOR ASSY DUP INV with the mark on
BRACKET-MOTO INV, and attach to MOTOR ASSY DUP INV.
2. Fasten MOTOR ASSY DUP INV to BRACKET-MOTO INV with the 4 screws
(silver, 5 mm).

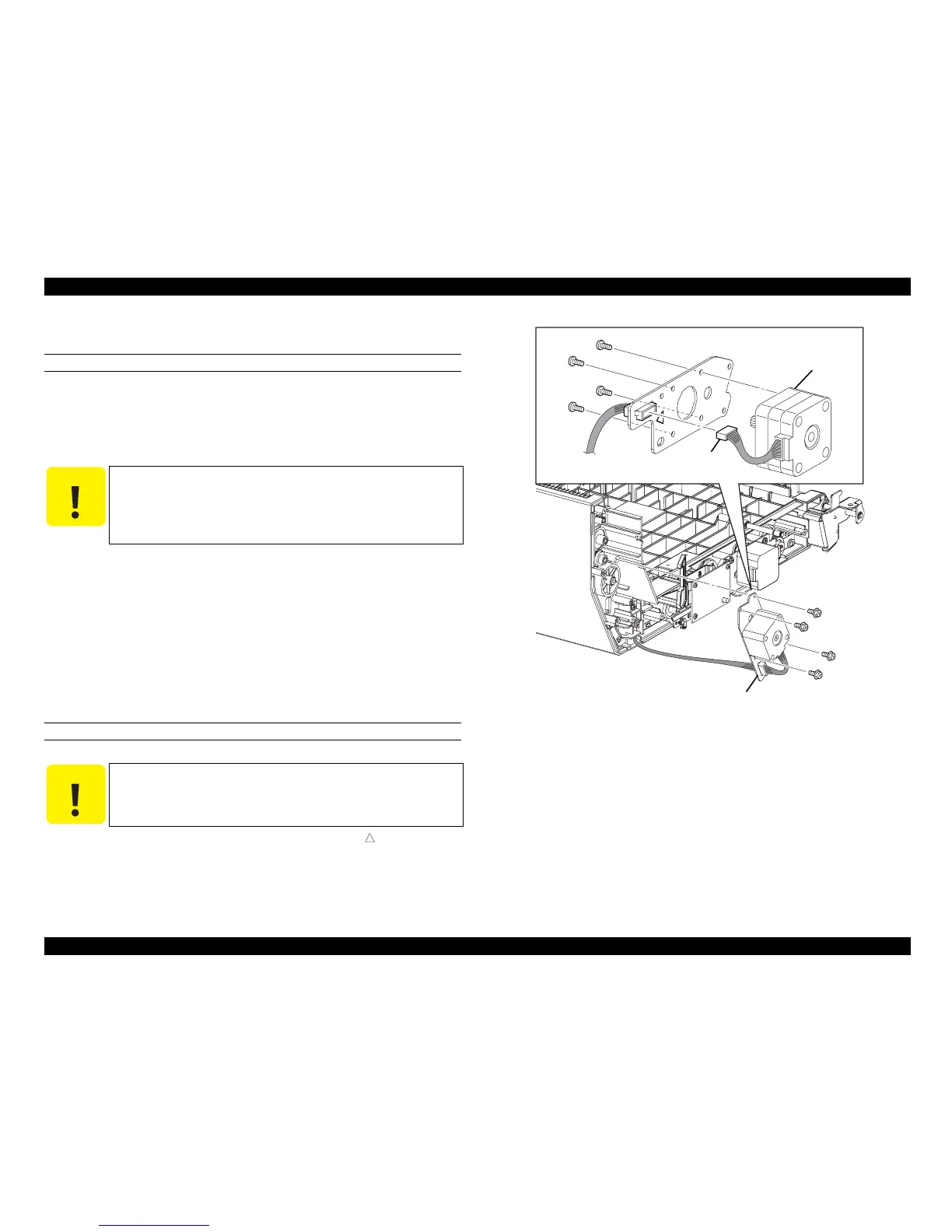

Figure 4-125. Removal of MOTOR ASSY DUP INV
C A U T I O N
 When performing the following work, take care not to remove
DUPLEX ASSY and BRACKET-MOTO INV too far as they
are connected by a harness.
 When performing the following work, take care not to drop or
lose gears, and other parts.
C A U T I O N
When performing the following work, pay attention to the
attachment direction of MOTOR ASSY DUP INV.
Leg_Sec03_125FA
6)
7)
3)
3)
3)
3)
4)
5)
6)
6)
6)
