EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY MSI 309
4.3.4 CHUTE MSI
REMOVAL
1. Remove FRAME ASSY-PH. (p.327)
2. Bend down CHUTE MSI, and draw out the right-side boss on CHUTE MSI from
the right-side hole on MSI ASSY to remove CHUTE MSI.
REINSTALLATION
1. Insert the left-side boss on CHUTE MSI into the left-side hole of MSI ASSY, then
bend down CHUTE MSI, insert the right-side boss of CHUTE MSI, and attach
CHUTE MSI.
2. Attach FRAME ASSY-PH. (p.327)

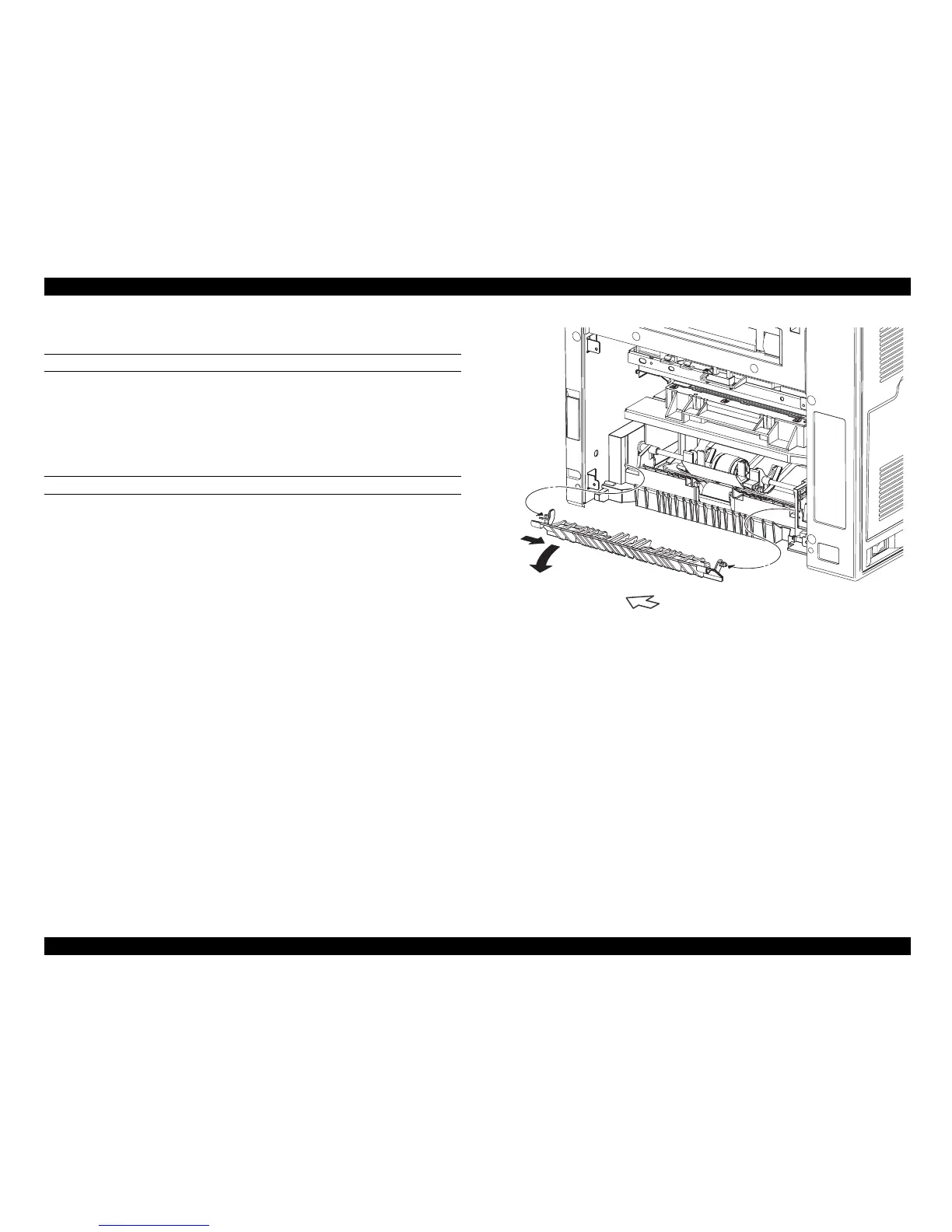

Figure 4-27. Removal of CHUTE MSI
Leg_Sec03_044EB
2)-1
2)-2
RIGHT
