EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY DUPLEX 433
4.12.17 SUPPORT DUP
REMOVAL
1. Remove DUPLEX ASSY. (p.412)
2. Remove the KL ring fastening SUPPORT DUP to the shaft on DUPLEX ASSY.
3. Remove SUPPORT DUP from the shaft on DUPLEX ASSY.
REINSTALLATION
1. Attach SUPPORT DUP to the shaft on DUPLEX ASSY.
2. Fasten SUPPORT DUP to the shaft on DUPLEX ASSY with the KL ring.
3. Attach DUPLEX ASSY. (p.412)

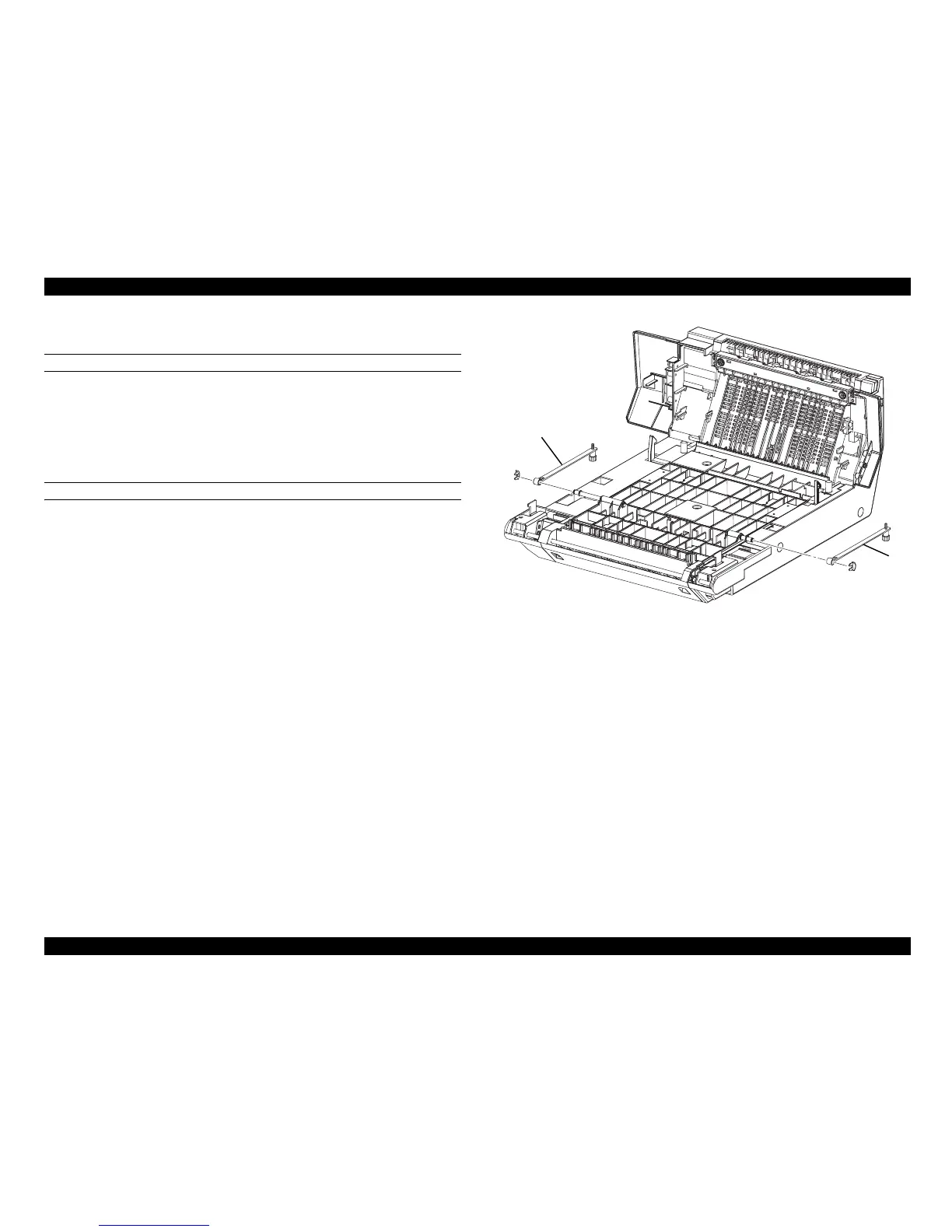

Figure 4-133. Removal of SUPPORT DUP
Leg_Sec03_132FA
2)
2)
3)
3)
