Epson AcuLaser C1100 User Manual

EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY DRIVE 397
4.10.5 MOT ASSY ROT
REMOVAL
1. Remove COVER ASSY RH. (p.301)
2. Remove COVER ASSY LH. (p.295)
3. Remove COVER MSI. (p.291)
4. Remove COVER FRONT L and COVER FRONT ASSY U. (p.292)
5. Remove LV/HVPS. (p.407)
6. Unclamp the clamp fastening WIRE ASSY DEVE, and remove WIRE ASSY
DEVE.
7. Disconnect connector (P/J433) from PWB ASSY ROT.
8. Remove the 4 screws (silver, with flange, 6 mm) fastening MOT ASSY ROT to
the main unit.
9. Remove MOT ASSY ROT from the main unit.
REINSTALLATION
1. Match the boss on MOT ASSY ROT with the hole on the main unit, and attach.
2. Fasten MOT ASSY ROT to the main unit with the 4 screws (silver, with flange, 6
mm).
3. Connect connector (P/J433) to PWB ASSY ROT.
4. Fasten WIRE ASSY DEVE with the clamp.
5. Attach LV/HVPS. (p.407)
6. Attach COVER FRONT L and COVER FRONT ASSY U. (p.292)
7. Attach COVER MSI. (p.291)
8. Attach COVER ASSY LH. (p.295)
9. Attach COVER ASSY RH. (p.301)

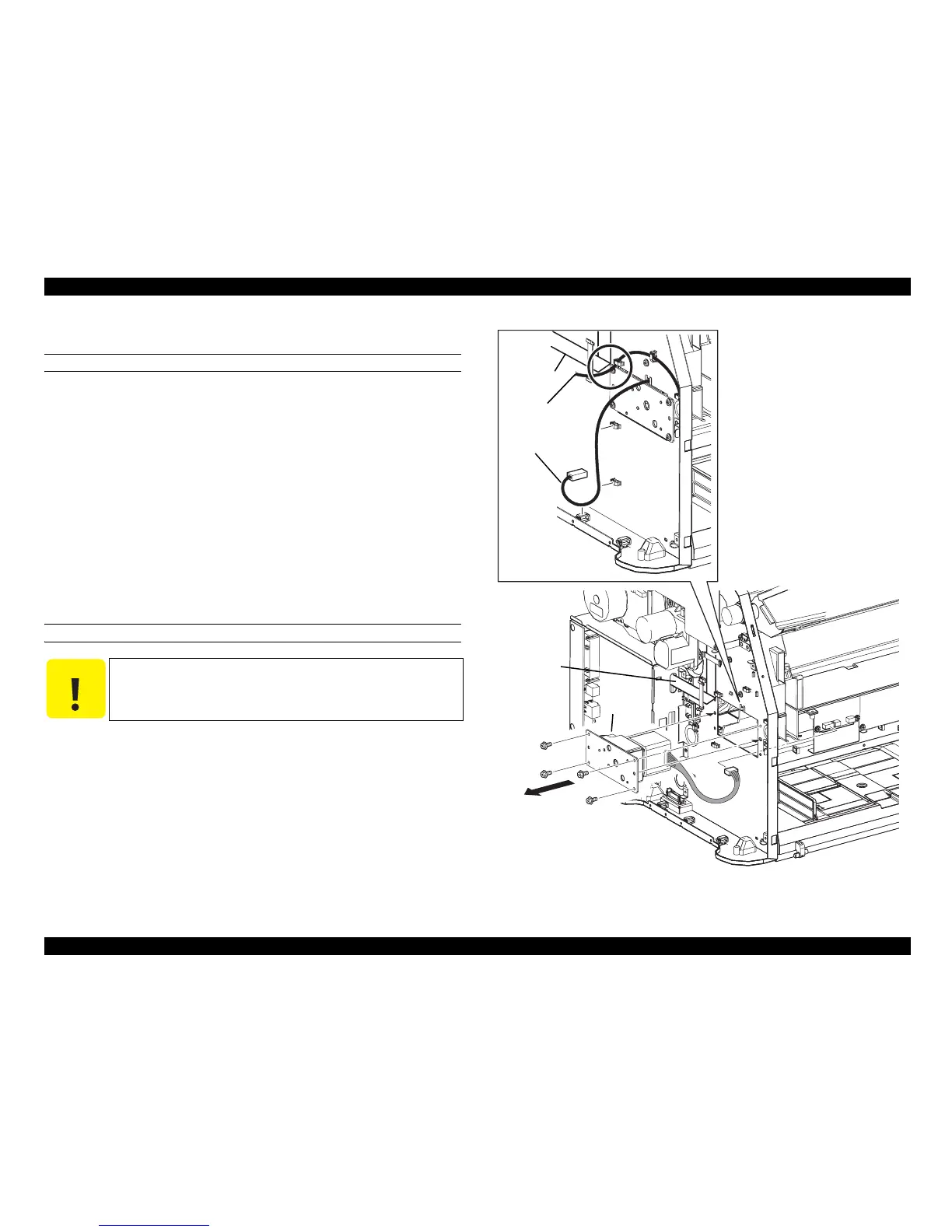

Figure 4-103. Removal of MOT ASSY ROT
C A U T I O N
When doing the following work, take care so that WIRE ASSY
DEVE, WIRE ASSY BTR, and FFC-ASSY ESS are not sandwiched
between the main unit and MOT ASSY ROT.
Leg_Sec03_101EB
CAUTION
8)
8)
8)
8)
6)
7)
9)
FFC-ASSY
ESS
WIRE
ASSY BTR
WIRE ASSY
DEVE
FFC-ASSY
ESS
