Epson AcuLaser C1100 - Cover Low-Dup Trans

EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY DUPLEX 436
4.12.20 COVER LOW-DUP TRANS
REMOVAL
1. Remove DUPLEX ASSY. (p.412)
2. Remove the 2 screws (silver, with flange, tapping, 10mm) fastening COVER
LOW-DUP TRANS to DUPLEX ASSY.
3. Remove COVER LOW-DUP TRANS from DUPLEX ASSY.
REINSTALLATION
1. Match the protrusion on COVER LOW-DUP TRANS with the concave portion on
the left side of DUPLEX ASSY, and the concave portion on COVER LOW-DUP
TRANS with the protrusion on the right side of DUPLEX ASSY, and attach
COVER LOW-DUP TRANS so that SHAFT HINGE is nipped by it.
2. Fasten COVER LOW-DUP TRANS to DUPLEX ASSY with the 2 screws (silver,
with flange, tapping, 10mm).
3. Attach DUPLEX ASSY. (p.412)

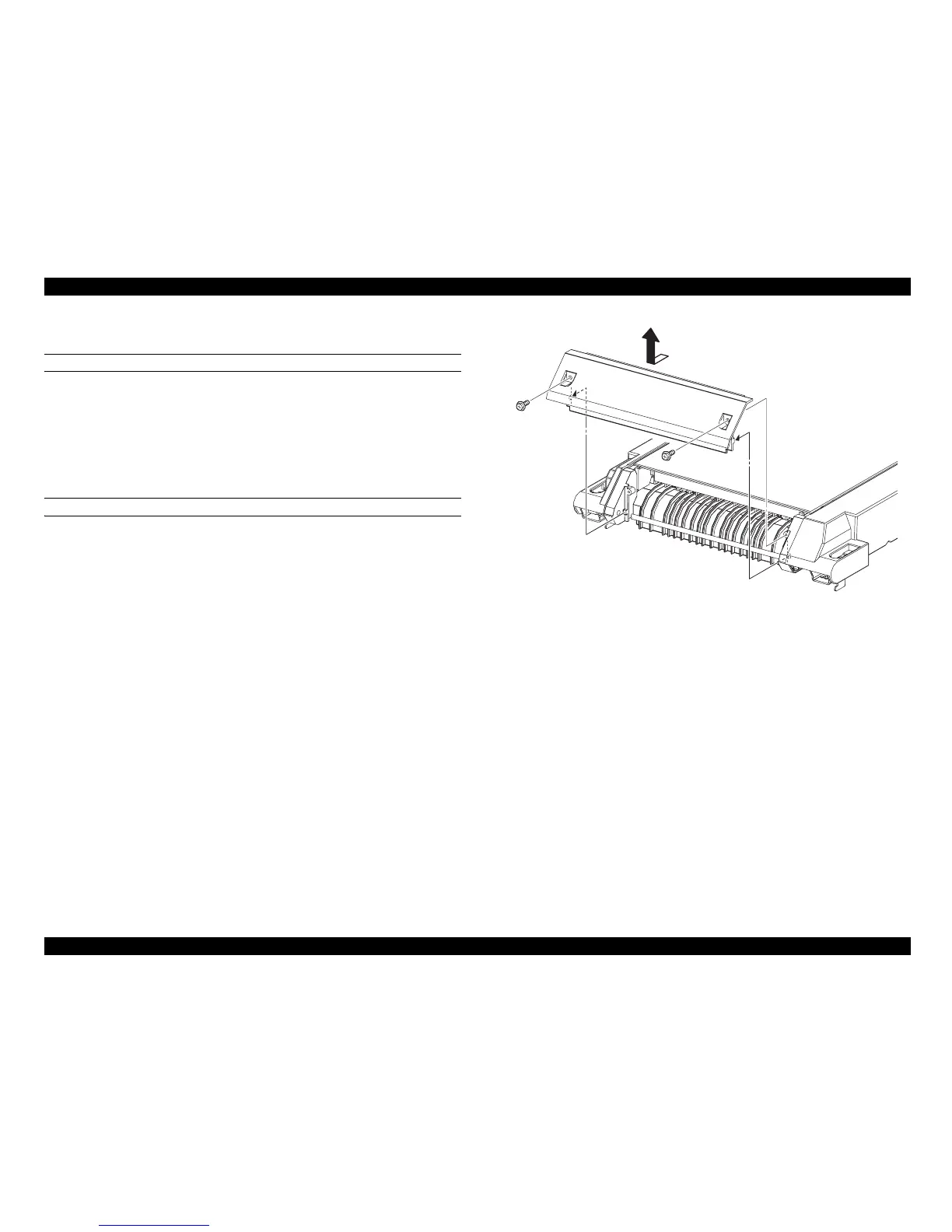

Figure 4-136. Removal of COVER LOW-DUP TRANS
Leg_Sec03_135FA
3)
2)
2)
