Epson AcuLaser C1100 User Manual

EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY 500 PAPER CASSETTE & 500 PAPER FEEDER 478
4.13.28 SENSOR NO PAPER
REMOVAL
1. Remove 500 PAPER CASSETTE ASSY. (p.446)
2. Remove COVER LEFT 500. (p.453)
3. Remove CLUTCH ASSY FEED. (p.461)
4. Remove DRIVE ASSY FEED. (p.458)
5. Remove HOUSING ASSY FEED. (p.476)
6. Remove the 2 screws (silver, tapping, 8 mm) fastening COVER FEED to
HOUSING ASSY FEED.
7. Remove COVER FEED from HOUSING ASSY FEED.
8. Unhook the 3 hooks fastening SENSOR NO PAPER to HOUSING ASSY FEED,
and remove SENSOR NO PAPER.
9. Disconnect connector (P/J119) from SENSOR NO PAPER.
REINSTALLATION
1. Connect connector (P/J119) to SENSOR NO PAPER.
2. Match the hook on SENSOR NO PAPER with the attachment position while
inserting ACTUATOR NO PAPER CST into the sensor on SENSOR NO PAPER,
and attach to HOUSING ASSY FEED.
3. Attach COVER FEED to HOUSING ASSY FEED.
4. Fasten COVER FEED to HOUSING ASSY FEED with the 2 screws (silver,
tapping, 8 mm).
5. Attach HOUSING ASSY FEED. (p.476)
6. Attach DRIVE ASSY FEED. (p.458)
7. Attach CLUTCH ASSY FEED. (p.461)
8. Attach COVER LEFT 500. (p.453)
9. Attach 500 PAPER CASSETTE ASSY. (p.446)

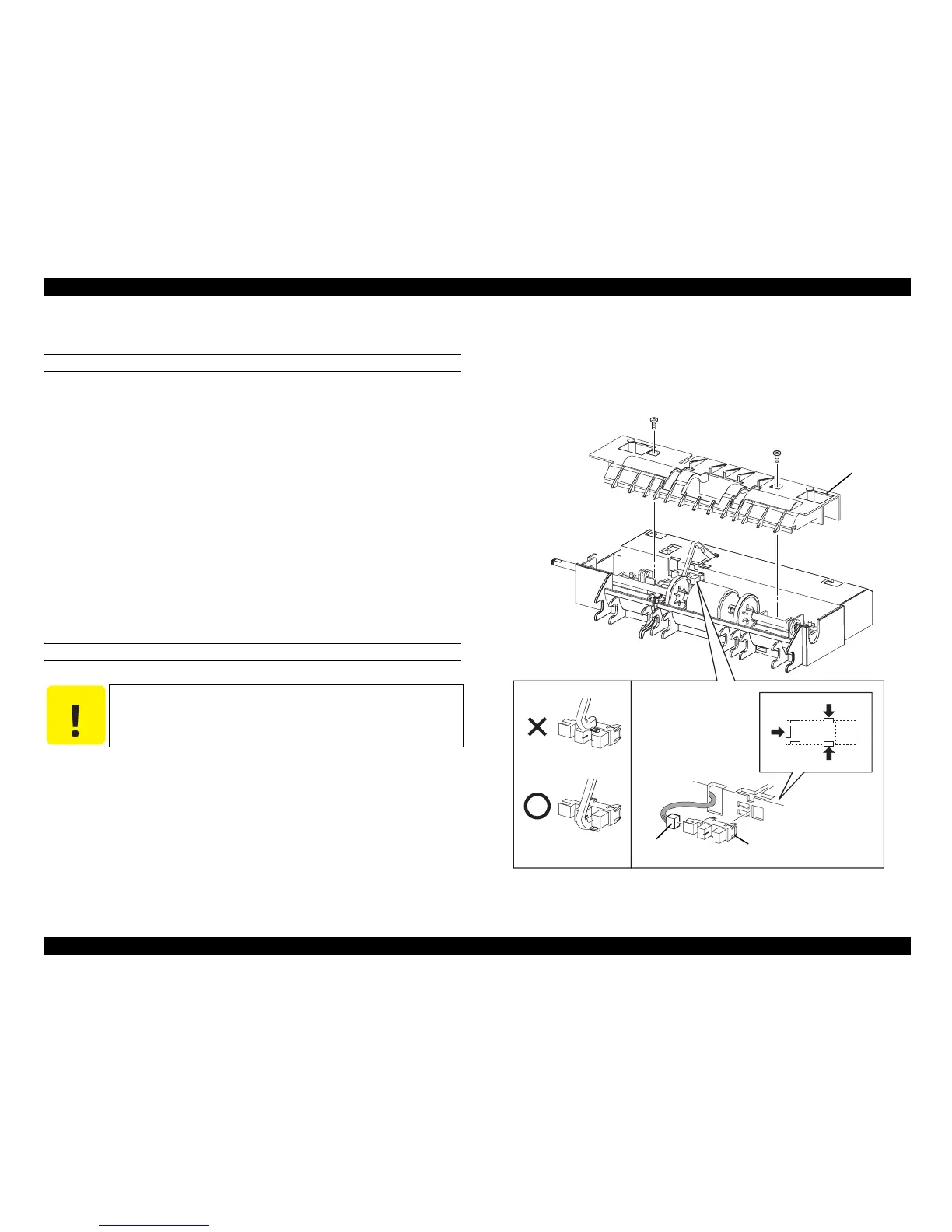

Figure 4-175. Removal of SENSOR NO PAPER
C A U T I O N
When performing the following work, pay attention to the
positional relationship between SENSOR NO PAPER and
ACTUATOR NO PAPER CST.
Leg_Sec03_033FA
CAUTION
6)
7)
9)
8)-2
8)-1
6)

Epson AcuLaser C1100 Specifications

General

Internal memory	32 MB
Maximum internal memory	256 MB
Sound pressure level (printing)	55 dB
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
Color	Yes
Print technology	Laser
Time to first page (black, normal)	9 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
I/O ports	IEEE 1284 USB 2.0
Power requirements	220-240V
Standard media sizes	A4, A5, B5, LT, GLT, HLT, EXE, C5, C6, COM10, DL, MON, ISO-B5; 90 x 139.7mm - 216 x 297mm
Minimum system requirements	Pentium II 233MHz [Pentium II 450MHz], 64MB [128MB] IEEE1284 ECP mode, USB (Windows 98/ME/2000/XP) PowerPC G3 233MHz [G4 500MHz], 64MB [128MB]
Compatible operating systems	Mac OS X 10.1.2 Mac OS Classic 9.0 Windows 2003 Server Windows 2000 Windows XP Windows NT 4.0 Windows Me Windows 98 Windows 95
Sustainability certificates	ENERGY STAR
Total input capacity	180 sheets
Total output capacity	250 sheets
Maximum input capacity	680 sheets
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	5 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Maximum duty cycle	45000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	445 x 445 x 439 mm
