EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY XERO 367
4.6.5 GUIDE CRU ASSY AD
REMOVAL
1. Remove COVER ASSY RH. (p.301)
2. Remove 2ND BTR ASSY. (p.348)
3. Remove FRAME ASSY-PH. (p.327)
4. Remove BCR CLN XERO ASSY. (p.373)
5. Remove SENSOR TR-0. (p.361)
6. Remove the 2 screws (silver, with flange, tapping, 6 mm) fastening PLATE-TR-0
to GUIDE CRU ASSY D and GUIDE CRU ASSY AD.
7. Remove PLATE-TR-0 from GUIDE CRU ASSY D and GUIDE CRU ASSY AD.

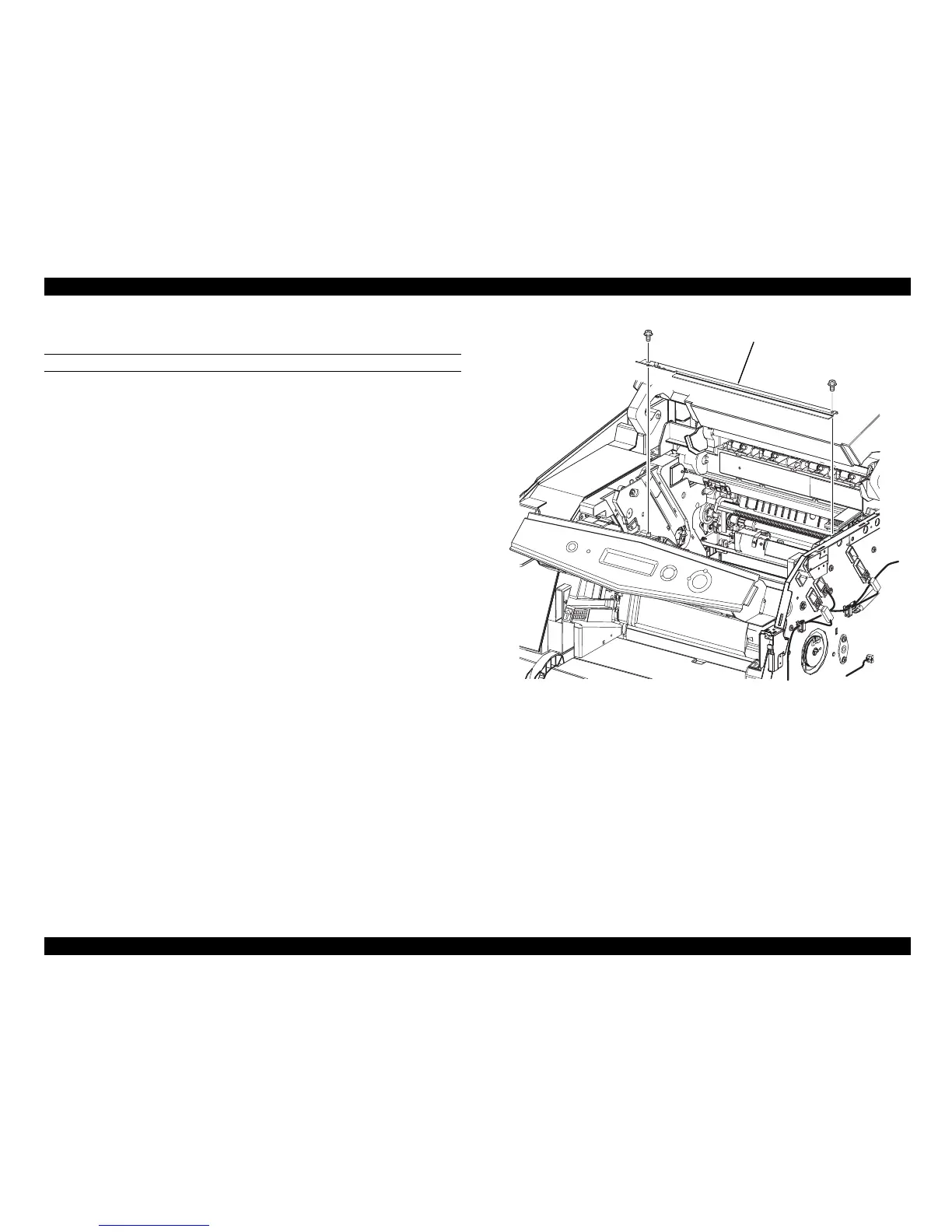

Figure 4-78. Removal of GUIDE CRU ASSY AD (1)
Leg_Sec03_081EB
6)
7)
6)
