EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY XERO 374
4.6.10 SENSOR TNER FULL
REMOVAL
1. Remove FRAME ASSY-PH. (p.327)
2. Disconnect connector (P/J126) from SENSOR TNER FULL.
3. Unhook the two hooks fastening SENSOR TNER FULL to the main unit, and
remove SENSOR TNER FULL.
REINSTALLATION
1. Match the hook on SENSOR TNER FULL with the attachment position, and
attach to the main unit.
2. Connect connector (P/J126) to SENSOR TNER FULL.
3. Attach FRAME ASSY-PH. (p.327)

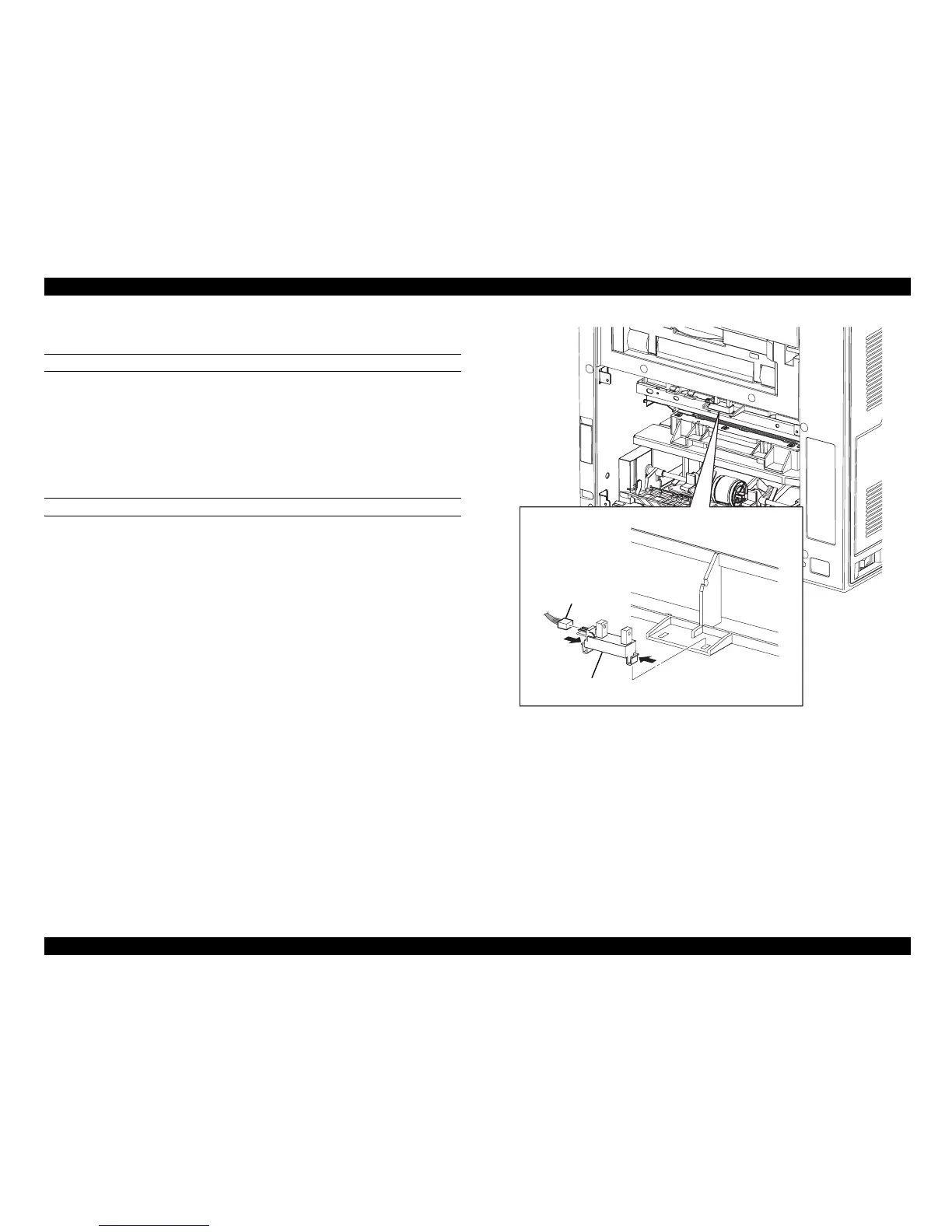

Figure 4-85. Removal of SENSOR TNER FULL
Leg_Sec03_183EB
3)-2
3)-1
3)-1
2)
