EPSON AcuLaser C1100 Revision B
DISASSEMBLY AND ASSEMBLY MSI 306
4.3.2 ROLL ASSY MSI
REMOVAL
1. Remove COVER ASSY RH. (p.301)
2. Remove COVER ASSY LH. (p.295)
3. Remove COVER MSI. (p.291)
4. Remove COVER FRONT L and COVER FRONT ASSY U. (p.292)
5. Remove FRAME ASSY-PH. (p.327)
6. Remove MSI ASSY. (p.304)
7. Remove SOLENOID PICK UP. (p.319)
8. Remove the left and right SPRING-N/F MSI hooked on the left and right
BEARING MSI from MSI ASSY.
9. Remove the E-rings fastening the left and right CAM PICK UP MSI on SHAFT
ASSY MSI from MSI ASSY.
10. Match the notch of CAM PICK UP MSI with the positioning pin of SHAFT ASSY
MSI, and slide the left and right CAM PICK UP MSI to the inside.
11. Match the notch of BEARING MSI with the positioning pin of SHAFT ASSY
MSI, and slide the left and right BEARING MSIs to the inside from the left and
right holes of MSI ASSY.
12. Temporarily slide ROLL ASSY MSI to the left, and draw out the shaft of ROLL
ASSY MSI from the right-side bearing of MSI ASSY to remove ROLL ASSY
MSI.

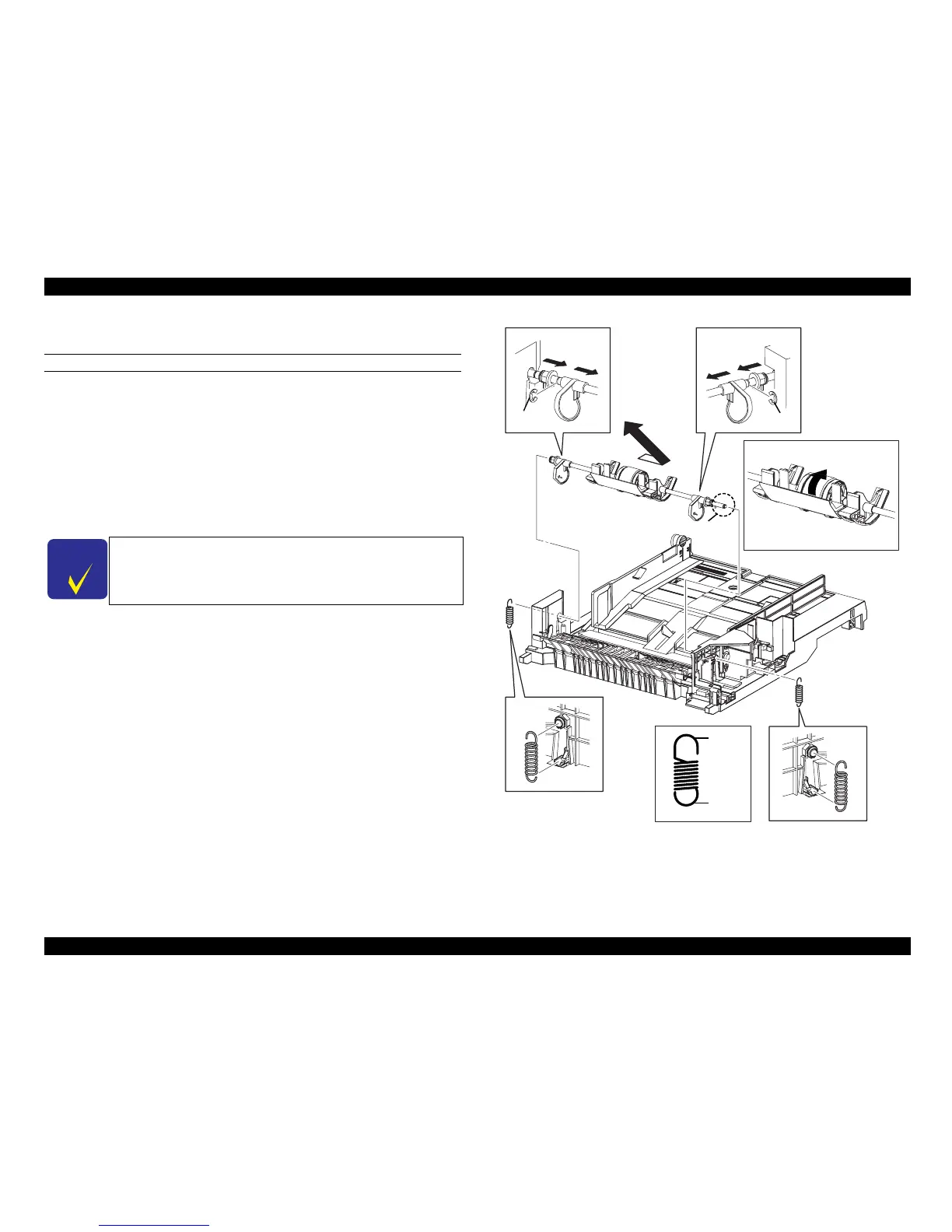

Figure 4-25. Removal of ROLL ASSY MSI
C H E C K
P O I N T
When performing the following work, work can be performed more
easily by turning ROLL ASSY MSI in the direction of the arrow to
release CAM PICK UP MSI and to set PLATE BOTTOM ASSY
MSI to a raised state.
CAUTION
CAUTION
Leg_Sec03_054FB
CAUTION
CHECK POINT
11)
10)
10)
11)
9)
9)
8)
12)
D cut surface
Oval
side
Semi-
circular
side
8)
To Next Page
